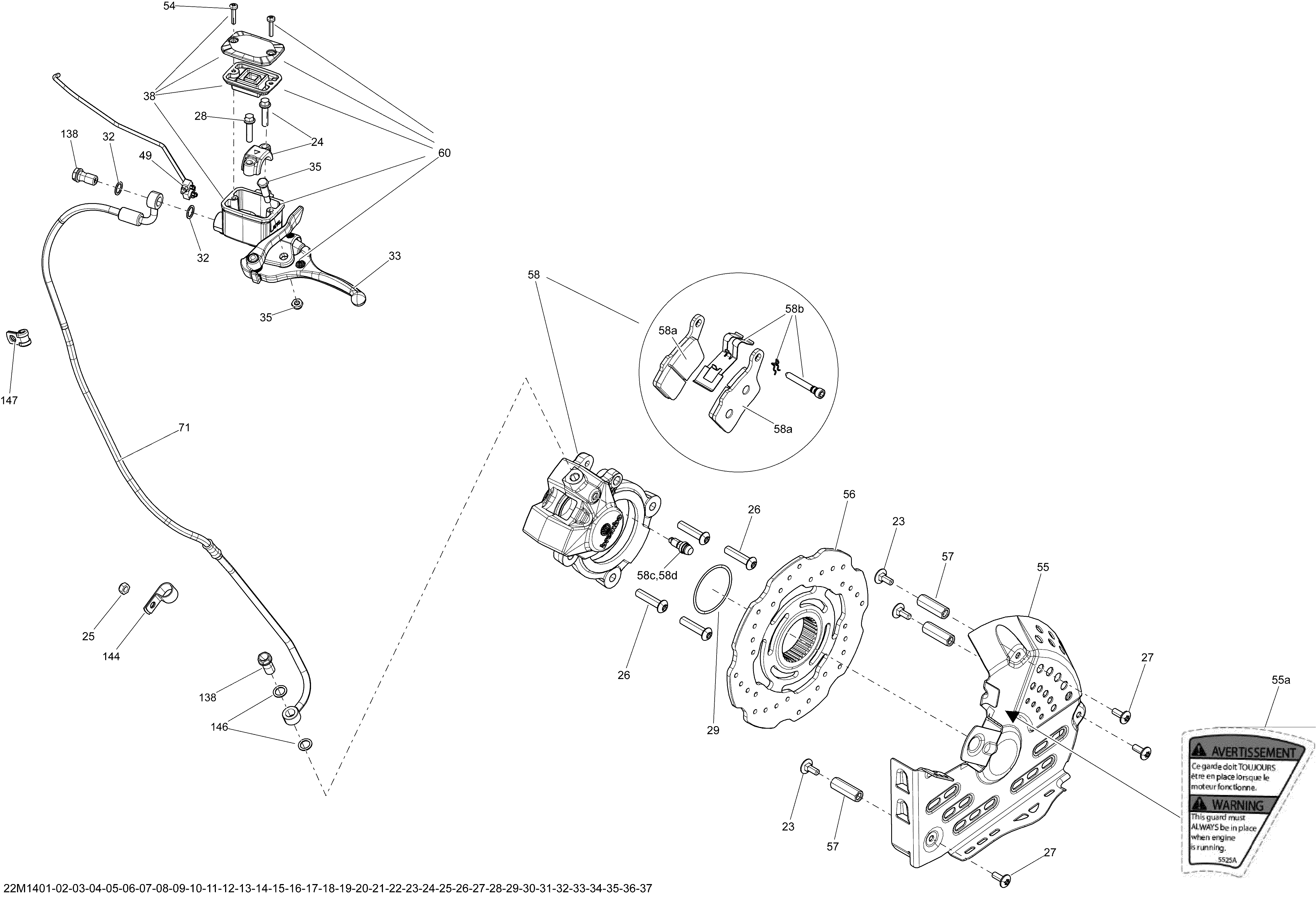

06- Hydraulic Brakes для BRP Ski-Doo TUNDRA XTREME 600HOE XU - 2014
-
№АртикулНазвание
-
23207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
24507032477 Clamp And Screw KitClamp And Screw Kit
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
27250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
28250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
29293300134 O-RingO-Ring
-
32705600310 Copper WasherCopper Washer
-
33507032476 LeverLever
-
35415030000 Pin Ass'yPin Ass'y
-
38507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
49507032479 MicroswitchMicroswitch
-
54415129356 Screw M4 X 20Screw M4 X 20
-
55507032446 Disk Protector, AluminumDisk Protector, Aluminum
-
56507032487 DiskDisk
-
57507032497 Threaded TubeThreaded Tube
-
58507032498 Brake Caliper Ass'yBrake Caliper Ass'y
-
60507032518 Master Cylinder Ass'yMaster Cylinder Ass'y
-
71507032540 HoseHose
-
138507032539 Banjo BoltBanjo Bolt
-
144518321570 Open ClampOpen Clamp
-
146705600310 Copper WasherCopper Washer
-
147715900250 Hose ClipHose Clip
-
55a516005525 Warning DecalWarning Decal
-
58a507032473 Brake Pads KitBrake Pads Kit
-
58b507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
58c507032475 BleederBleeder
-
58d414989700 BootBoot
