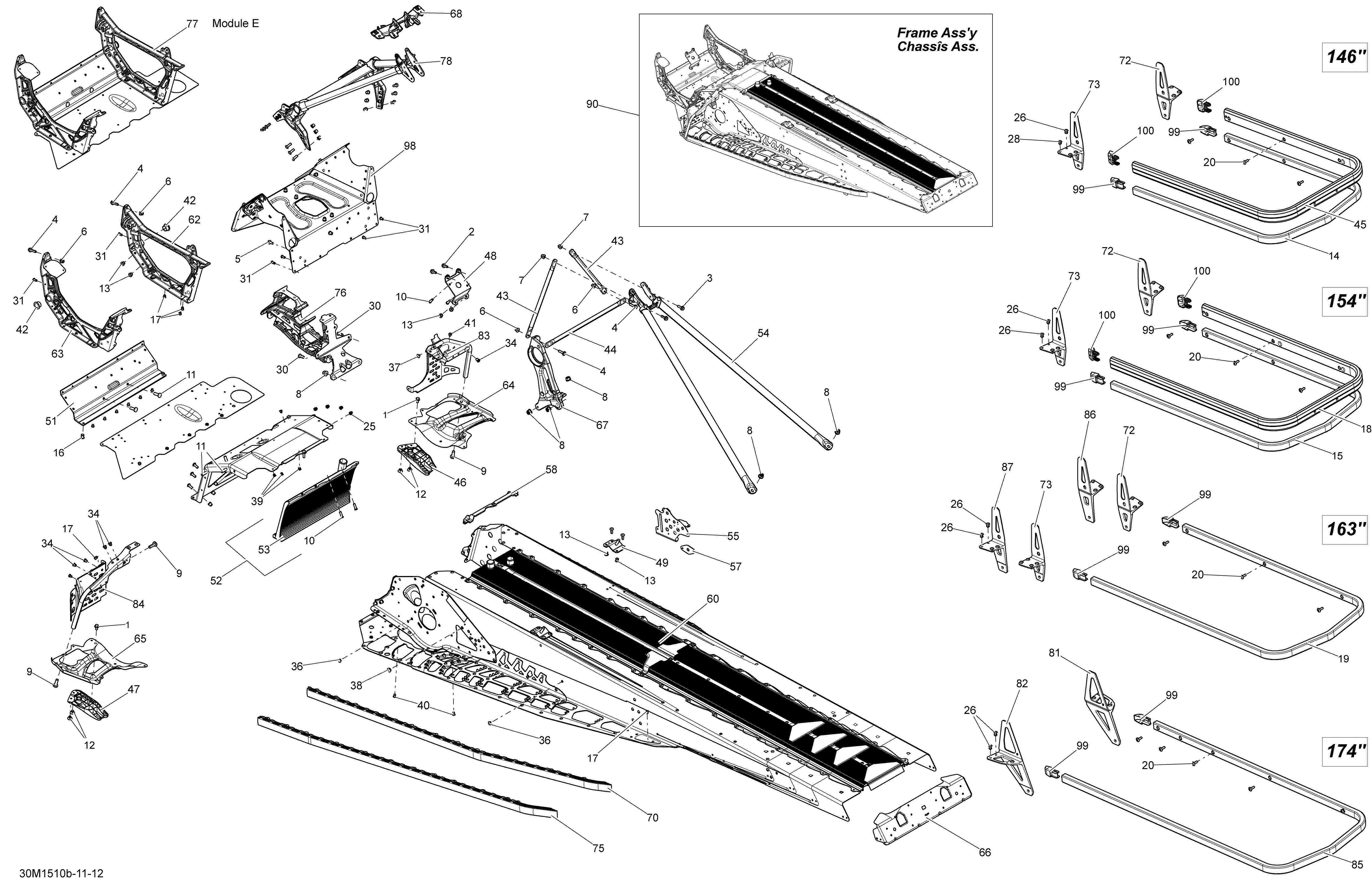

09- Frame 146, 154 _30M1510b для BRP Ski-Doo Freeride 800RETEC XM-RS, 146 - 2015
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
10250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
11250300038 Clinch StudClinch Stud
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
14518326599 Black Rear Bumper, 146''Black Rear Bumper, 146''
-
15518326049 Black Rear Bumper, 154''Black Rear Bumper, 154''
-
16293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
17293150144 Stavex RivetStavex Rivet
-
20250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
25293150146 Henrob RivetHenrob Rivet
-
26293150147 Hemlock RivetHemlock Rivet
-
28293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
30293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
31293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
34293450268 InsertInsert
-
36293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
37293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
38293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
39390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
40390909100 Avex RivetAvex Rivet
-
41390909200 Avex RivetAvex Rivet
-
42505073317 Leg CushionLeg Cushion
-
43518325114 Upper Column SupportUpper Column Support
-
44518325115 Center Column SupportCenter Column Support
-
45518326611 Black Rear Bumper, 154''Black Rear Bumper, 154''
-
45518327664 Black Rear Bumper, 146''Black Rear Bumper, 146''
-
46518325782 RH DeflectorRH Deflector
-
47518325783 LH DeflectorLH Deflector
-
48518325943 MAG Engine SupportMAG Engine Support
-
49518325973 RH Rear BaseRH Rear Base
-
49518325974 LH Rear BaseLH Rear Base
-
51518326198 Front MemberFront Member
-
52518326485 Front RadiatorFront Radiator
-
53518326486 Front RadiatorFront Radiator
-
54518326559 Rear MemberRear Member
-
55518326616 RH Front RetainerRH Front Retainer
-
55518326617 LH Front RetainerLH Front Retainer
-
58518326656 SealSeal
-
60518326728 Rear Radiator Ass'y, 146''. Model 146''Rear Radiator Ass'y, 146''. Model 146''
-
60518326692 Rear Radiator Ass'y, 154''. Model 154''Rear Radiator Ass'y, 154''. Model 154''
-
62518326795 RH MemberRH Member
-
63518326796 LH MemberLH Member
-
64518326937 RH ReinforcementRH Reinforcement
-
65518326938 LH ReinforcementLH Reinforcement
-
66518327105 Rear CapRear Cap
-
67518327460 Pulley SupportPulley Support
-
68518327145 Sub A SupportSub A Support
-
70518327200 RH RollerRH Roller
-
70518327201 LH RollerLH Roller
-
72518327470 RH Suspension BracketRH Suspension Bracket
-
73518327471 LH Suspension BracketLH Suspension Bracket
-
76518327487 Front Suspension Support. Included With 518328320 S ModuleFront Suspension Support. Included With 518328320 S Module
-
77518327567 Front E ModuleFront E Module
-
78518327565 Front MemberFront Member
-
83518327841 RH StirupRH Stirup
-
84518327937 LH StirupLH Stirup
-
90415129921 Green Frame Ass'y 146''Green Frame Ass'y 146''
-
90415129922 Green Frame Ass'y 154''Green Frame Ass'y 154''
-
98518328322 Cross Member S Module. Include 518327487Cross Member S Module. Include 518327487
-
99520000840 Black CapBlack Cap
-
100520000965 Black RH CapBlack RH Cap
-
100520000964 Black LH CapBlack LH Cap
