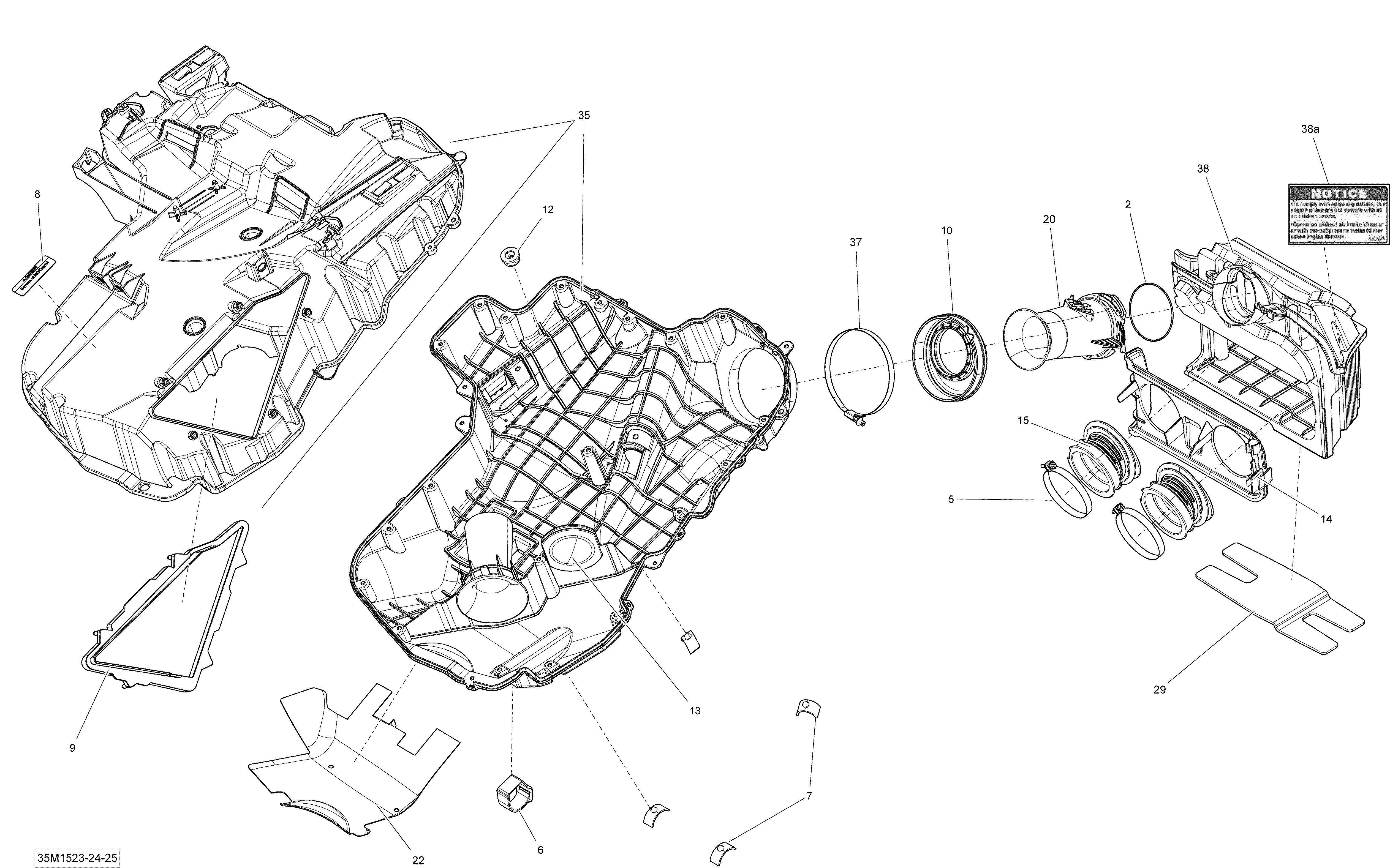

02- Air Intake System _35M1523 для BRP Ski-Doo GSX SE 600HOETEC XR137 - 2015
-
№АртикулНазвание
-
2293300115 O-RingO-Ring
-
5508000346 Gemi ClampGemi Clamp
-
6508000532 Velcro StripVelcro Strip
-
7508000537 StopperStopper
-
8516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
9508000546 Air FilterAir Filter
-
10508000548 BootBoot
-
12508000574 GrommetGrommet
-
13508000590 CapCap
-
14508000613 Plate AdapterPlate Adapter
-
15508000614 Air Intake AdapterAir Intake Adapter
-
20508000662 FluteFlute
-
22508000793 Heat ShieldHeat Shield
-
29508000739 Insulated FoamInsulated Foam
-
35508000779 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
37514052983 Norma Gear ClampNorma Gear Clamp
-
38508000660 Primary Chamber Ass'yPrimary Chamber Ass'y
-
38a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
