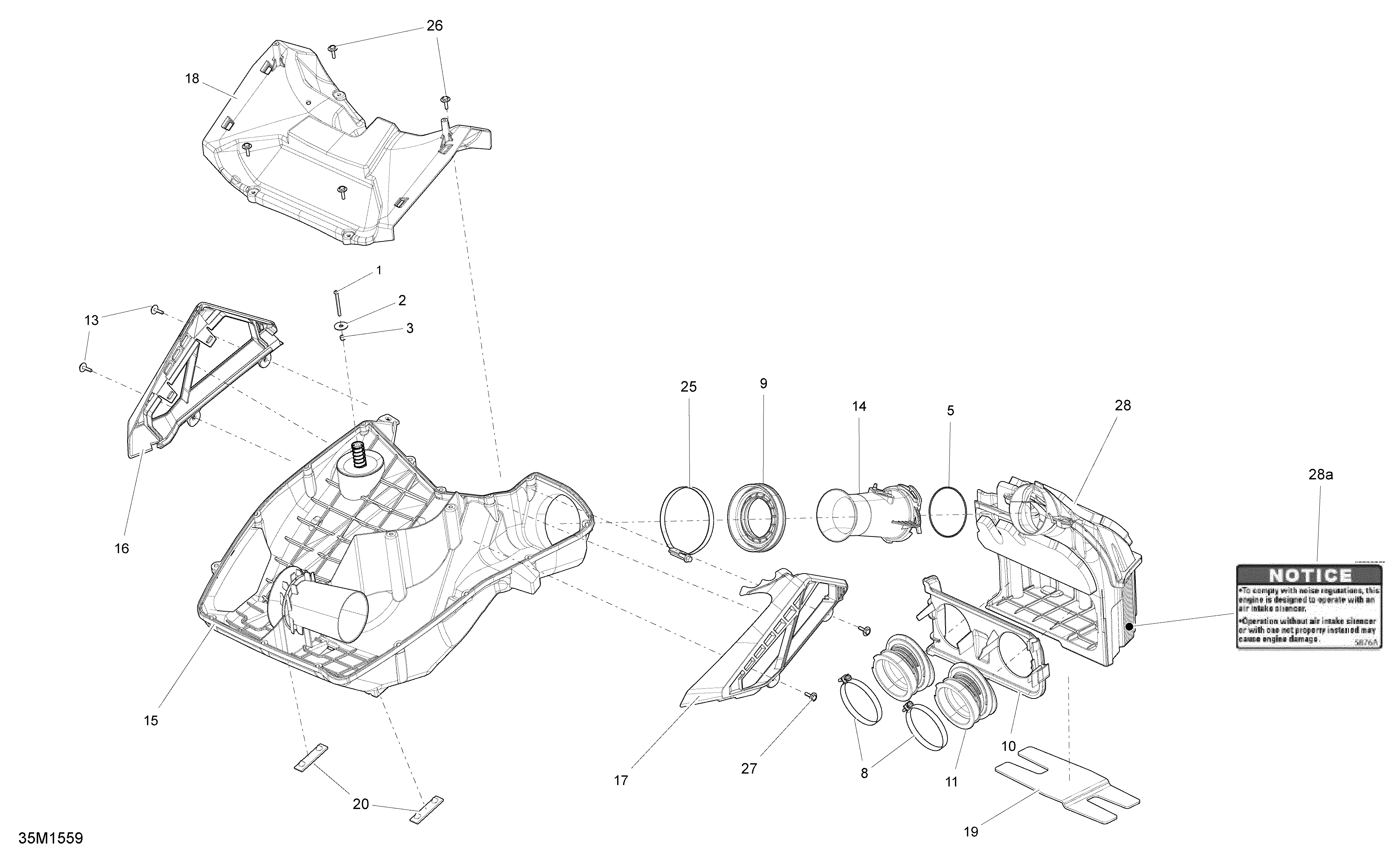

02- Air Intake System 800RETEC_35M1559 для BRP Ski-Doo MXZ IRON DOG 800R E-TEC - 2015
-
№АртикулНазвание
-
1205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
2224060201 Flat WasherFlat Washer
-
3232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
5293300115 O-RingO-Ring
-
8508000346 Gemi ClampGemi Clamp
-
9508000567 BootBoot
-
10508000613 Plate AdapterPlate Adapter
-
11508000614 Air Intake AdapterAir Intake Adapter
-
13250000725 Screw M4 X 16Screw M4 X 16
-
14508000662 FluteFlute
-
15508000722 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
16508000730 RH Air FilterRH Air Filter
-
17508000731 LH Air FilterLH Air Filter
-
18508000732 Air DuctAir Duct
-
19508000739 Insulated FoamInsulated Foam
-
20508000744 StopperStopper
-
25514052924 Norma ClampNorma Clamp
-
26250000725 Screw M4 X 16Screw M4 X 16
-
27250000725 Screw M4 X 16Screw M4 X 16
-
28508000660 Primary Chamber Ass'y. Includes 28 to 28aPrimary Chamber Ass'y. Includes 28 to 28a
-
28a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
