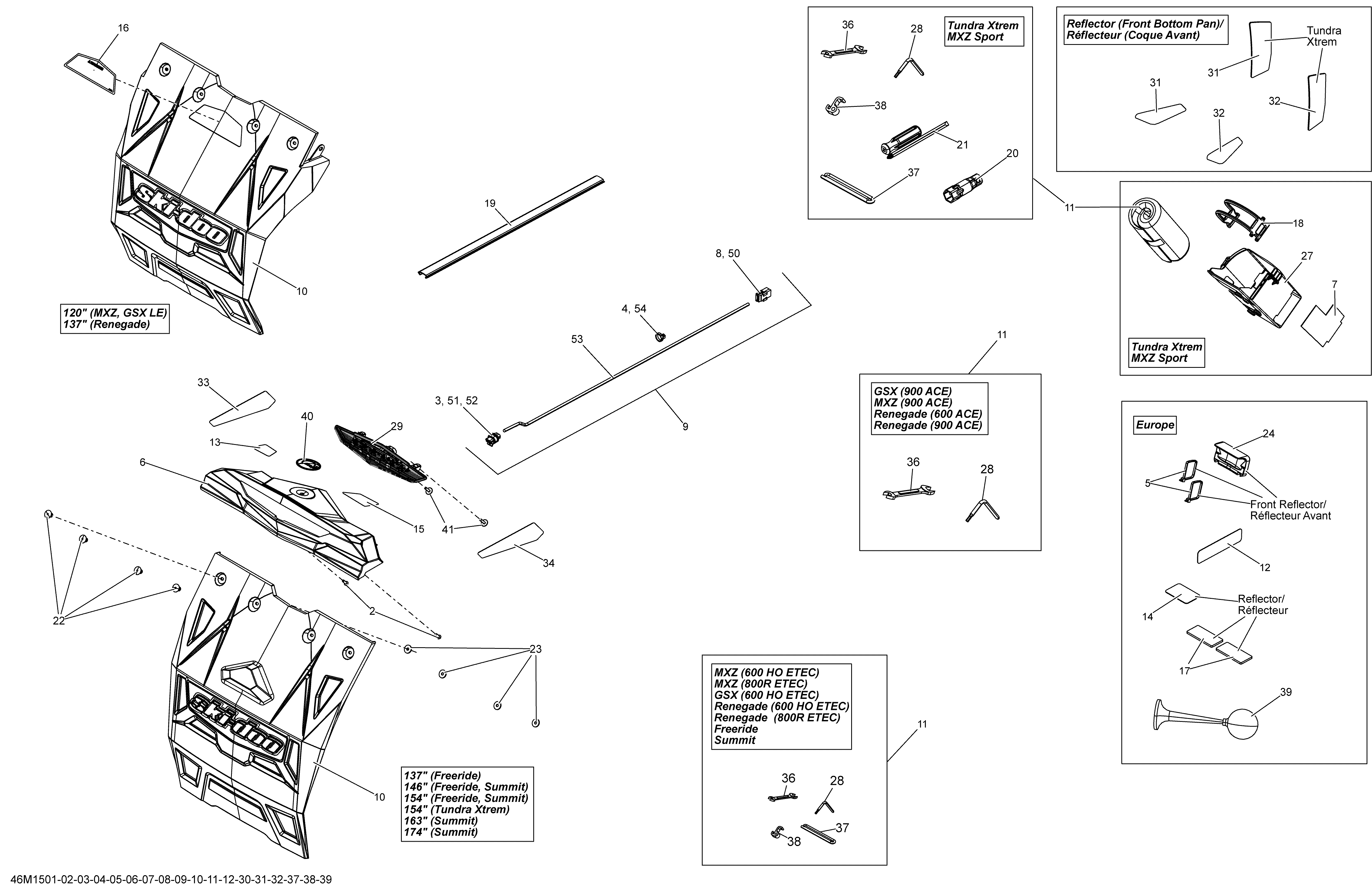

09- Utilities _46M1502 для BRP Ski-Doo MXZ X 800RETEC XS120 - 2015
-
№АртикулНазвание
-
2241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
3278002387 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
4293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
6511000810 Light FairingLight Fairing
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9515177275 Wiring Harness Ass'yWiring Harness Ass'y
-
10520001318 Snow GuardSnow Guard
-
11520001158 Tools KitTools Kit
-
13516006914 Warning Decal, SafetyWarning Decal, Safety
-
15516005058 Warning Decal, SafetyWarning Decal, Safety
-
16516005175 Warning Decal, TrackWarning Decal, Track
-
19520000829 Radiator TrimRadiator Trim
-
22293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517124300 WasherWasher
-
28520001142 Spacing ToolSpacing Tool
-
29520001143 Rear LightRear Light
-
31520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
32520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
33520001238 Red LH Rear ReflectorRed LH Rear Reflector
-
34520001239 Red RH Rear ReflectorRed RH Rear Reflector
-
36529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
37412500200 Starter Rope, MeterStarter Rope, Meter
-
38529000060 Starter GripStarter Grip
-
40219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
41250000725 Screw M4 X 16Screw M4 X 16
-
50515175232 Male TerminalMale Terminal
-
51710001153 Seal WireSeal Wire
-
52710000925 TerminalTerminal
-
53515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
54414115200 Tie-Rap 180 mmTie-Rap 180 mm
