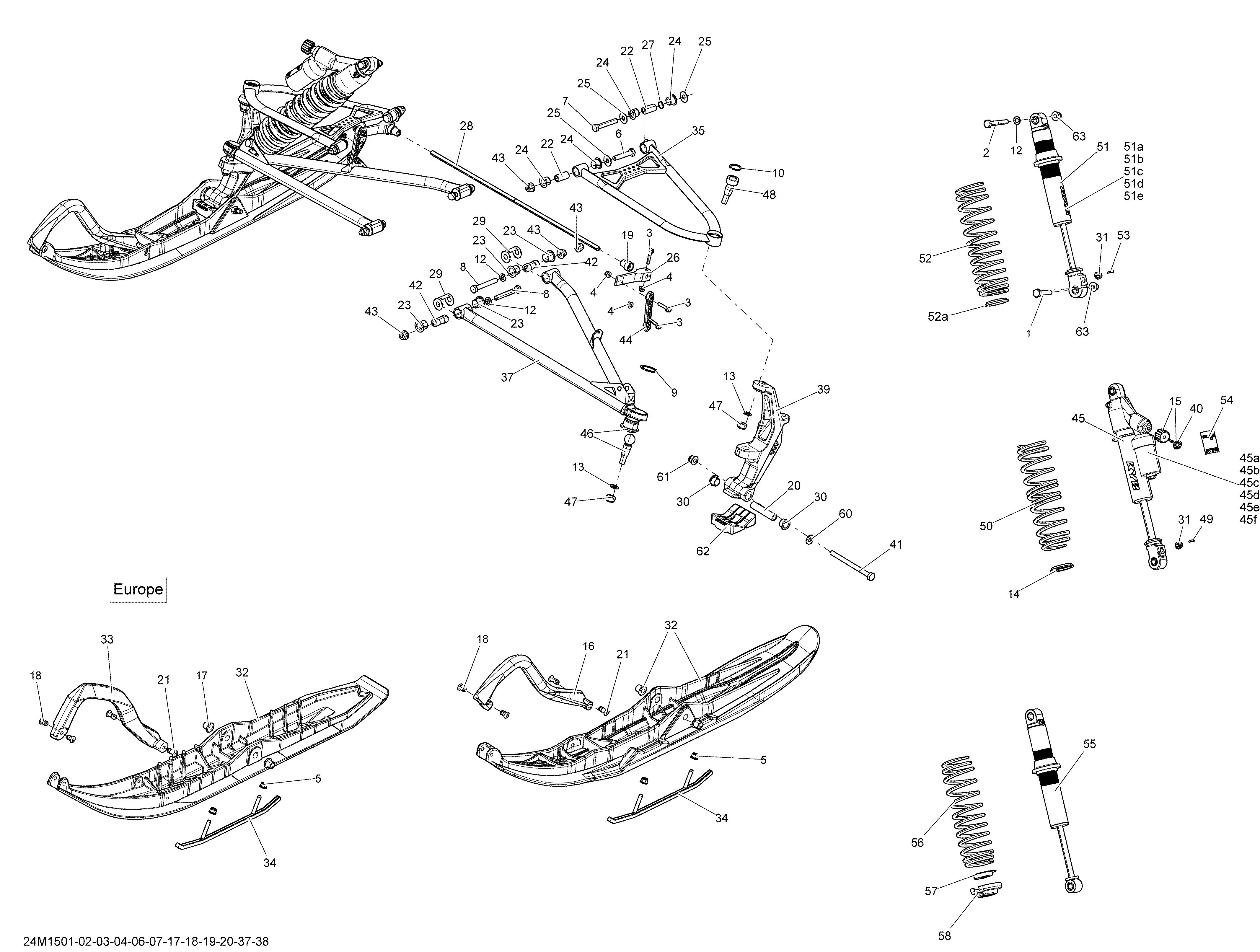

07- Front Suspension And Ski _24M1503 для BRP Ski-Doo MXZ XRS 800RETEC XS-RS120 - 2015
-
№АртикулНазвание
-
1207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
2207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
3207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
4233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
7250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
8250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
9293370035 CirclipCirclip
-
10293370070 CirclipCirclip
-
12503189564 WasherWasher
-
13503192491 WasherWasher
-
14503192608 Spring StopperSpring Stopper
-
15503193025 Adjustment Knob Ass'yAdjustment Knob Ass'y
-
16505070963 Black HandleBlack Handle
-
17505071781 CushionCushion
-
18505071812 RetainerRetainer
-
19505072064 BushingBushing
-
20506133300 SpacerSpacer
-
21505072133 RetainerRetainer
-
22505072143 BushingBushing
-
23505072208 BushingBushing
-
24505072250 BushingBushing
-
25505072392 WasherWasher
-
26505072394 Stabilisator LeverStabilisator Lever
-
27505072448 O-RingO-Ring
-
28505072602 StabilisatorStabilisator
-
29505072634 Wear PlateWear Plate
-
30505072690 Leg CushionLeg Cushion
-
31505072753 Adjustment KnobAdjustment Knob
-
32505073658 Yellow Sunburst DS Ski. Model-EuropeYellow Sunburst DS Ski. Model-Europe
-
32505072855 Deep Black RH Pilot Ski 5.7 Ass'y. Model-North America, Model-Black-BlackDeep Black RH Pilot Ski 5.7 Ass'y. Model-North America, Model-Black-Black
-
32505073576 Yellow Sunburst RH Pilot Ski 5.7 Ass'y. Model-North America, Model-Red-RedYellow Sunburst RH Pilot Ski 5.7 Ass'y. Model-North America, Model-Red-Red
-
32505072854 Deep Black LH Pilot Ski 5.7 Ass'y. Model-North America, Model-Black-BlackDeep Black LH Pilot Ski 5.7 Ass'y. Model-North America, Model-Black-Black
-
32505073575 Yellow Sunburst LH Pilot Ski 5.7 Ass'y. Model-North America, Model-Red-RedYellow Sunburst LH Pilot Ski 5.7 Ass'y. Model-North America, Model-Red-Red
-
33505072976 Black Handle. Model-EuropeBlack Handle. Model-Europe
-
34860201044 Carbide Runner KitCarbide Runner Kit
-
36505073412 LH Upper Arm 42''LH Upper Arm 42''
-
36505073416 RH Upper Arm 42''RH Upper Arm 42''
-
37505073420 LH Lower Arm 42''LH Lower Arm 42''
-
37505073426 RH Lower Arm 42''RH Lower Arm 42''
-
39505073471 Fusion Red LH Ski LegFusion Red LH Ski Leg
-
39505073473 Fusion Red RH Ski LegFusion Red RH Ski Leg
-
40516004752 Shock Knob Adjustment DecalShock Knob Adjustment Decal
-
41250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
42505072209 BushingBushing
-
43250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
44505072204 Double Ball Joint LinkDouble Ball Joint Link
-
45505073613 RH Front Shock. Includes 45 To 45fRH Front Shock. Includes 45 To 45f
-
45505073612 LH Front Shock. Includes 45 To 45fLH Front Shock. Includes 45 To 45f
-
45a415093807 O-RingO-Ring
-
45b415093806 Piston RingPiston Ring
-
45c505070398 Air ValveAir Valve
-
45d505070399 ScrewScrew
-
45e505070400 O-RingO-Ring
-
45f415093804 O-RingO-Ring
-
46505072682 Lower Ball JointLower Ball Joint
-
47232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
48505072913 Upper Ball JointUpper Ball Joint
-
49250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
50505072760 Deep Black SpringDeep Black Spring
-
54516005534 Shock Adjustment DecalShock Adjustment Decal
-
60503192496 WasherWasher
-
61233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
62505072594 Ski StopperSki Stopper
-
63233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
