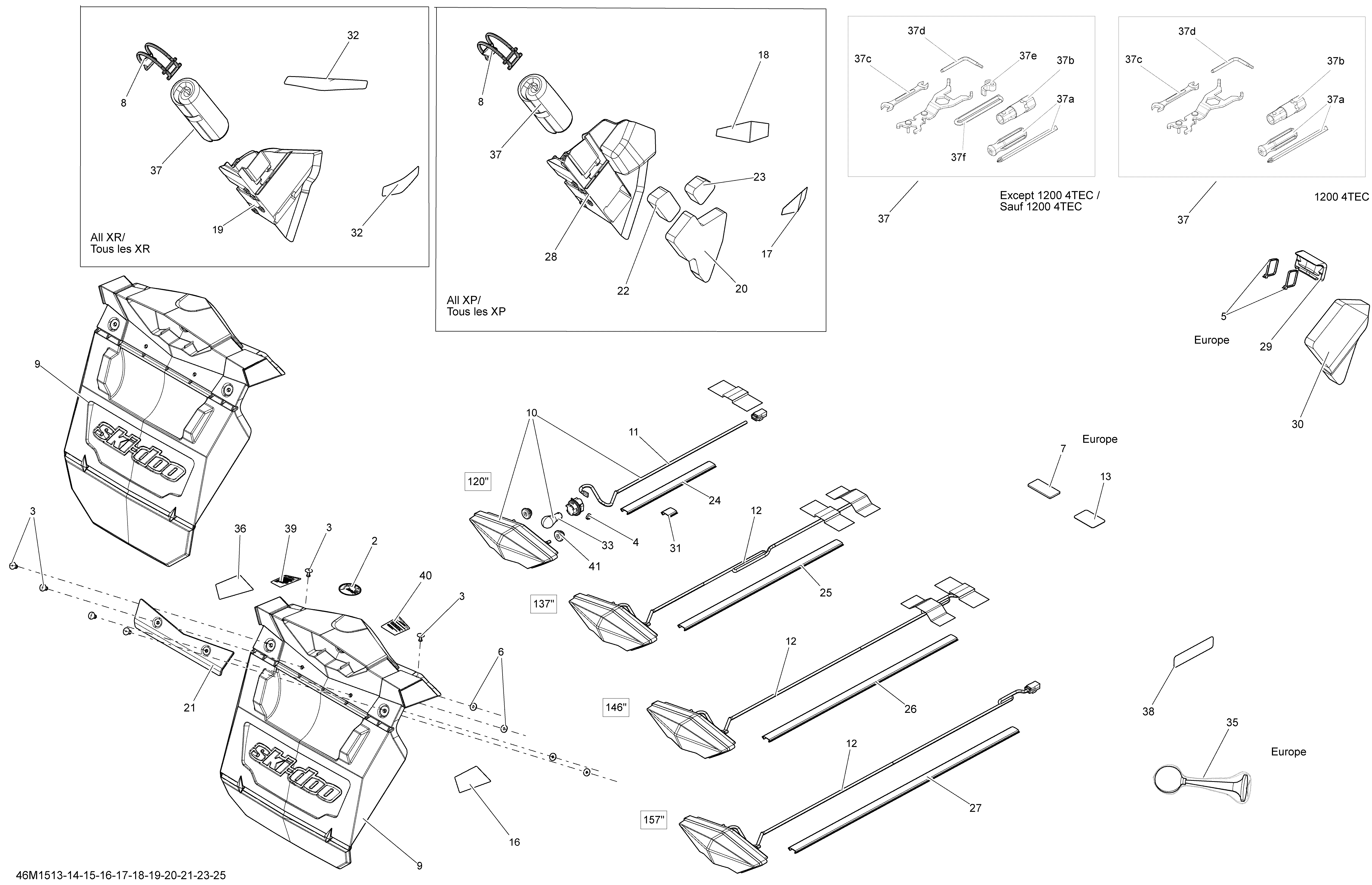

09- Utilities _46M1514 для BRP Ski-Doo Renegade Sport 600 XP137 - 2015
-
№АртикулНазвание
-
2219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
6517124300 WasherWasher
-
8520000528 LatchLatch
-
9520000704 Snow GuardSnow Guard
-
11520000680 Wiring Harness Ass'yWiring Harness Ass'y
-
12520000679 Rear Light Ass'yRear Light Ass'y
-
16520001162 Red RH Rear ReflectorRed RH Rear Reflector
-
17520000718 Yellow RH Front ReflectorYellow RH Front Reflector
-
18520000719 Yellow LH Front ReflectorYellow LH Front Reflector
-
20520001059 FoamFoam
-
21520000751 ReinforcementReinforcement
-
22520001061 FoamFoam
-
23520001062 FoamFoam
-
25520000829 Radiator TrimRadiator Trim
-
28520000842 Tool Kit RackTool Kit Rack
-
33520000758 BulbBulb
-
36520001161 Red LH Rear ReflectorRed LH Rear Reflector
-
37529000077 Tool Kit. Includes 37 To 37fTool Kit. Includes 37 To 37f
-
37a529000004 Screw DriverScrew Driver
-
37b529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
37c529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
37D520001142 Spacing ToolSpacing Tool
-
37e529000060 Starter GripStarter Grip
-
37f412500200 Starter Rope, MeterStarter Rope, Meter
-
39516005590 Warning Decal, TrackWarning Decal, Track
-
40516005591 Warning Decal, CargoWarning Decal, Cargo
-
41705003666 Rubber GrommetRubber Grommet
