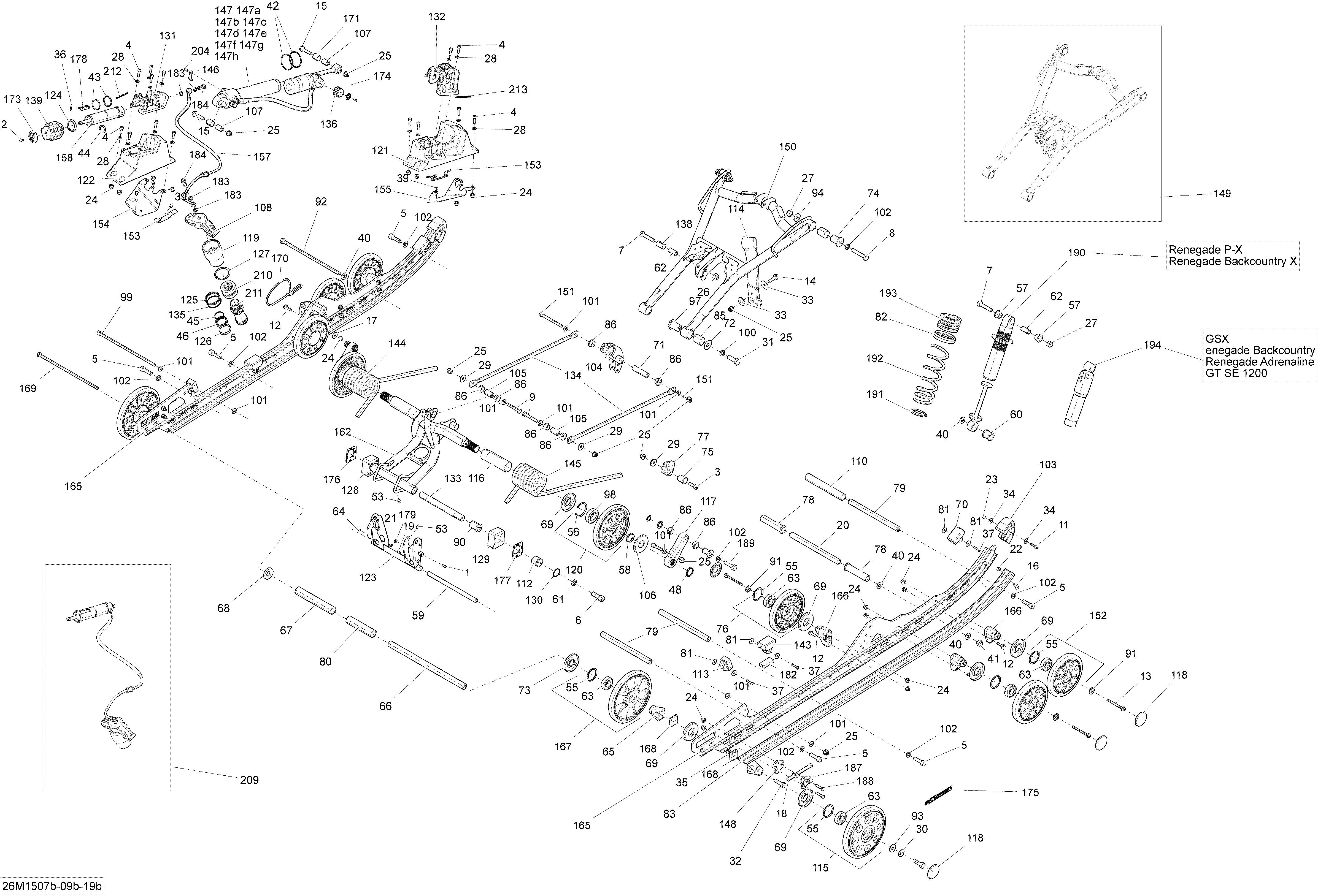

08- Rear Suspension rMotion Adjust System_26M1519b для BRP Ski-Doo Renegade X 1200 XR137 - 2015
-
№АртикулНазвание
-
1205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
2205041284 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
3205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
4205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
5205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
6205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
7207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
8207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
9207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
11207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
12207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
13207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
14207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
15207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
16208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
17224061201 Flat WasherFlat Washer
-
18230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
19232061404 Hexagonal NutHexagonal Nut
-
20503193435 Pivot AxlePivot Axle
-
21232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
22232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
26233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
27233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
28234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
29234082410 Flat Washer 8 mmFlat Washer 8 mm
-
30234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
31250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
32250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
33250200128 Flat Washer 8 mmFlat Washer 8 mm
-
34250200140 WasherWasher
-
36250400014 Spring PinSpring Pin
-
37293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
39293150144 Stavex RivetStavex Rivet
-
40250200143 Flat WasherFlat Washer
-
41233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
42293250085 O-RingO-Ring
-
43293250269 O-RingO-Ring
-
44293300036 O-RingO-Ring
-
45293300039 O-RingO-Ring
-
46293300068 O-RingO-Ring
-
48293370080 Retaining RingRetaining Ring
-
53408200700 Grease FittingGrease Fitting
-
55415129371 Retaining RingRetaining Ring
-
56415129780 Retaining RingRetaining Ring
-
57503189117 CushionCushion
-
58503189146 Axle SpringAxle Spring
-
59503189156 Pivot Arm AxlePivot Arm Axle
-
60503189271 CushionCushion
-
61503189276 WasherWasher
-
62503189282 BushingBushing
-
63503190396 Ball BearingBall Bearing
-
64390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
65503190428 Rear Wheel SpacerRear Wheel Spacer
-
66503190429 Rear AxleRear Axle
-
67503190430 SpacerSpacer
-
68503190432 WasherWasher
-
69503190434 Labyrinth SealLabyrinth Seal
-
70503190576 Rubber StopperRubber Stopper
-
71503190643 Axle Bar (Long)Axle Bar (Long)
-
72503190656 WasherWasher
-
73503190682 Labyrinth SealLabyrinth Seal
-
74503190698 AxleAxle
-
75503190754 Retainer CushionRetainer Cushion
-
76503191152 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
77503191183 Spring SupportSpring Support
-
78503191259 Center BushingCenter Bushing
-
79503191260 Axle StrapAxle Strap
-
81503191273 WasherWasher
-
82503191281 Spring SpacerSpring Spacer
-
83503191306 Black - Slider Shoe 137''Black - Slider Shoe 137''
-
85503191554 BushingBushing
-
86503191555 Swivel BushingSwivel Bushing
-
90503191640 CushionCushion
-
91503191820 Wheel Cup M6Wheel Cup M6
-
92503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
93503191910 WasherWasher
-
94503191926 WasherWasher
-
97503191966 Lower AxleLower Axle
-
98503191982 Ball BearingBall Bearing
-
99503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
100503192491 WasherWasher
-
101503192494 WasherWasher
-
102503192496 WasherWasher
-
103503192530 Slide ProtectorSlide Protector
-
104503192531 RockerRocker
-
105503192555 Axle BarAxle Bar
-
106503192592 Labyrinth RingLabyrinth Ring
-
107503192606 Rear Shock AxleRear Shock Axle
-
108503192633 Spring BracketSpring Bracket
-
110503192678 SpacerSpacer
-
112503192749 Guide BlockGuide Block
-
113503192750 Rubber StopperRubber Stopper
-
114503192759 Stopper StrapStopper Strap
-
115503192766 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
116503192767 BushingBushing
-
117503193069 Link Ass'yLink Ass'y
-
118503192771 Black Wheel CapBlack Wheel Cap
-
119503192795 CylinderCylinder
-
120503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
121503192810 RH SupportRH Support
-
122503192811 LH SupportLH Support
-
123503192823 Pivot Arm Ass'yPivot Arm Ass'y
-
124503192825 SealSeal
-
125503192832 O-RingO-Ring
-
126503192833 Wear RingWear Ring
-
127503192834 Retaining RingRetaining Ring
-
128503192918 LH Cam BlockLH Cam Block
-
129503192919 RH Cam BlockRH Cam Block
-
130503192921 O-RingO-Ring
-
131503192956 LH Half HousingLH Half Housing
-
132503192957 RH Half-HousingRH Half-Housing
-
133503192981 Lower ShaftLower Shaft
-
134503193005 Link RodLink Rod
-
135503193014 O-RingO-Ring
-
136503193025 Adjustment Knob Ass'yAdjustment Knob Ass'y
-
138503193037 BushingBushing
-
139503193056 Knob Adjuster Ass'yKnob Adjuster Ass'y
-
143503193101 Rubber StopperRubber Stopper
-
144503192105 Black LH Spring, Square. EuropeBlack LH Spring, Square. Europe
-
144503193158 Black LH Spring, Square. North AmericaBlack LH Spring, Square. North America
-
145503192104 Black RH Spring, SquareBlack RH Spring, Square
-
145503193159 Black RH Spring, SquareBlack RH Spring, Square
-
146503193166 PlatePlate
-
147503193177 Rear Shock Ass'y. Includes 147 To 147hRear Shock Ass'y. Includes 147 To 147h
-
147a415038700 O-RingO-Ring
-
147b415093810 BoltBolt
-
147c415093804 O-RingO-Ring
-
147d505070400 O-RingO-Ring
-
147e505070399 ScrewScrew
-
147f505070398 Air ValveAir Valve
-
147g415093806 Piston RingPiston Ring
-
147h415093807 O-RingO-Ring
-
148503193250 SpacerSpacer
-
149503193264 Front Arm Ass'yFront Arm Ass'y
-
150503193265 Front ArmFront Arm
-
151503193372 Screw M8 X 90Screw M8 X 90
-
152503193376 Deep Black Wheel Ass'y, 147 mmDeep Black Wheel Ass'y, 147 mm
-
153503193413 PlatePlate
-
154503193437 LH Hose ProtectorLH Hose Protector
-
155503193438 RH Hose ProtectorRH Hose Protector
-
157503193476 Connector HoseConnector Hose
-
158503193490 Master Cylinder Ass'yMaster Cylinder Ass'y
-
162503193618 Rear Arm Ass'yRear Arm Ass'y
-
165503193552 Black Runner 137''Black Runner 137''
-
166503193894 Casted SupportCasted Support
-
167503194050 Deep Black Wheel Ass'y, 180 mmDeep Black Wheel Ass'y, 180 mm
-
170503194113 ProtectorProtector
-
171505072663 Leg CushionLeg Cushion
-
173516004751 Sticker Knob AdjusterSticker Knob Adjuster
-
174516004752 Shock Knob Adjustment DecalShock Knob Adjustment Decal
-
175516004755 Runner DecalRunner Decal
-
176516004900 LH Block Sticker DecalLH Block Sticker Decal
-
177516004901 RH Block Sticker DecalRH Block Sticker Decal
-
178516004917 Adjustment DecalAdjustment Decal
-
179517225900 Flat WasherFlat Washer
-
182572084800 Reinforcement StopperReinforcement Stopper
-
183705600310 Copper WasherCopper Washer
-
184705600628 Banjo BoltBanjo Bolt
-
187503192583 TensionerTensioner
-
188207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
189207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
190503193536 Central ShockCentral Shock
-
191503192608 Spring StopperSpring Stopper
-
192503193160 Black Spring (189MM Long)Black Spring (189MM Long)
-
193503193837 Black Spring (Short)Black Spring (Short)
-
194503193283 Central ShockCentral Shock
-
200250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
204205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
209503193777 Hydraulic Adjuster Ass'yHydraulic Adjuster Ass'y
-
210503193778 Actuator Ass'yActuator Ass'y
-
211503193779 PistonPiston
-
212516006369 DecalDecal
-
213516006369 DecalDecal
