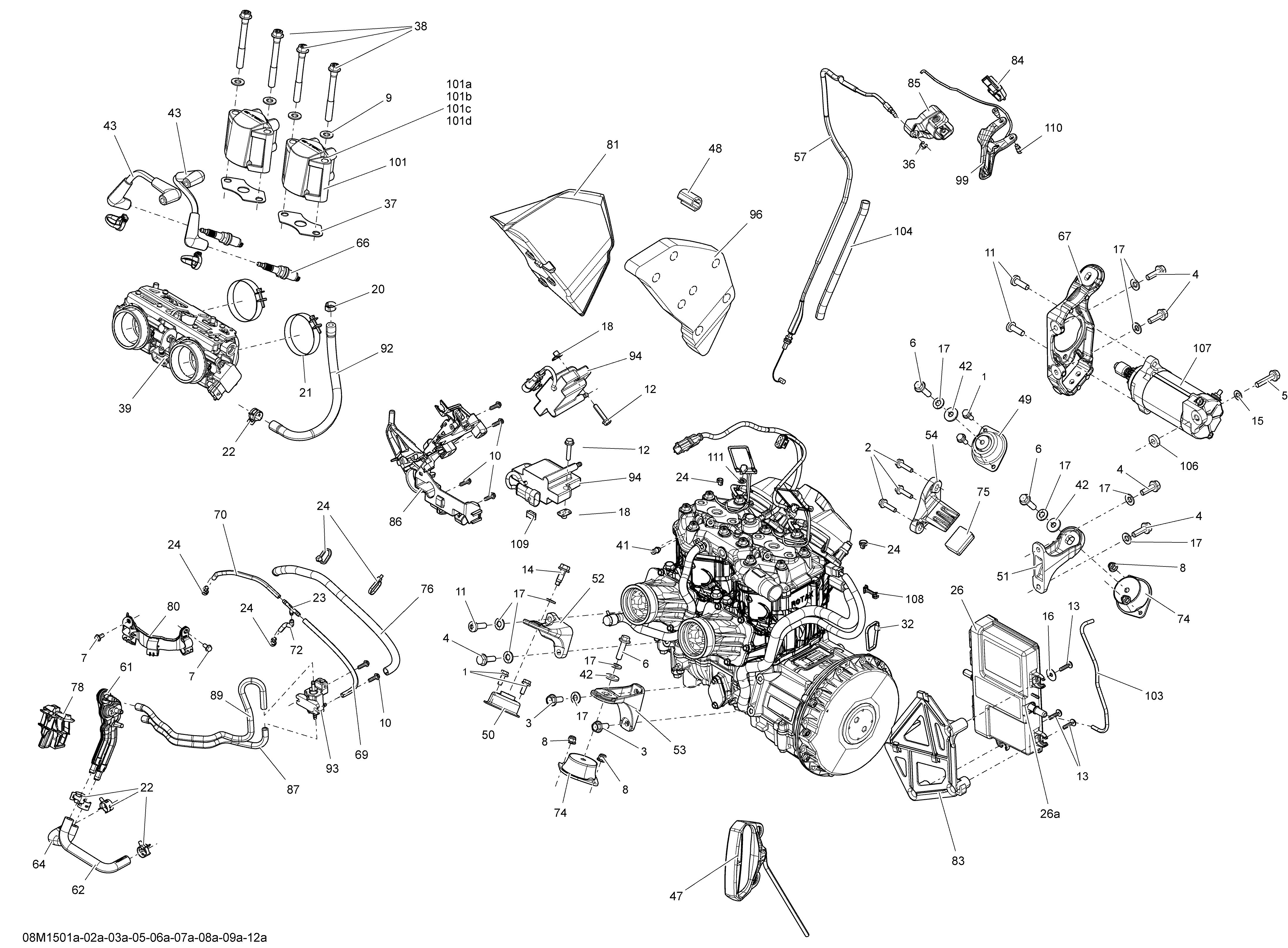

01- Engine 600HOETEC_08M1507a для BRP Ski-Doo Renegade X 600HOETEC, XS137 - 2015
-
№АртикулНазвание
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
5207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
6207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
7210251180 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9234001410 Flat Washer 10 mmFlat Washer 10 mm
-
10241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
11250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
12250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
13250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
14250000570 Hex. Screw M8Hex. Screw M8
-
15250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
16250200040 Flat WasherFlat Washer
-
17250200146 Conical Spring Washer M8Conical Spring Washer M8
-
18293100003 Nut M6Nut M6
-
20293650046 Oetiker ClampOetiker Clamp
-
21293650158 Gemi ClampGemi Clamp
-
22293650214 Norma Spring ClampNorma Spring Clamp
-
23293710068 T-FittingT-Fitting
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293650234 Crimp ClampCrimp Clamp
-
26512060997 Calibrated Module. Includes 26 To 26aCalibrated Module. Includes 26 To 26a
-
26a512060780 Calibrated ModuleCalibrated Module
-
32293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
36414274500 CirclipCirclip
-
37420430930 GasketGasket
-
38420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
39420889197 Throttle BodyThrottle Body
-
41420924724 Hose NippleHose Nipple
-
42503183200 Washer, YellowWasher, Yellow
-
43512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
48512060313 ProtectorProtector
-
49512060387 Rubber MountRubber Mount
-
50512060448 Rubber MountRubber Mount
-
51512060469 Front Support, MAGFront Support, MAG
-
52512060478 Rear Support, PTORear Support, PTO
-
53512060559 Rear Support, MAGRear Support, MAG
-
54512060576 Stopper SupportStopper Support
-
57512060668 Throttle CableThrottle Cable
-
61512060692 ManifoldManifold
-
62512060694 RH Formed HoseRH Formed Hose
-
64512060695 LH Formed HoseLH Formed Hose
-
66415129375 Spark PlugSpark Plug
-
67512060699 Front Support, PTOFront Support, PTO
-
69270000374 Hose 4.3 mmHose 4.3 mm
-
70270000374 Hose 4.3 mmHose 4.3 mm
-
72270000374 Hose 4.3 mmHose 4.3 mm
-
74512060729 Rubber MountRubber Mount
-
75512060627 StopperStopper
-
76409901700 Tubing 9 mmTubing 9 mm
-
78512060769 Manifold SupportManifold Support
-
80512060827 Hose SupportHose Support
-
81512060847 Noise ShieldNoise Shield
-
83512060858 Calibrated Module SupportCalibrated Module Support
-
84512060859 Upper HousingUpper Housing
-
85512060860 Lower HousingLower Housing
-
86512060888 SupportSupport
-
87415080200 Hose, PolyurethaneHose, Polyurethane
-
89415080200 Hose, PolyurethaneHose, Polyurethane
-
92512060944 Bleeder's Collector Outlet HoseBleeder's Collector Outlet Hose
-
93512060950 Solenoid ValveSolenoid Valve
-
94512060953 Ignition CoilIgnition Coil
-
96512060958 Inner Acoustic FoamInner Acoustic Foam
-
98512060993 ClampClamp
-
99512061051 Handle Ass'yHandle Ass'y
-
101512061053 Fuel Injector. Includes 101 To 101dFuel Injector. Includes 101 To 101d
-
101a415129497 Crush RingCrush Ring
-
101b415129498 O-RingO-Ring
-
101c415129499 O-RingO-Ring
-
101d415129942 Fuel Injector CoverFuel Injector Cover
-
103415080100 LineLine
-
104409901700 Tubing 9 mmTubing 9 mm
-
106515176500 WasherWasher
-
107515177389 StarterStarter
-
108515177770 LockerLocker
-
109710000992 ClipClip
-
110732601143 Flanged ScrewFlanged Screw
-
111732610072 Push NutPush Nut
