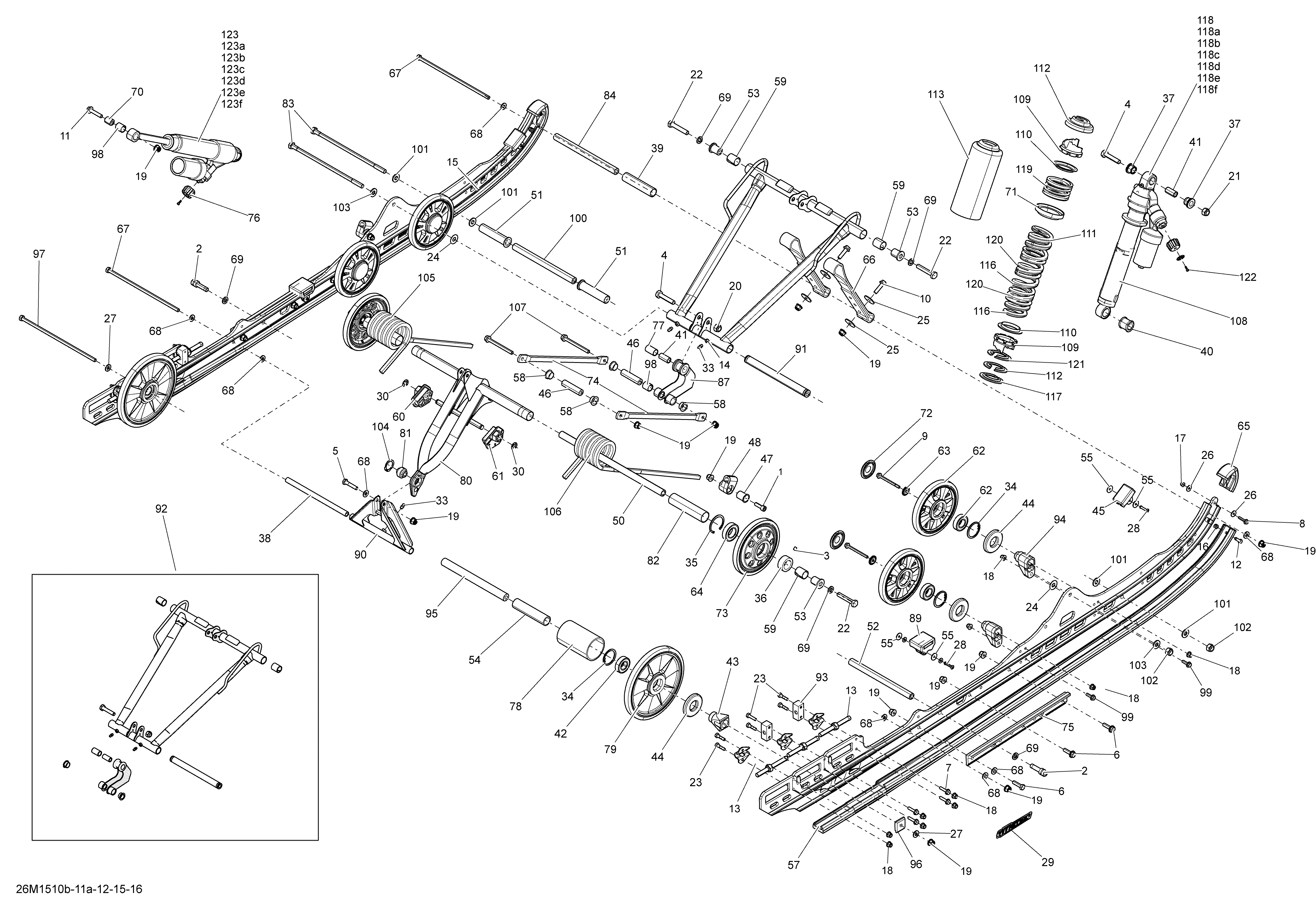

08- Rear Suspension 600HOETEC_26M1512 для BRP Ski-Doo Summit SP 600HOETEC XM-154 - 2015
-
№АртикулНазвание
-
1205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
2205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
3206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
4207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5207084056 Hexagonal Screw M8 X 40Hexagonal Screw M8 X 40
-
8207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
9207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
10207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
11207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
12208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
13230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
14232061404 Hexagonal NutHexagonal Nut
-
15503193827 Black Runner 146''. Model-Black-Black, 146''Black Runner 146''. Model-Black-Black, 146''
-
15503193828 Black Runner 154''. Model-Black-Black, 154''Black Runner 154''. Model-Black-Black, 154''
-
15503193833 Black Runner 163''. Model-Black-Black, 163''Black Runner 163''. Model-Black-Black, 163''
-
15503193936 White Runner 146''. Model-Red-Red, 146''White Runner 146''. Model-Red-Red, 146''
-
15503193938 White Runner 154''. Model-Red-Red, 154''White Runner 154''. Model-Red-Red, 154''
-
15503193940 White Runner 163''. Model-Red-Red, 163''White Runner 163''. Model-Red-Red, 163''
-
16232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
17233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
18233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
20233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
21233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
22250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
23250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
24250200032 WasherWasher
-
25250200128 Flat Washer 8 mmFlat Washer 8 mm
-
26250200140 WasherWasher
-
27250200159 Washer-Spring Conical M8Washer-Spring Conical M8
-
28293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
29516006381 Runner DecalRunner Decal
-
30293370013 E-CirclipE-Circlip
-
33408200700 Grease FittingGrease Fitting
-
34415129371 Retaining RingRetaining Ring
-
35415129780 Retaining RingRetaining Ring
-
36503168800 Retaining RingRetaining Ring
-
37503189117 CushionCushion
-
38503189156 Pivot Arm AxlePivot Arm Axle
-
39503189265 SpacerSpacer
-
40503189271 CushionCushion
-
41503189282 BushingBushing
-
42503190396 Ball BearingBall Bearing
-
43503190428 Rear Wheel SpacerRear Wheel Spacer
-
44503190434 Labyrinth SealLabyrinth Seal
-
45503190576 Rubber StopperRubber Stopper
-
46503190643 Axle Bar (Long)Axle Bar (Long)
-
47503190754 Retainer CushionRetainer Cushion
-
48503191183 Spring SupportSpring Support
-
49503191198 Slider Shoe 154''. Model-154''Slider Shoe 154''. Model-154''
-
50503191215 Upper ShaftUpper Shaft
-
51503191259 Center BushingCenter Bushing
-
52503191260 Axle StrapAxle Strap
-
53503191262 BushingBushing
-
54503191263 Rear SpacerRear Spacer
-
55503191273 WasherWasher
-
56503191499 Slider Shoe 146''. Model-146''Slider Shoe 146''. Model-146''
-
57503191501 Slider Shoe 163''. Model-163''Slider Shoe 163''. Model-163''
-
58503191555 Swivel BushingSwivel Bushing
-
59503191556 Extended BushingExtended Bushing
-
60503191565 LH Cam AdjusterLH Cam Adjuster
-
61503191566 RH Cam AdjusterRH Cam Adjuster
-
62503191755 Black Wheel Ass'y, 152 mmBlack Wheel Ass'y, 152 mm
-
63503191820 Wheel Cup M6Wheel Cup M6
-
64503191982 Ball BearingBall Bearing
-
65503192299 Runner ProtectorRunner Protector
-
66503192360 Stopper StrapStopper Strap
-
67503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
68503192494 WasherWasher
-
70503192606 Rear Shock AxleRear Shock Axle
-
72503192771 Black Wheel CapBlack Wheel Cap
-
73503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
74503192900 Acceleration Link RodAcceleration Link Rod
-
77503193037 BushingBushing
-
78503193097 BushingBushing
-
79503193098 Black Wheel Ass'y, 200 mmBlack Wheel Ass'y, 200 mm
-
80503193118 Rear ArmRear Arm
-
81503193148 Spherical BearingSpherical Bearing
-
82503193218 BushingBushing
-
83503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
84503193332 Strap AxleStrap Axle
-
87503193464 RockerRocker
-
88503193504 Rubber StopperRubber Stopper
-
90503193699 Pivot ArmPivot Arm
-
91503193702 Lower AxleLower Axle
-
92503193803 Front Arm Ass'yFront Arm Ass'y
-
93503192583 TensionerTensioner
-
94503193894 Casted SupportCasted Support
-
95503194066 Rear Wheel AxleRear Wheel Axle
-
96503194067 Slidder AxleSlidder Axle
-
97503194069 Bolt M8, 10.9Bolt M8, 10.9
-
98505072663 Leg CushionLeg Cushion
-
99207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
100503193435 Pivot AxlePivot Axle
-
101250200143 Flat WasherFlat Washer
-
102233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
103250200143 Flat WasherFlat Washer
-
104293370090 Inner CirclipInner Circlip
-
105503193003 Black LH Spring SquareBlack LH Spring Square
-
106503193002 Black RH Spring SquareBlack RH Spring Square
-
107503193372 Screw M8 X 90Screw M8 X 90
-
109505073625 Adjustement CamAdjustement Cam
-
110503191872 Spring GuideSpring Guide
-
111503191882 Black SpringBlack Spring
-
112503192608 Spring StopperSpring Stopper
-
114503193207 Center ShockCenter Shock
-
124503193189 Rear ShockRear Shock
