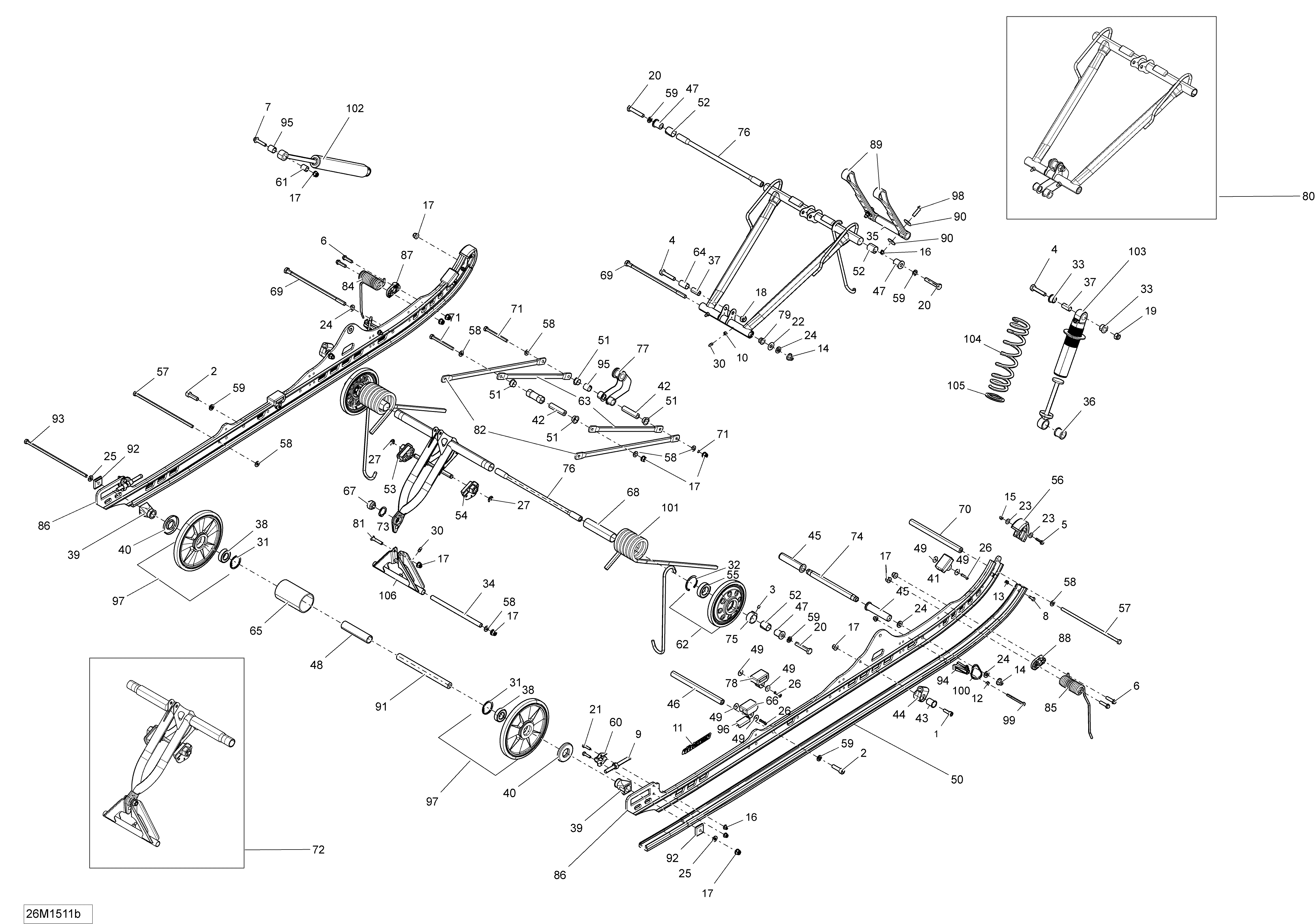

08- Rear Suspension T3-163-174_26M1511b для BRP Ski-Doo Summit X 800RETEC XM T3-163 - 2015
-
№АртикулНазвание
-
1205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
2205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
3206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
4207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
6207683054 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
7207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
8208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
9230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
10232061404 Hexagonal NutHexagonal Nut
-
11516006381 Runner DecalRunner Decal
-
12232061414 Hex. Nut M6Hex. Nut M6
-
13232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
14233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
16233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
18233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
19233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
20250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
21250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
22250200032 WasherWasher
-
23250200140 WasherWasher
-
24250200143 Flat WasherFlat Washer
-
25250200159 Washer-Spring Conical M8Washer-Spring Conical M8
-
26293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
27293370013 E-CirclipE-Circlip
-
30408200700 Grease FittingGrease Fitting
-
31415129371 Retaining RingRetaining Ring
-
32415129780 Retaining RingRetaining Ring
-
33503189117 CushionCushion
-
34503189156 Pivot Arm AxlePivot Arm Axle
-
35503189265 SpacerSpacer
-
36503189271 CushionCushion
-
37503189282 BushingBushing
-
38503190396 Ball BearingBall Bearing
-
39503190428 Rear Wheel SpacerRear Wheel Spacer
-
40503190434 Labyrinth SealLabyrinth Seal
-
41503190576 Rubber StopperRubber Stopper
-
42503190643 Axle Bar (Long)Axle Bar (Long)
-
43503190754 Retainer CushionRetainer Cushion
-
44503191183 Spring SupportSpring Support
-
45503191259 Center BushingCenter Bushing
-
46503191260 Axle StrapAxle Strap
-
47503191262 BushingBushing
-
48503191263 Rear SpacerRear Spacer
-
49503191273 WasherWasher
-
50503191501 Slider Shoe 163''. Model-T3-163''Slider Shoe 163''. Model-T3-163''
-
50503193819 Slider Shoe 174''. Model-T3-174''Slider Shoe 174''. Model-T3-174''
-
51503191555 Swivel BushingSwivel Bushing
-
52503191556 Extended BushingExtended Bushing
-
53503191565 LH Cam AdjusterLH Cam Adjuster
-
54503191566 RH Cam AdjusterRH Cam Adjuster
-
55503191982 Ball BearingBall Bearing
-
56503192299 Runner ProtectorRunner Protector
-
57503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
58503192494 WasherWasher
-
59503192496 WasherWasher
-
60503192583 TensionerTensioner
-
61503192606 Rear Shock AxleRear Shock Axle
-
62503192808 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
63503192900 Acceleration Link RodAcceleration Link Rod
-
64503193037 BushingBushing
-
65503193097 BushingBushing
-
66503193101 Rubber StopperRubber Stopper
-
67503193148 Spherical BearingSpherical Bearing
-
68503193218 BushingBushing
-
69503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
70503193332 Strap AxleStrap Axle
-
71503193372 Screw M8 X 90Screw M8 X 90
-
72503193419 Rear Arm Ass'yRear Arm Ass'y
-
73293370090 Inner CirclipInner Circlip
-
74503193435 Pivot AxlePivot Axle
-
75503193439 Retaining RingRetaining Ring
-
76503193441 Upper ShaftUpper Shaft
-
77503193464 RockerRocker
-
78503193504 Rubber StopperRubber Stopper
-
79503193702 Lower AxleLower Axle
-
80503193803 Front Arm Ass'yFront Arm Ass'y
-
81207084044 Hex. Screw M8 X 40Hex. Screw M8 X 40
-
82503193814 Acceleration Link RodAcceleration Link Rod
-
84503193825 LH SpringLH Spring
-
85503193826 RH SpringRH Spring
-
86503193832 Runner 174''. Model-T3-174''Runner 174''. Model-T3-174''
-
86503193831 Runner 163''. Model-T3-163''Runner 163''. Model-T3-163''
-
87503193881 SupportSupport
-
88503193882 SupportSupport
-
89503193991 Stopper StrapStopper Strap
-
90503193995 WasherWasher
-
91503194066 Rear Wheel AxleRear Wheel Axle
-
92503194067 Slidder AxleSlidder Axle
-
93503194069 Bolt M8, 10.9Bolt M8, 10.9
-
94503194143 HookHook
-
95505072663 Leg CushionLeg Cushion
-
96572084800 Reinforcement StopperReinforcement Stopper
-
97503194055 ROUE 200 Wheel 200ROUE 200 Wheel 200
-
98207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
99207167054 Hex. Cap Screw M6 X 70Hex. Cap Screw M6 X 70
-
100293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
101503193003 Black LH Spring SquareBlack LH Spring Square
-
101503193002 Black RH Spring SquareBlack RH Spring Square
-
102503193529 Rear Shock. Model-T3-163''Rear Shock. Model-T3-163''
-
102503193838 Rear Shock. Model-T3-174''Rear Shock. Model-T3-174''
-
103503193528 Central ShockCentral Shock
-
104503194182 Painted SpringPainted Spring
-
105503192608 Spring StopperSpring Stopper
-
106503193699 Pivot ArmPivot Arm
