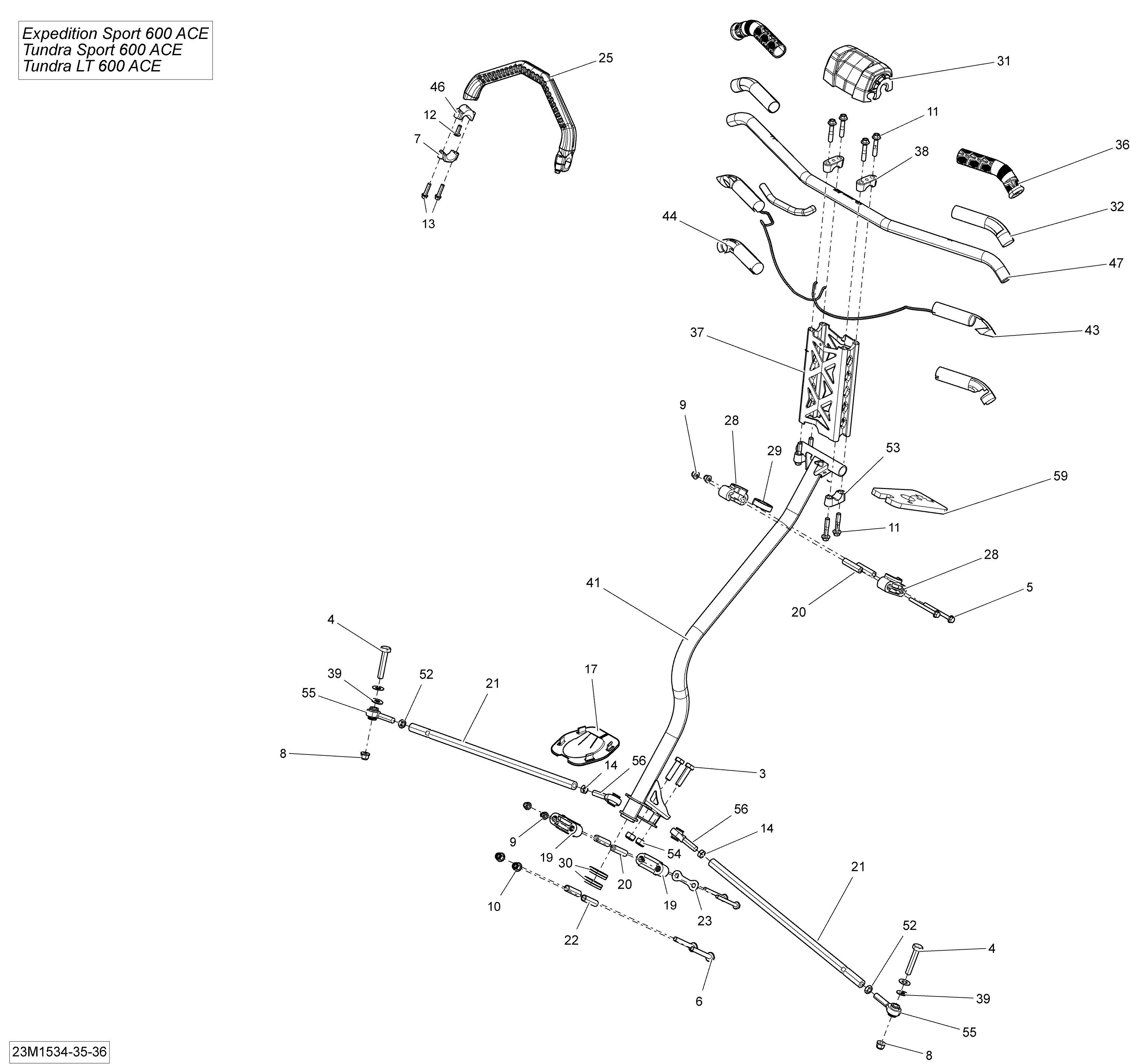

07- Steering _23M1536 для BRP Ski-Doo Tundra LT 600ACE XU154 - 2015
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
4207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
5207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
6207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
7219800081 ClampClamp
-
8233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
12250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
13250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
14250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
19506152217 Lower Half-HousingLower Half-Housing
-
20506152297 Housing BushingHousing Bushing
-
21506152377 Tie RodTie Rod
-
22506152388 Lower Housing BushingLower Housing Bushing
-
23506152389 Stopper PlateStopper Plate
-
25506152460 Moulding StrapMoulding Strap
-
28506152508 Upper Half-HousingUpper Half-Housing
-
29506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
30506152518 Lower Vibration RingLower Vibration Ring
-
31506152541 Steering PadSteering Pad
-
32506152548 InsulantInsulant
-
36506152560 Grip 148mmGrip 148mm
-
37860200821 Extension KitExtension Kit
-
38506152750 Steering SupportSteering Support
-
39506152582 WasherWasher
-
41506152585 Black Main TubeBlack Main Tube
-
43506152758 Heating Element 32 WattHeating Element 32 Watt
-
44506152764 Heated FilmHeated Film
-
46506152703 Black Support PlateBlack Support Plate
-
47506152709 Clear Handle BarClear Handle Bar
-
52732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152751 Steering SupportSteering Support
-
54233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
55506152019 RH Thread Ball JointRH Thread Ball Joint
-
56506152081 LH Thread Ball JointLH Thread Ball Joint
-
59506152521 CushionCushion
