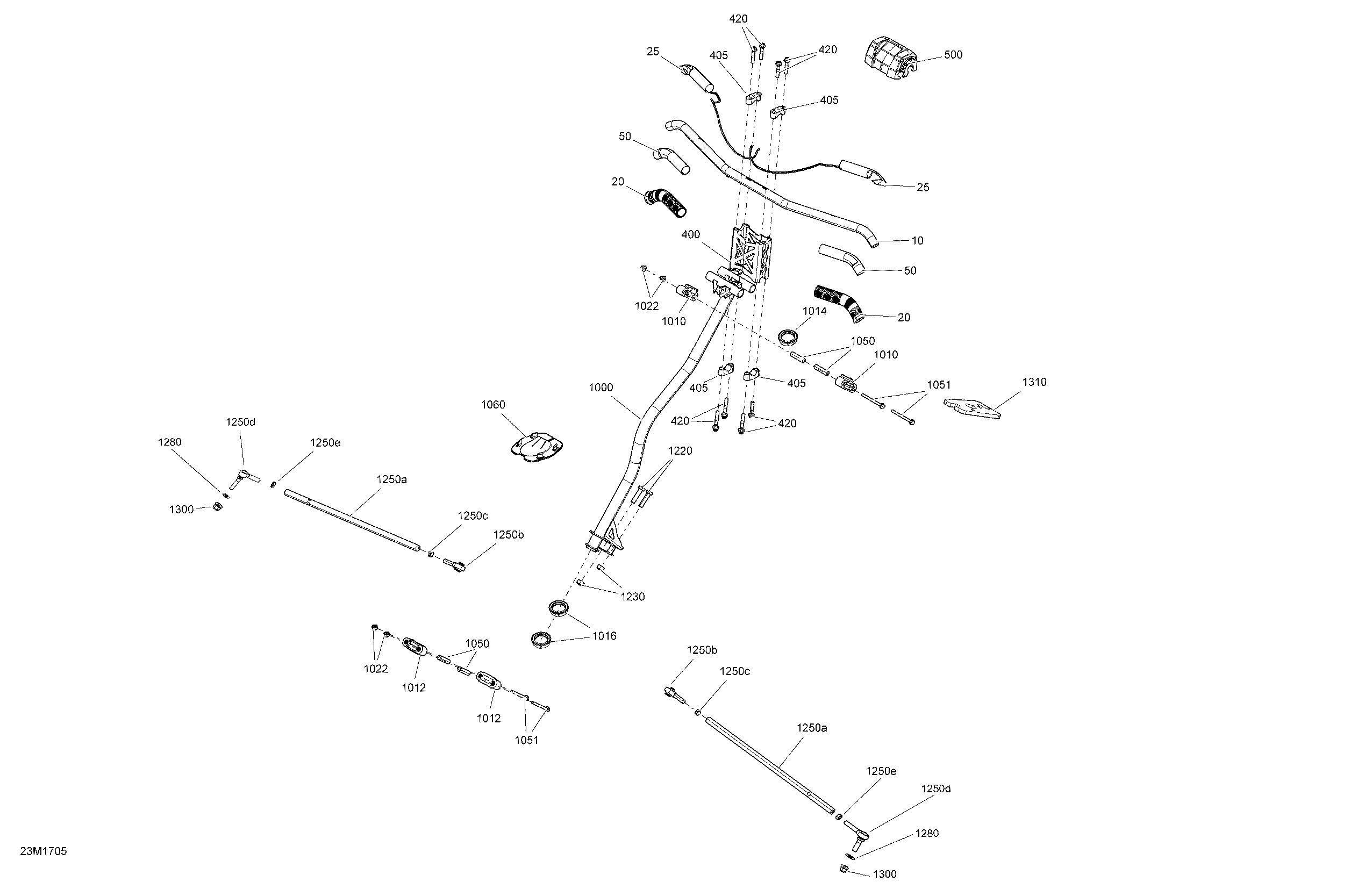

07- Steering для BRP Ski-Doo MXZ - 2-STROKE - 800R E-TEC - 2017
-
№АртикулНазвание
-
10506152709 Handle Bar, Non Dyed Clear AnodizingHandle Bar, Non Dyed Clear Anodizing
-
20506152560 Grip 148mmGrip 148mm
-
25506152758 Heating Element 32 Watt 2 WiresHeating Element 32 Watt 2 Wires
-
50506152548 IsolantIsolant
-
400506152570 Black Handlebar Extension. Package Blizzard (UPHA)Black Handlebar Extension. Package Blizzard (UPHA)
-
400506152616 Black Handlebar ExtensionBlack Handlebar Extension
-
405506152751 Steering SupportSteering Support
-
420250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
500506152541 Steering Pad, Deep BlackSteering Pad, Deep Black
-
1000506152962 Steering ColumnSteering Column
-
1010506152508 Upper Half-HousingUpper Half-Housing
-
1012506152217 Lower Half-Housing. Package Blizzard (UPHA)Lower Half-Housing. Package Blizzard (UPHA)
-
1012506152588 Lower Half-Housing. Package X-RSLower Half-Housing. Package X-RS
-
1014506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
1016506152518 Lower Vibration RingLower Vibration Ring
-
1020506152297 Housing BushingHousing Bushing
-
1021207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
1022233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1030506152297 Housing BushingHousing Bushing
-
1031207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
1050506152297 Housing BushingHousing Bushing
-
1051207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
1060506152163 PlatePlate
-
1220207004034 Hex. Screw M10 X 1.5 X 40Hex. Screw M10 X 1.5 X 40
-
1230233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
1250a506152496 Tie-RodTie-Rod
-
1250b506152081 LH Thread Ball JointLH Thread Ball Joint
-
1250c250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
1250d506152684 RH Thread Ball JointRH Thread Ball Joint
-
1250e732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
1280506152582 WasherWasher
-
1300233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
