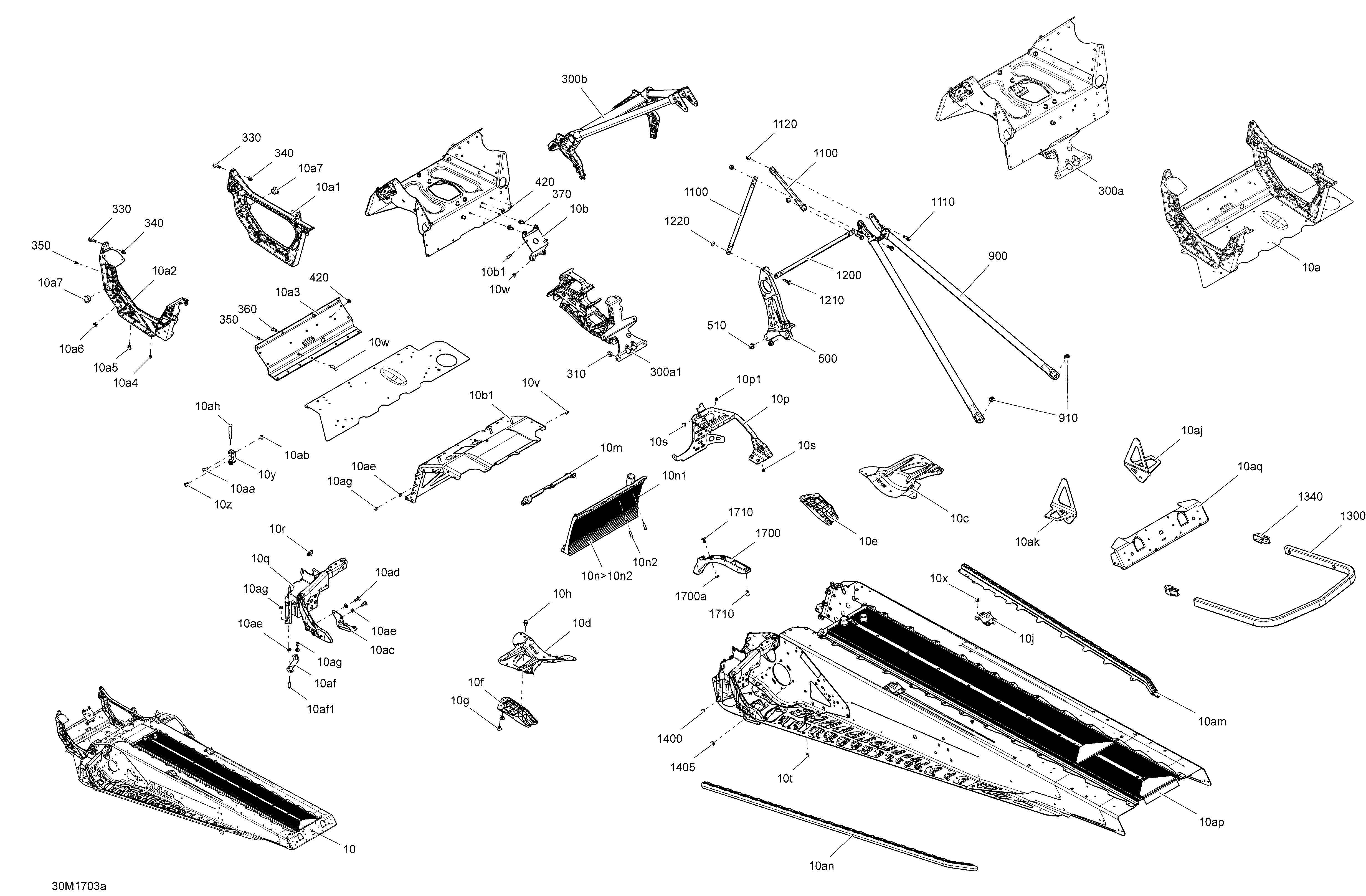

09- Frame для BRP Ski-Doo RENEGADE - 2-STROKE - 600 CARB - 2017
-
№АртикулНазвание
-
10>10aq415130085 Frame Ass'y. Includes 10 to 10aqFrame Ass'y. Includes 10 to 10aq
-
10a>10a7518327567 E Module. Includes 10a to 10a7E Module. Includes 10a to 10a7
-
10a1518326795 RH MemberRH Member
-
10a2518326796 LH MemberLH Member
-
10a3518326198 Front MemberFront Member
-
10a4293150144 Stavex RivetStavex Rivet
-
10a5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10a6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10a7505073317 Leg CushionLeg Cushion
-
10b>10b1518325943 MAG Engine Support. Includes 10b to 10b1MAG Engine Support. Includes 10b to 10b1
-
10b1250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10c518324874 RH ReinforcementRH Reinforcement
-
10d518324875 LH ReinforcementLH Reinforcement
-
10e518325782 RH Deflector, Black PolypropyleneRH Deflector, Black Polypropylene
-
10f518325783 LH Deflector, Black PolypropyleneLH Deflector, Black Polypropylene
-
10g293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10h207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
10j518325973 RH Rear BaseRH Rear Base
-
10j518325974 LH Rear BaseLH Rear Base
-
10m518326656 SealSeal
-
10n>10n2518326485 Front Radiator. Includes 10n to 10n2Front Radiator. Includes 10n to 10n2
-
10n1518326486 Front RadiatorFront Radiator
-
10n2250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10p>10p1518328938 RH Stirup. Includes 10p to 10p1RH Stirup. Includes 10p to 10p1
-
10p1390909200 Avex RivetAvex Rivet
-
10q518326820 LH StirupLH Stirup
-
10r250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
10s293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
10t390909100 Avex RivetAvex Rivet
-
10v293150146 Henrob RivetHenrob Rivet
-
10w293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10x293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10y518326961 U-AttachU-Attach
-
10z293150147 Hemlock RivetHemlock Rivet
-
10aa250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
10ab233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
10ac518326960 SupportSupport
-
10ad250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
10ae250200039 Flat WasherFlat Washer
-
10af>10af1518326986 Attach. Includes 10af to 10af1Attach. Includes 10af to 10af1
-
10af1250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10ag232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
-
10ah250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
10aj518328790 LH BracketLH Bracket
-
10ak518328789 RH BracketRH Bracket
-
10am518325377 RH RollerRH Roller
-
10an518325378 LH RollerLH Roller
-
10ap>10ap1518327588 Rear Radiator 137''. Includes 10ap to 10ap1Rear Radiator 137''. Includes 10ap to 10ap1
-
10aq518327105 Rear CapRear Cap
-
300>300>a1518328320 Cross Member S Module. Includes 300a a 300a1Cross Member S Module. Includes 300a a 300a1
-
300a1518327487 Front Suspension SupportFront Suspension Support
-
300b518326970 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420293730053 Black Dart 5 mmBlack Dart 5 mm
-
500518328346 Pulley SupportPulley Support
-
510233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
1100518325114 Upper Lateral Column SupportUpper Lateral Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1200518325115 Center Column SupportCenter Column Support
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1300518324980 Clear Rear BumperClear Rear Bumper
-
1340520000567 Full Moon CapFull Moon Cap
-
1400293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
1405293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
1700>1700a518326973 Front Tunnel Protector. Includes 1700 to 1700aFront Tunnel Protector. Includes 1700 to 1700a
-
1700a517124300 WasherWasher
-
1710293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
6000250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
6001224061201 Flat WasherFlat Washer
