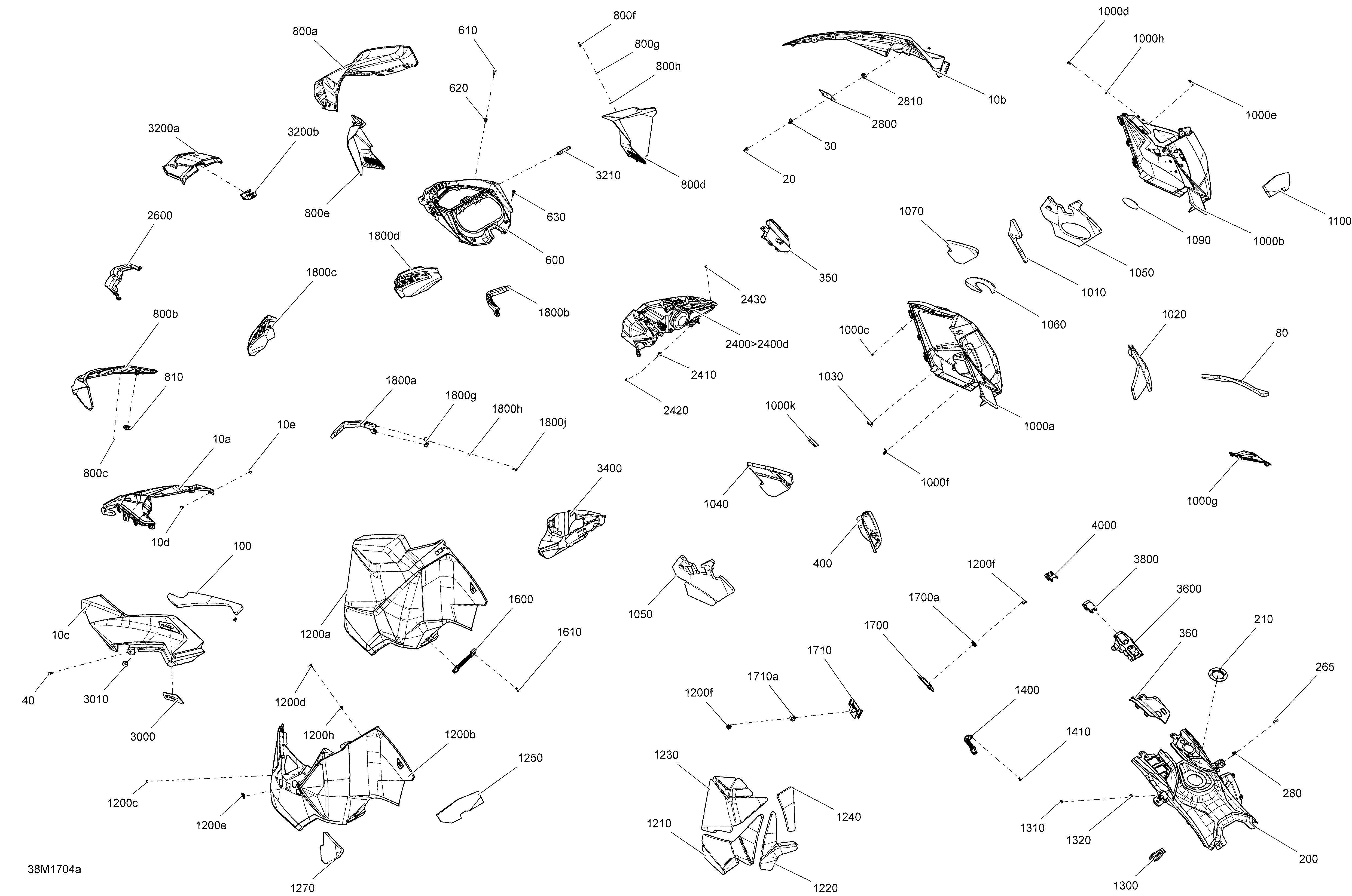

09- Hood - Package Sport, Enduro, Adrenaline для BRP Ski-Doo RENEGADE - 4-STROKE - 2017
-
№АртикулНазвание
-
10a517304796 Black Center HoodBlack Center Hood
-
10b517305239 Black Hood RHBlack Hood RH
-
10b517305284 White Hood RHWhite Hood RH
-
10b517305937 Lichen Hood RHLichen Hood RH
-
10c517305240 Black Hood LHBlack Hood LH
-
10c517305285 White Hood LHWhite Hood LH
-
10c517305938 Lichen Hood LHLichen Hood LH
-
10d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e517124300 WasherWasher
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
80517305090 RH Rear Hood FoamRH Rear Hood Foam
-
100517305091 LH Rear Hood FoamLH Rear Hood Foam
-
200517305557 White Rear ConsoleWhite Rear Console
-
200517305641 Black Rear ConsoleBlack Rear Console
-
210517304518 Console NutConsole Nut
-
265250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
350517305549 RH Front Console. Package EnduroRH Front Console. Package Enduro
-
350517305549 RH Front Console. Except Package EnduroRH Front Console. Except Package Enduro
-
360517305513 Deep Black LH Front Console. Except Package EnduroDeep Black LH Front Console. Except Package Enduro
-
360517306020 Deep Black LH Console. Package EnduroDeep Black LH Console. Package Enduro
-
400517305061 Deep Black RH ConsoleDeep Black RH Console
-
600517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
610250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
620250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
630250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
800a517304927 Windshield 345mmWindshield 345mm
-
800b860200944 SupportSupport
-
800c732610072 Push NutPush Nut
-
800d517304928 RH Air DeflectorRH Air Deflector
-
800e517304929 LH Air DeflectorLH Air Deflector
-
800f250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800g250200025 Washer M5Washer M5
-
800h250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
1000a517305714 Black Panel RH. Engine 1200 4-TEC, Package Adrenaline, EnduroBlack Panel RH. Engine 1200 4-TEC, Package Adrenaline, Enduro
-
1000a517304801 Black Panel RH. Engine 900 ACE, Package Adrenaline, EnduroBlack Panel RH. Engine 900 ACE, Package Adrenaline, Enduro
-
1000a517305925 Lichen Panel RH. Engine 1200 4-TEC, Package EnduroLichen Panel RH. Engine 1200 4-TEC, Package Enduro
-
1000a517305921 Lichen Panel RH. Engine 900 ACE, Package EnduroLichen Panel RH. Engine 900 ACE, Package Enduro
-
1000a517305397 White Panel RH. Engine 900 ACE, Package AdrenalineWhite Panel RH. Engine 900 ACE, Package Adrenaline
-
1000a517305400 White Panel RH. Package SportWhite Panel RH. Package Sport
-
1000a517305905 White Panel RH. Engine 1200 4-TEC, Package AdrenalineWhite Panel RH. Engine 1200 4-TEC, Package Adrenaline
-
1000b517304802 Black Panel Trim RH. Package EnduroBlack Panel Trim RH. Package Enduro
-
1000b517305058 Black Panel Trim RH. Package AdrenalineBlack Panel Trim RH. Package Adrenaline
-
1000b517306138 Orange Crush Panel Trim RH. Model Orange, Package Sport, AdrenalineOrange Crush Panel Trim RH. Model Orange, Package Sport, Adrenaline
-
1000c250100158 Push NutPush Nut
-
1000d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305734 PinPin
-
1000g517304935 RH Panel Vent Grid. Engine 900 ACERH Panel Vent Grid. Engine 900 ACE
-
1000g517305715 Grill. Engine 1200 4-TECGrill. Engine 1200 4-TEC
-
1000h517124300 WasherWasher
-
1000k517305731 Bumper. Engine 1200 4-TECBumper. Engine 1200 4-TEC
-
1010517305197 Foam Central RH. Engine 900 ACEFoam Central RH. Engine 900 ACE
-
1010517305793 Foam Central RH. Engine 1200 4-TECFoam Central RH. Engine 1200 4-TEC
-
1020517305199 Foam Rear RH. Engine 900 ACEFoam Rear RH. Engine 900 ACE
-
1020517305801 Foam Rear RH. Engine 1200 4-TECFoam Rear RH. Engine 1200 4-TEC
-
1030517305451 Heat ShieldHeat Shield
-
1040517305196 Foam Upper RH. Engine 900 ACEFoam Upper RH. Engine 900 ACE
-
1040517305790 Foam Upper RH. Engine 1200 4-TECFoam Upper RH. Engine 1200 4-TEC
-
1050517305198 Foam Lower RH. Engine 900 ACEFoam Lower RH. Engine 900 ACE
-
1050517305792 Foam Lower RH. Engine 1200 4-TECFoam Lower RH. Engine 1200 4-TEC
-
1060517305795 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1070517305791 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1090517305796 Rubber Sheet. Engine 1200 4-TECRubber Sheet. Engine 1200 4-TEC
-
1100517305794 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1200a517305717 Black LH Panel. Engine 1200 4-TEC, Package Adrenaline, EnduroBlack LH Panel. Engine 1200 4-TEC, Package Adrenaline, Enduro
-
1200a517304804 Deep Black LH Panel. Engine 900 ACE, Package Adrenaline, EnduroDeep Black LH Panel. Engine 900 ACE, Package Adrenaline, Enduro
-
1200a517305940 Lichen LH Panel. Engine 1200 4-TEC, Package EnduroLichen LH Panel. Engine 1200 4-TEC, Package Enduro
-
1200a517305941 Lichen LH Panel. Engine 900 ACE, Package EnduroLichen LH Panel. Engine 900 ACE, Package Enduro
-
1200a517305914 Orange LH Panel. Engine 1200 4-TEC, Package AdrenalineOrange LH Panel. Engine 1200 4-TEC, Package Adrenaline
-
1200a517305407 White LH Panel. Package SportWhite LH Panel. Package Sport
-
1200a517305405 White LH Panel. Engine 900 ACE, Package AdrenalineWhite LH Panel. Engine 900 ACE, Package Adrenaline
-
1200b517304805 Black LH Flashing Panel. Model Black, Package Adrenaline, EnduroBlack LH Flashing Panel. Model Black, Package Adrenaline, Enduro
-
1200b517306160 Orange Crush LH Panel Trim. Model Orange, Package Sport, AdrenalineOrange Crush LH Panel Trim. Model Orange, Package Sport, Adrenaline
-
1200c250100158 Push NutPush Nut
-
1200d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200e517305109 Rivet PlateRivet Plate
-
1200f517305734 PinPin
-
1200h517124300 WasherWasher
-
1210517305201 LH Center Panel Foam. Engine 900 ACELH Center Panel Foam. Engine 900 ACE
-
1210517305802 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1220517305202 LH Lower Panel Foam. Engine 900 ACELH Lower Panel Foam. Engine 900 ACE
-
1220517305797 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1230517305200 LH Upper Panel Foam. Engine 900 ACELH Upper Panel Foam. Engine 900 ACE
-
1230517305798 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1240517305203 LH Rear Panel Foam. Engine 900 ACELH Rear Panel Foam. Engine 900 ACE
-
1240517305803 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1250517305800 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1270517305799 Foam. Engine 1200 4-TECFoam. Engine 1200 4-TEC
-
1300517305279 Panel LatchPanel Latch
-
1310250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
1320250100156 Weld Nut M4Weld Nut M4
-
1400517304919 RH Panel LatchRH Panel Latch
-
1410293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1700517305724 RH Panel Clip Ass'y. Includes 1700 to 1700aRH Panel Clip Ass'y. Includes 1700 to 1700a
-
1700a517305723 RingRing
-
1710517305722 LH Panel Clip Ass'y. Includes 1710 to 1710aLH Panel Clip Ass'y. Includes 1710 to 1710a
-
1710a517305723 RingRing
-
1800a517305290 LH ArmLH Arm
-
1800b517305293 RH ArmRH Arm
-
1800c517305291 LH DeflectorLH Deflector
-
1800d517305294 RH DeflectorRH Deflector
-
1800g517305296 BrideBride
-
1800h250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1800j250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2400>2400d517306180 Headlamp. Includes 2400 to 2400dHeadlamp. Includes 2400 to 2400d
-
2400a219400070 CapCap
-
2400b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400c219800282 Holder BracketHolder Bracket
-
2400d219800281 SpringSpring
-
2410250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
2420250100035 Jack Nut M5Jack Nut M5
-
2430250000725 Screw M4 X 16Screw M4 X 16
-
2600517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
2800517304923 RH Air Deflector ConsoleRH Air Deflector Console
-
2810517302841 GrommetGrommet
-
3000517304924 LH Air Deflector ConsoleLH Air Deflector Console
-
3010517302841 GrommetGrommet
-
3200a517304912 Upper Storage Access CoverUpper Storage Access Cover
-
3200b517304917 Cover LatchCover Latch
-
3210517305157 Seal JointSeal Joint
-
3400517305095 TrunkTrunk
-
3600517304970 Console SupportConsole Support
-
3800517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
4000517305148 Support Console CapSupport Console Cap
