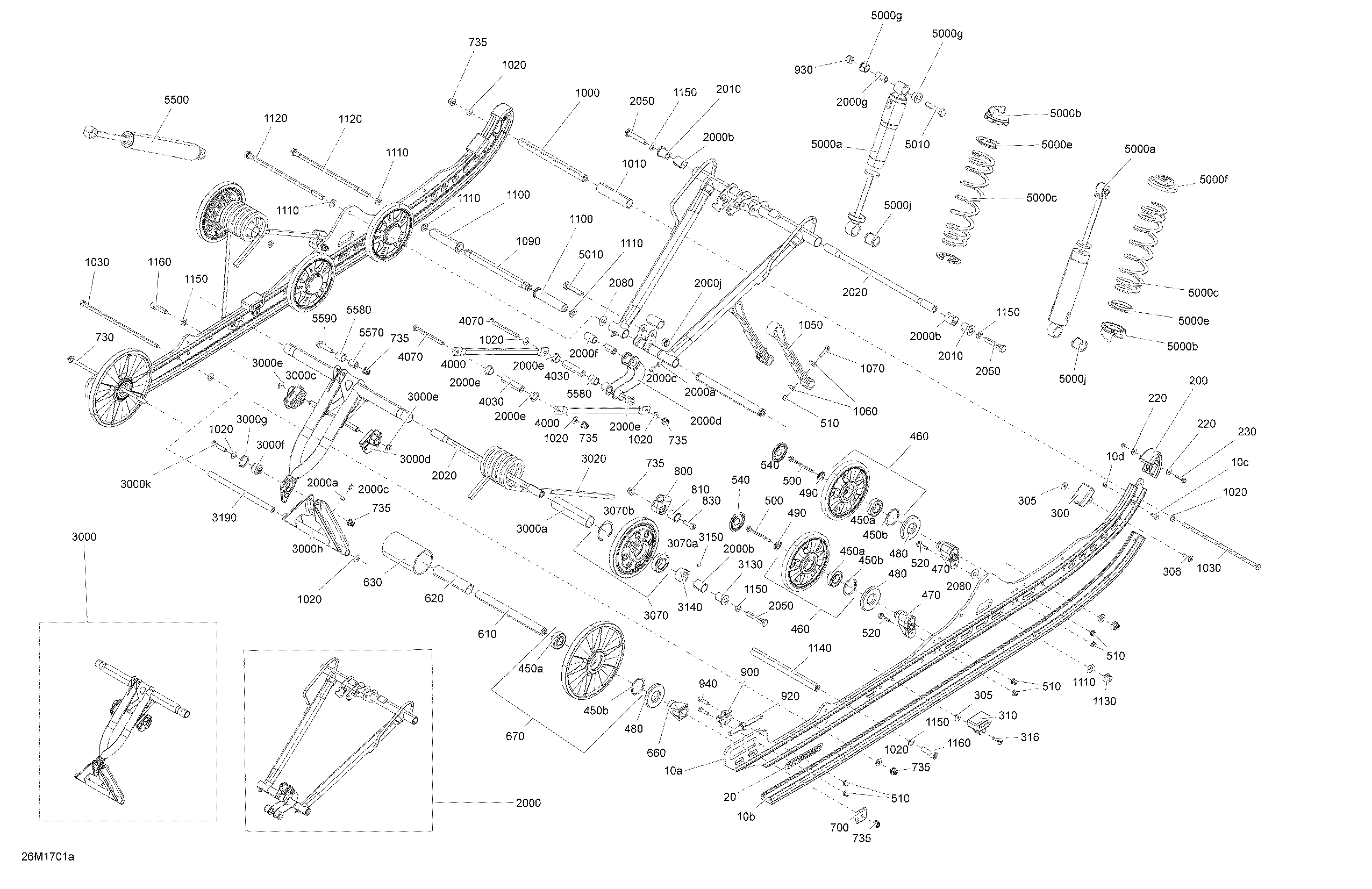

08- Rear Suspension для BRP Ski-Doo SUMMIT - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10a503193827 Black Runner 146''. Model 146Black Runner 146''. Model 146
-
10a503193828 Black Runner 154''. Model 154Black Runner 154''. Model 154
-
10b503191499 Black Slider Shoe 146''. Model 146Black Slider Shoe 146''. Model 146
-
10b503191198 Black Slider Shoe 154''. Model 154Black Slider Shoe 154''. Model 154
-
10c208562531 Phillips Screw M6 X 1.0 X 25Phillips Screw M6 X 1.0 X 25
-
10d232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
-
20516006381 Runner DecalRunner Decal
-
200503192299 Runner ProtectorRunner Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 0.8 X 25Hex. Flanged Screw M5 X 0.8 X 25
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503193504 Rubber StopperRubber Stopper
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
460503191755 Black Wheel Ass'y, 152 mm. Includes 450a and 450bBlack Wheel Ass'y, 152 mm. Includes 450a and 450b
-
450a503190396 Ball BearingBall Bearing
-
450b415129371 Retaining RingRetaining Ring
-
470503193894 Casted SupportCasted Support
-
480503190434 Labyrinth SealLabyrinth Seal
-
490503191820 Wheel Cup M6Wheel Cup M6
-
500207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
510233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
520207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
540503192771 Black - Wheel CapBlack - Wheel Cap
-
610503194200 Rear AxleRear Axle
-
620503191263 Rear SpacerRear Spacer
-
630503193097 BushingBushing
-
660503190428 Rear Wheel SpacerRear Wheel Spacer
-
670503193098 Black Wheel Ass'y, 200 mm. Includes 450a and 450bBlack Wheel Ass'y, 200 mm. Includes 450a and 450b
-
450a503190396 Ball BearingBall Bearing
-
450b415129371 Retaining RingRetaining Ring
-
700503194412 Axle SliderAxle Slider
-
730503194265 BoltBolt
-
735233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
900503192583 TensionerTensioner
-
920230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
1000503193332 Strap AxleStrap Axle
-
1010503189265 SpacerSpacer
-
1020503192494 WasherWasher
-
1030503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
1050503193991 Stopper StrapStopper Strap
-
1060503193995 WasherWasher
-
1070207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10 X 1.5Flanged Elastic Nut M10 X 1.5
-
1140503194522 Black Strap AxleBlack Strap Axle
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
2000>2000j503194304 Front Arm Assembly. Includes 2000 to 2000jFront Arm Assembly. Includes 2000 to 2000j
-
2000a232061404 Hexagonal Nut M6Hexagonal Nut M6
-
2000b503191556 Extended BushingExtended Bushing
-
2000c408200700 Grease FittingGrease Fitting
-
2000d503193464 RockerRocker
-
2000e503191555 Swivel BushingSwivel Bushing
-
2000f503193037 BushingBushing
-
2000g503189282 BushingBushing
-
2000j233601416 Elastic Locking Nut M10 X 1.5Elastic Locking Nut M10 X 1.5
-
2010503194000 BushingBushing
-
2020503193441 Upper ShaftUpper Shaft
-
2050250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
2080250200032 WasherWasher
-
3000>3000h503194296 Rear Arm Assembly. Includes 3000 to 3000hRear Arm Assembly. Includes 3000 to 3000h
-
3000a503193218 BushingBushing
-
3000c503191565 LH Cam AdjusterLH Cam Adjuster
-
3000d503191566 RH Cam AdjusterRH Cam Adjuster
-
3000e293370013 E-CirclipE-Circlip
-
3000f503194035 Radial JointRadial Joint
-
3000g293370114 Inner CirclipInner Circlip
-
3000h503193699 Pivot ArmPivot Arm
-
3000k207084056 Hexagonal Screw M8 X 1.25 X 40Hexagonal Screw M8 X 1.25 X 40
-
3020503193003 Black Spring LH, SquareBlack Spring LH, Square
-
3020503193002 Black Spring RH, SquareBlack Spring RH, Square
-
3070>3070b503192808 Black Wheel Ass'y 155 mm. Includes 3070 to 3070bBlack Wheel Ass'y 155 mm. Includes 3070 to 3070b
-
3070a503193548 Ball BearingBall Bearing
-
3070b415129780 Retaining RingRetaining Ring
-
3130503194000 BushingBushing
-
3140503193439 Retaining RingRetaining Ring
-
3150206260844 Socket Set Screw M6 X 1.0 X 8Socket Set Screw M6 X 1.0 X 8
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
4000503192900 Acceleration Link Rod. Model 154Acceleration Link Rod. Model 154
-
4000503192900 Acceleration Link Rod. Model 146Acceleration Link Rod. Model 146
-
4030503190643 Axle Bar (Long)Axle Bar (Long)
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
5000a503193207 Central ShockCentral Shock
-
5000b505073625 Adjustment CamAdjustment Cam
-
5000c503191882 Black SpringBlack Spring
-
5000e503191872 Spring GuideSpring Guide
-
5000f706200881 Spring StopperSpring Stopper
-
5000g503189117 BushingBushing
-
5000j503189271 BushingBushing
-
5010207005044 Hex. Screw M10 X 1.5 X 50Hex. Screw M10 X 1.5 X 50
-
5500503193189 Rear ShockRear Shock
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 1.25 X 40Hex. Flanged Screw M8 X 1.25 X 40
