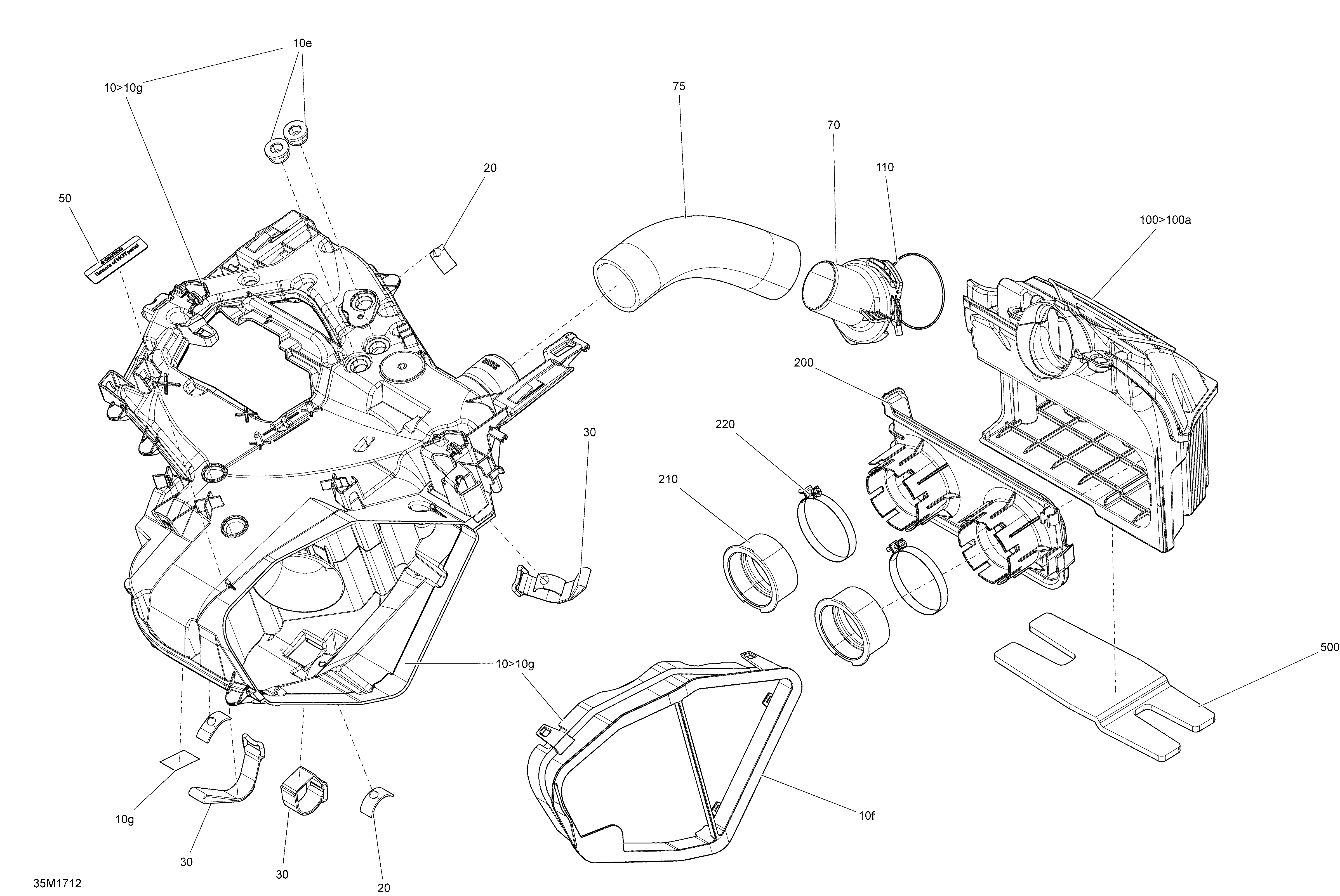

02- Air Intake System - All Models для BRP Ski-Doo TUNDRA - 2-STROKE - LT-SPORT - 2017
-
№АртикулНазвание
-
10>10g508000715 Secondary Chamber Ass'y. Includes 10 to 10gSecondary Chamber Ass'y. Includes 10 to 10g
-
10g509000688 Reflective SheetReflective Sheet
-
10e508000574 GrommetGrommet
-
10f508000595 Air Intake FilterAir Intake Filter
-
20508000537 StopperStopper
-
30508000820 Velcro-StripVelcro-Strip
-
30508000820 Velcro-StripVelcro-Strip
-
50516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
70508000562 LinkLink
-
75508000406 TubeTube
-
100>100a508000680 Primary Chamber Ass'y. Includes 100 to 100aPrimary Chamber Ass'y. Includes 100 to 100a
-
100a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
110293300115 O-RingO-Ring
-
200508000564 Adapter PlateAdapter Plate
-
210508000594 Air Intake AdapterAir Intake Adapter
-
220508000369 Gemi ClampGemi Clamp
-
500508000739 Insulated FoamInsulated Foam
