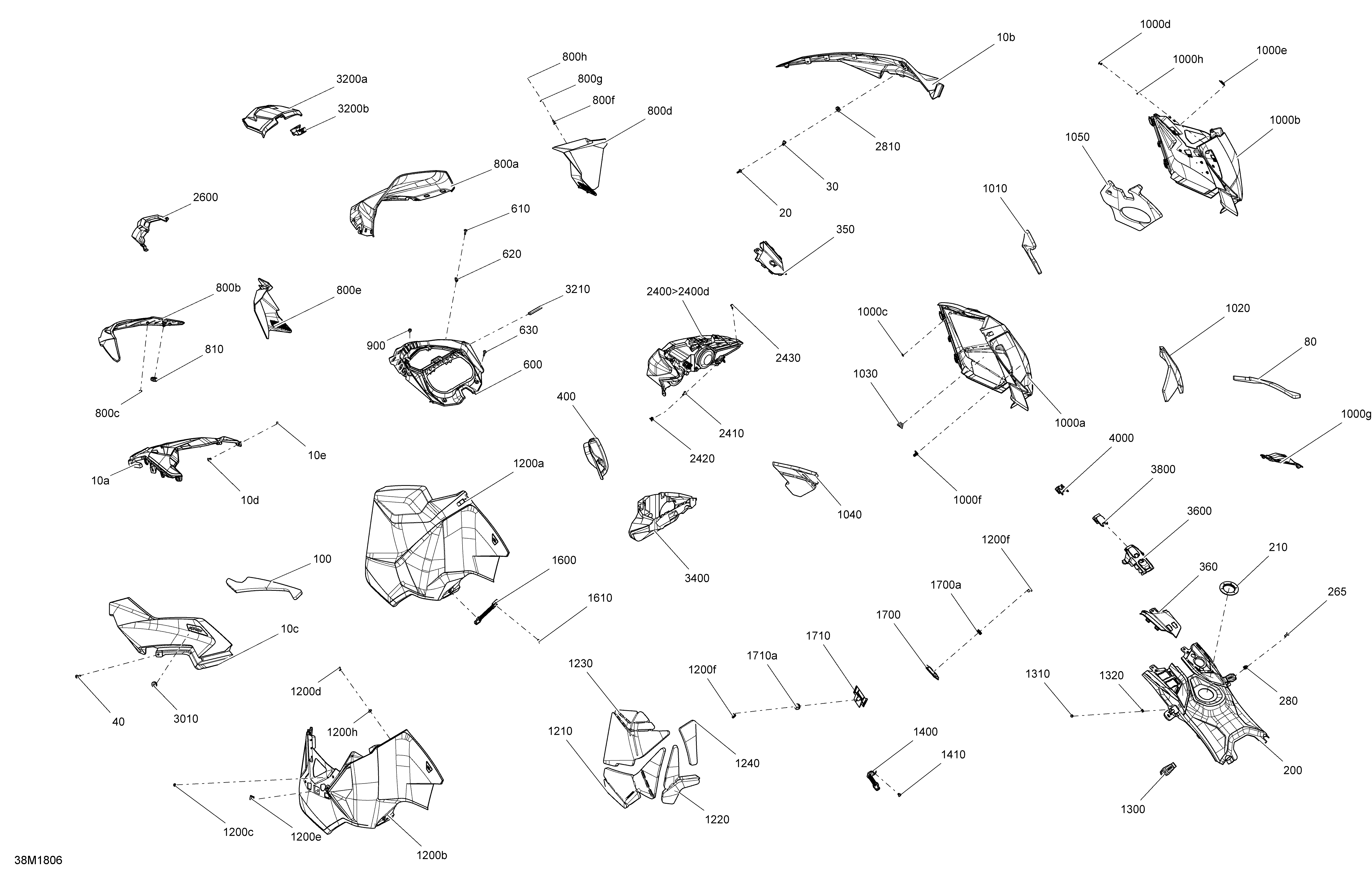

09- Hood Expedition - 600 & 900 ACE для BRP Ski-Doo 3- EXPEDITION SPORT 900 ACE - 2018
-
№АртикулНазвание
-
10a517305011 Deep Black Center HoodDeep Black Center Hood
-
10b517305284 White Hood RHWhite Hood RH
-
10c517305285 White Hood LHWhite Hood LH
-
10d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e517124300 WasherWasher
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
80517305090 RH Rear Hood FoamRH Rear Hood Foam
-
100517305091 LH Rear Hood FoamLH Rear Hood Foam
-
200517305557 White Rear ConsoleWhite Rear Console
-
210517304518 Console NutConsole Nut
-
265250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
350517305549 RH Front ConsoleRH Front Console
-
360517306022 LH Front ConsoleLH Front Console
-
400517305061 Deep Black RH ConsoleDeep Black RH Console
-
600517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
610250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
620250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
630250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
800a860200928 Windshield 450mmWindshield 450mm
-
800b860200944 SupportSupport
-
800c732610072 Push NutPush Nut
-
800d517304928 RH Air DeflectorRH Air Deflector
-
800e517304929 LH Air DeflectorLH Air Deflector
-
800f250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800g250200025 Washer M5Washer M5
-
800h250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
900293830005 Rubber BumperRubber Bumper
-
1000a517305400 White Panel RHWhite Panel RH
-
1000b517305058 Black Panel Trim RHBlack Panel Trim RH
-
1000c250100158 Push NutPush Nut
-
1000d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305734 PinPin
-
1000g517304935 RH Panel Vent GridRH Panel Vent Grid
-
1000h517124300 WasherWasher
-
1010517305197 Foam Central RHFoam Central RH
-
1020517305199 Foam Rear RHFoam Rear RH
-
1030517305451 Heat ShieldHeat Shield
-
1040517305196 Foam Upper RHFoam Upper RH
-
1050517305198 Foam Lower RHFoam Lower RH
-
1200a517305407 White LH PanelWhite LH Panel
-
1200b517304805 Black LH Flashing PanelBlack LH Flashing Panel
-
1200c250100158 Push NutPush Nut
-
1200d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200e517305109 Rivet PlateRivet Plate
-
1200f517305734 PinPin
-
1200g517124300 WasherWasher
-
1210517305201 LH Center Panel FoamLH Center Panel Foam
-
1220517305202 LH Lower Panel FoamLH Lower Panel Foam
-
1230517305200 LH Upper Panel FoamLH Upper Panel Foam
-
1240517305203 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305279 Panel LatchPanel Latch
-
1310250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
1320250100156 Weld Nut M4Weld Nut M4
-
1400517304919 RH Panel LatchRH Panel Latch
-
1410293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1700517305724 RH Panel Clip Ass'y. Includes 1700 to 1700aRH Panel Clip Ass'y. Includes 1700 to 1700a
-
1700a517305723 RingRing
-
1710517305722 LH Panel Clip Ass'y. Includes 1710 to 1710aLH Panel Clip Ass'y. Includes 1710 to 1710a
-
1710a517305723 RingRing
-
2400517306180 Headlamp. Includes 2400 to 2400fHeadlamp. Includes 2400 to 2400f
-
2400a219400070 CapCap
-
2400b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400c219800282 Holder BracketHolder Bracket
-
2400d219800281 SpringSpring
-
2400e415130194 HarnessHarness
-
2400f710002033 HolderHolder
-
2410250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
2420250100035 Jack Nut M5Jack Nut M5
-
2430250000725 Screw M4 X 16Screw M4 X 16
-
2600517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
2810517302841 GrommetGrommet
-
3010517302841 GrommetGrommet
-
3200a517304912 Upper Storage Access CoverUpper Storage Access Cover
-
3200b517304917 Cover LatchCover Latch
-
3210517305157 Seal JointSeal Joint
-
3400517305095 TrunkTrunk
-
3600517304970 Console SupportConsole Support
-
3800517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
4000517305148 Support Console CapSupport Console Cap
