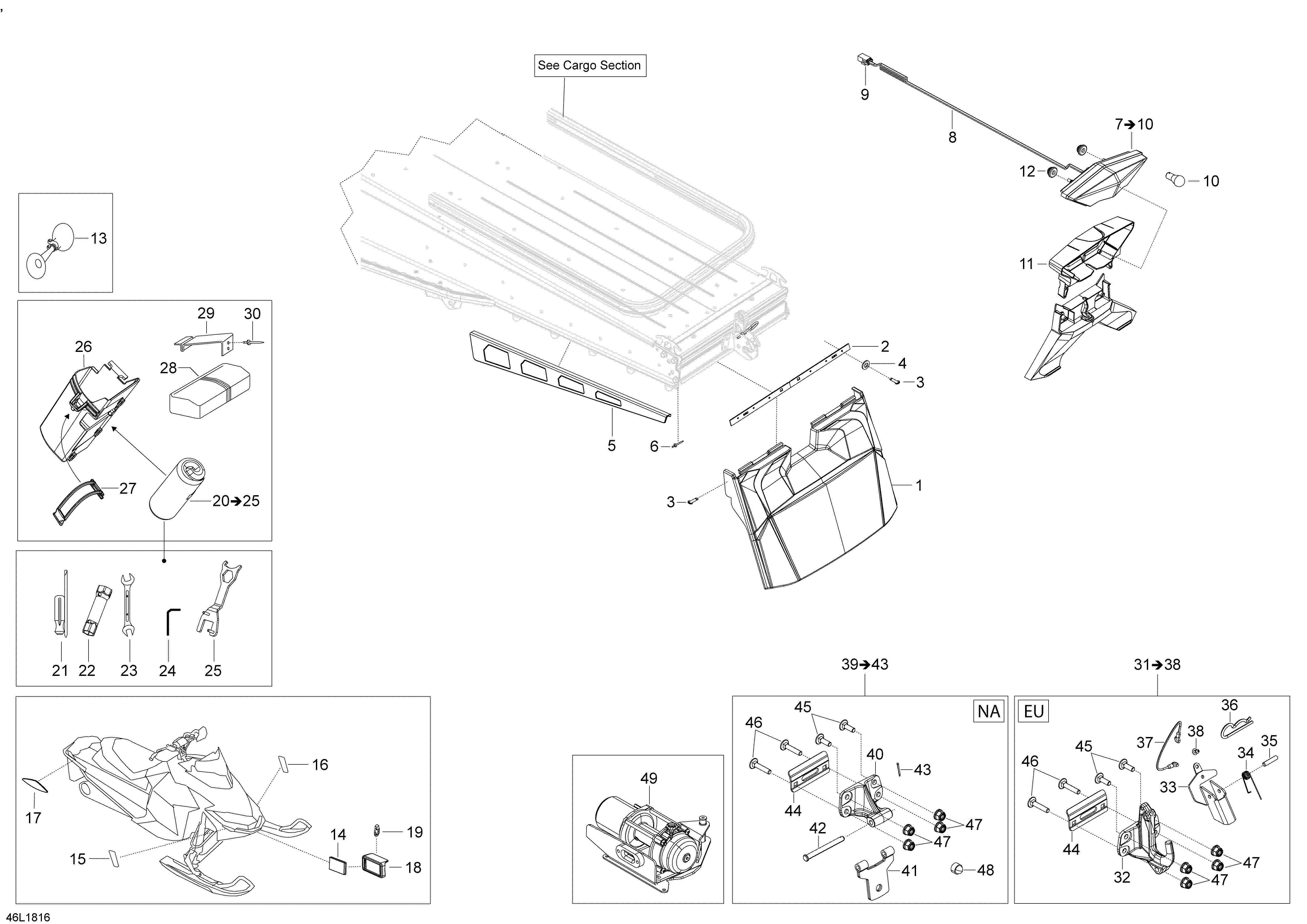

09- Utilities Expedition - 900 ACE для BRP Ski-Doo 4- EXPEDITION LE/SE 900 ACE - 2018
-
№АртикулНазвание
-
1520001406 Snow Guard. North AmericaSnow Guard. North America
-
1520001410 Black, Snow Guard Long. EuropeBlack, Snow Guard Long. Europe
-
2520001021 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet HucklokRivet Hucklok
-
7520000848 Rear Light. Includes 7 to 10Rear Light. Includes 7 to 10
-
8520000849 Rear Wiring HarnessRear Wiring Harness
-
8.1520000677 Wiring Harness Ass'y. Not ShownWiring Harness Ass'y. Not Shown
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
13549011291 Horn. EuropeHorn. Europe
-
1421118 Reflector (Bright). EuropeReflector (Bright). Europe
-
15520001600 Yellow RH Reflector. Package LEYellow RH Reflector. Package LE
-
16520001601 Yellow LH Reflector. Package LEYellow LH Reflector. Package LE
-
17705002423 Amber Lateral Reflector. EuropeAmber Lateral Reflector. Europe
-
17705003412 Red Lateral Reflector. North AmericaRed Lateral Reflector. North America
-
18520000871 Reflector Support. EuropeReflector Support. Europe
-
1927120 Tie Rap. EuropeTie Rap. Europe
-
20529000078 Tool KitTool Kit
-
26520000894 Tool Kit RackTool Kit Rack
-
27520000528 LatchLatch
-
31520001774 Hitch Ass'y. Europe. Includes 31 to 38,2Hitch Ass'y. Europe. Includes 31 to 38,2
-
33520001775 Locking Plate. EuropeLocking Plate. Europe
-
35520001810 Clevis Pin. EuropeClevis Pin. Europe
-
3641029 Hair pin. EuropeHair pin. Europe
-
38390909100 Avex Rivet. EuropeAvex Rivet. Europe
-
38.1520001811 Washer. Europe. Not ShownWasher. Europe. Not Shown
-
38.2520001812 Cotter Pin. Europe. Not ShownCotter Pin. Europe. Not Shown
-
39520001398 Hitch Ass'y. North America. Includes 39 to 43Hitch Ass'y. North America. Includes 39 to 43
-
42560309200 Pin-Retainer. North AmericaPin-Retainer. North America
-
4341031 Cotter Pin. North AmericaCotter Pin. North America
-
44520000727 PlatePlate
-
45207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
46207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
47233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4828056 Cover. North AmericaCover. North America
-
50705011222 Amber Reflector. Package SEAmber Reflector. Package SE
-
51520001744 LH Reflector Mount. Package SELH Reflector Mount. Package SE
-
51520001746 RH Reflector Mount. Package SERH Reflector Mount. Package SE
-
52205082044 Socket Head Screw M8 X 20. Package SESocket Head Screw M8 X 20. Package SE
-
53233281414 Hex. Flanged Elastic Nut M8. Package SEHex. Flanged Elastic Nut M8. Package SE
-
5428056 Cover. Package SECover. Package SE
-
55233251494 Elastic Flanged Nut M5. Package SEElastic Flanged Nut M5. Package SE
-
60520001766 Support Tape. Not ShownSupport Tape. Not Shown
