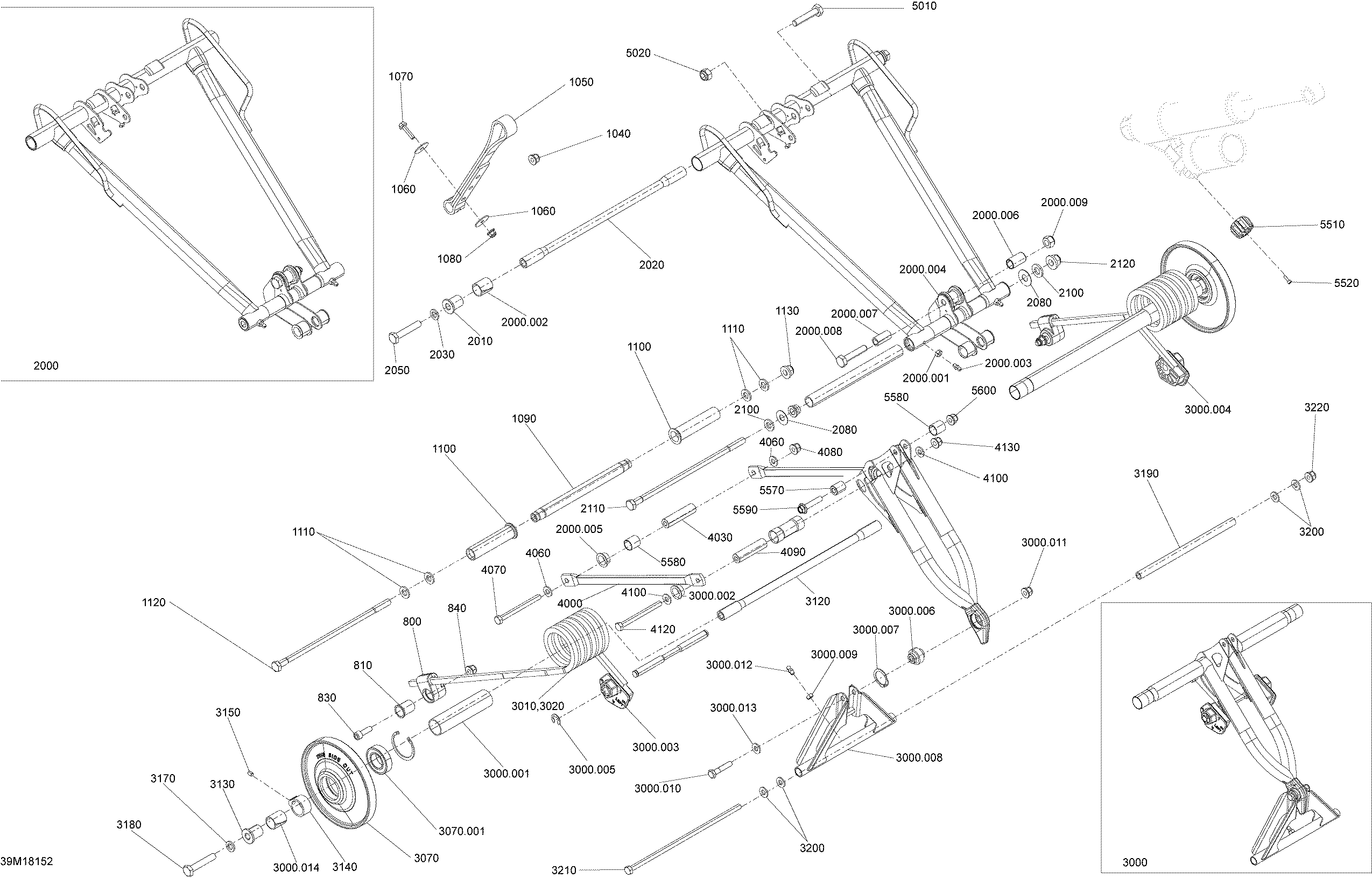

08- Rear Suspension Freeride - Package 154 NOIS - Superior для BRP Ski-Doo FREERIDE 850 E-TEC - 2018
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1040233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1050503194679 Stopper StrapStopper Strap
-
1060503193995 WasherWasher
-
1070207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
1080233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
2000503194304 Front Arm Assembly. Includes 2000 to 2000,009Front Arm Assembly. Includes 2000 to 2000,009
-
2000.001232061404 Hexagonal Nut M6Hexagonal Nut M6
-
2000.002503191556 Extended BushingExtended Bushing
-
2000.003408200700 Grease FittingGrease Fitting
-
2000.004503193464 RockerRocker
-
2000.005503191555 Swivel BushingSwivel Bushing
-
2000.006503193037 BushingBushing
-
2000.007503189282 BushingBushing
-
2000.008207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
2000.009233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
2010503194970 BushingBushing
-
2020503193441 Upper ShaftUpper Shaft
-
2030503192496 WasherWasher
-
2050250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
2080250200032 WasherWasher
-
2100250200143 Flat WasherFlat Washer
-
2110503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
2120233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3000503194296 Rear Arm Assembly. Includes 3000 to 3000,014Rear Arm Assembly. Includes 3000 to 3000,014
-
3000.001503193218 BushingBushing
-
3000.002503191555 Swivel BushingSwivel Bushing
-
3000.003503191565 LH Cam AdjusterLH Cam Adjuster
-
3000.004503191566 RH Cam AdjusterRH Cam Adjuster
-
3000.005293370013 E-CirclipE-Circlip
-
3000.006503194035 Radial JointRadial Joint
-
3000.007293370114 Inner CirclipInner Circlip
-
3000.008503193699 Pivot Arm. Includes 3000,008 to 3000,009Pivot Arm. Includes 3000,008 to 3000,009
-
3000.009232061404 Hexagonal Nut M6Hexagonal Nut M6
-
3000.01207084056 Hexagonal Screw M8 X 40Hexagonal Screw M8 X 40
-
3000.011233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3000.012408200700 Grease FittingGrease Fitting
-
3000.013503192494 WasherWasher
-
3000.014503191556 Extended BushingExtended Bushing
-
3010503192136 Black LH Spring, SquareBlack LH Spring, Square
-
3020503192137 Black RH Spring, SquareBlack RH Spring, Square
-
3070503191150 Wheel 155. Includes 3070 to 3070,001Wheel 155. Includes 3070 to 3070,001
-
3070.001503193548 Ball BearingBall Bearing
-
3120503193441 Upper ShaftUpper Shaft
-
3130503194970 BushingBushing
-
3140503193439 Retaining RingRetaining Ring
-
3150206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
3170503192496 WasherWasher
-
3180250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503192900 Acceleration Link RodAcceleration Link Rod
-
4030503193993 AxleAxle
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503193993 AxleAxle
-
4100503192494 WasherWasher
-
4120503193372 Screw M8 X 90Screw M8 X 90
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5010207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5020233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
5510503193033 Shock Adjuster KnobShock Adjuster Knob
-
5520250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
