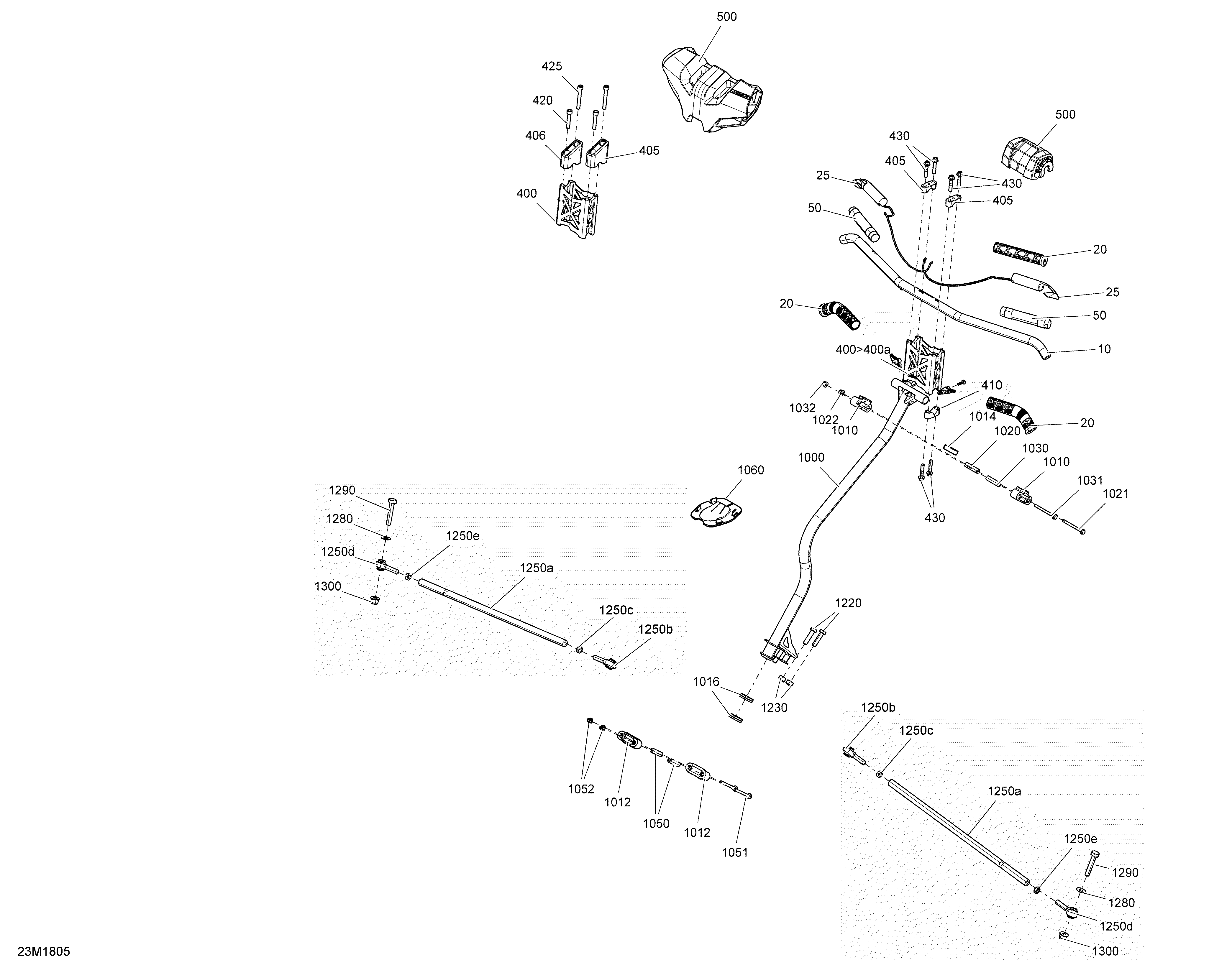

07- Steering Grand Touring - 600 HO E-TEC для BRP Ski-Doo 1- GRAND TOURING 600HO E-TEC - 2018
-
№АртикулНазвание
-
10506152711 Black Handle BarBlack Handle Bar
-
20506152501 GripGrip
-
25506152800 LH Heating Element 20 WattLH Heating Element 20 Watt
-
25506152801 RH Heating Element 20 WattRH Heating Element 20 Watt
-
50506152423 InsulantInsulant
-
400506152759 Handlebar Extension 115Handlebar Extension 115
-
405506152729 LH Handlebar SupportLH Handlebar Support
-
406506152730 RH Handlebar SupportRH Handlebar Support
-
410506152751 Steering SupportSteering Support
-
420205084560 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
425205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
430250000852 Hexagonal Flange Screw M8 X 60Hexagonal Flange Screw M8 X 60
-
500506152721 Steering PadSteering Pad
-
1000506152962 Steering ColumnSteering Column
-
1010506152508 Upper Half-HousingUpper Half-Housing
-
1012506152217 Lower Half-HousingLower Half-Housing
-
1014506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
1016506152518 Lower Vibration RingLower Vibration Ring
-
1020506152297 Housing BushingHousing Bushing
-
1021207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
1022233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1030506152297 Housing BushingHousing Bushing
-
1031207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
1032233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1040506152297 Housing BushingHousing Bushing
-
1041207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
1042233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1050506152297 Housing BushingHousing Bushing
-
1051207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
1052233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1060506152163 PlatePlate
-
1220207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
1230233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
1250a506152496 Tie-RodTie-Rod
-
1250b506152081 Inner Ball JointInner Ball Joint
-
1250c250100016 Hex. Jam Nut M10Hex. Jam Nut M10
-
1250d506152684 Outer Ball JointOuter Ball Joint
-
1250e732610010 Hex. Jam Nut M10Hex. Jam Nut M10
-
1280506152582 WasherWasher
-
1290207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
1300233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
6000250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
