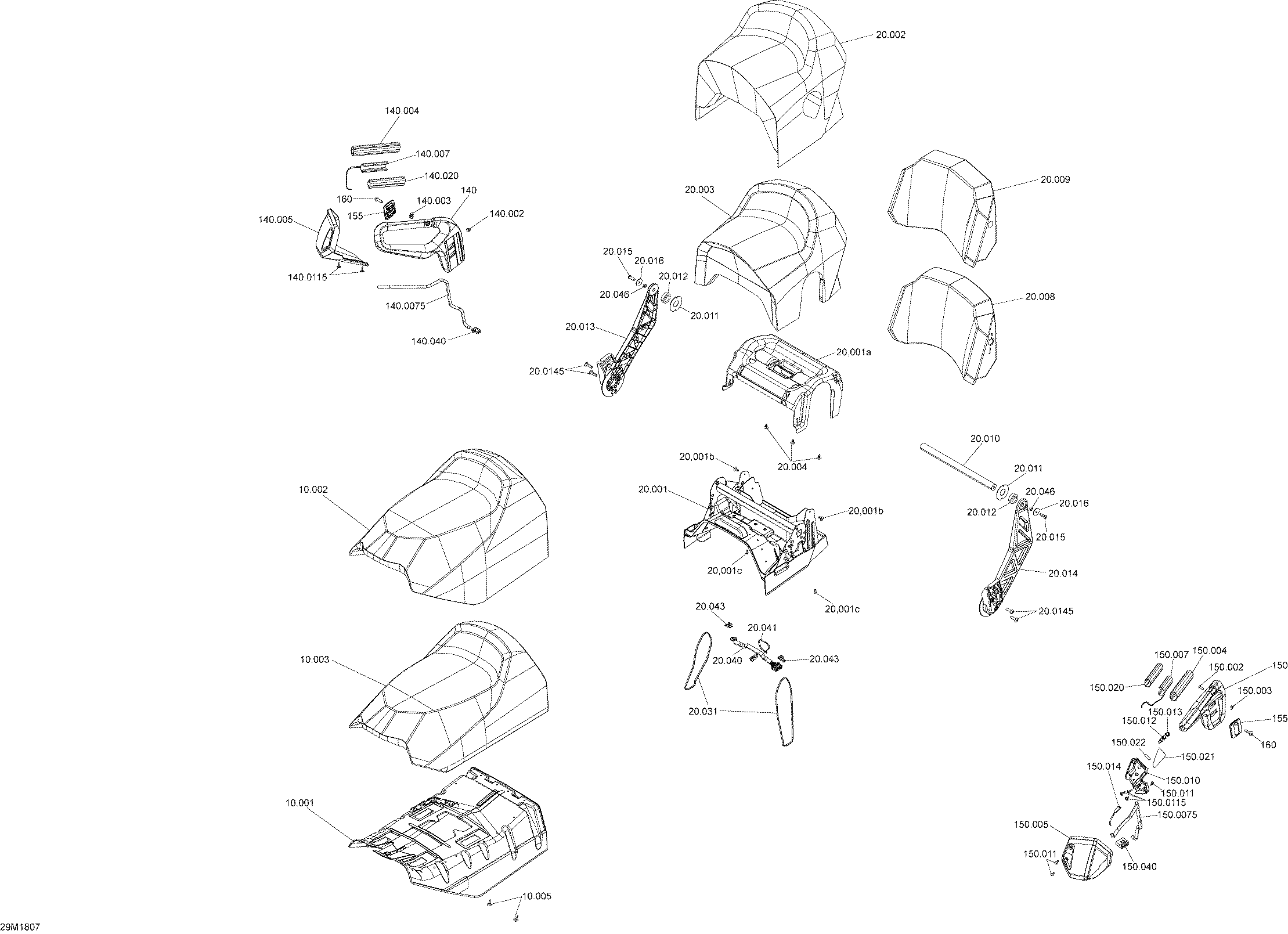

09- Seat Grand Touring Sport для BRP Ski-Doo 2- GRAND TOURING 600 ACE - 2018
-
№АртикулНазвание
-
10.001510004775 FRONT SEAT BASEFRONT SEAT BASE
-
10.002510005181 SEAT COVERSEAT COVER
-
10.003510004777 FRONT SEAT FOAMFRONT SEAT FOAM
-
10.005708000759 RUBBER STOPPERRUBBER STOPPER
-
20.001510005535 SEAT BASE ASS'Y. Includes 20,001 to 20,001cSEAT BASE ASS'Y. Includes 20,001 to 20,001c
-
20,001a510004423 FOAM SUPPORTFOAM SUPPORT
-
20,001b293150104 POP RIVET 3/16''POP RIVET 3/16''
-
20,001c390402300 POP RIVET 3/16''POP RIVET 3/16''
-
20.002510005399 REAR SEAT COVERREAR SEAT COVER
-
20.003510004791 REAR SEAT FOAMREAR SEAT FOAM
-
20.004414644300 DARTDART
-
20.008510004782 BACKREST FOAMBACKREST FOAM
-
20.009510005309 BACKREST COVERBACKREST COVER
-
20,010510004377 UPPER BACKREST AXLEUPPER BACKREST AXLE
-
20.011510004379 RONDELLE *WASHERRONDELLE *WASHER
-
20.012510004378 RUBBER SHIMRUBBER SHIM
-
20.013510005539 RH ARM, BLACKRH ARM, BLACK
-
20.014510005538 LH ARM, BLACKLH ARM, BLACK
-
20.0145250000745 TORX TRUSS M/S M8 X 30TORX TRUSS M/S M8 X 30
-
20.015250000745 TORX TRUSS M/S M8 X 30TORX TRUSS M/S M8 X 30
-
20.016250200128 FLAT WASHER 8 MMFLAT WASHER 8 MM
-
20.031293750008 TIE-RAP 368 MMTIE-RAP 368 MM
-
20,040515176766 SEAT HARNESSSEAT HARNESS
-
20.041414115200 TIE-RAP 180 MMTIE-RAP 180 MM
-
20.043515175283 HOUSING SUPPORTHOUSING SUPPORT
-
20.046271000558 SPACERSPACER
-
140510005848 RH HANDLE ASS'Y. Includes 140 to 140,04RH HANDLE ASS'Y. Includes 140 to 140,04
-
140.002250000721 TORX-TRUSS M/S BZN NYLON PATCHTORX-TRUSS M/S BZN NYLON PATCH
-
140.003293100003 NUT M6NUT M6
-
140.004510004449 GAINE POIGNEE *GRIP-HANDLEGAINE POIGNEE *GRIP-HANDLE
-
140.005510005009 RH AIR DEFLECTORRH AIR DEFLECTOR
-
140.007515176999 HEATED ELEMENTHEATED ELEMENT
-
140.0075515175506 GAINE EXP.TRES.*TUBING-EXP.BRAIDEDGAINE EXP.TRES.*TUBING-EXP.BRAIDED
-
140.0115250000725 SCREW M4 X 16SCREW M4 X 16
-
140.02510005814 RENFORT DE POIG*HANDLE REINFORRENFORT DE POIG*HANDLE REINFOR
-
140.04515175494 MALE HOUSING, 3 CIRCUITSMALE HOUSING, 3 CIRCUITS
-
150510005847 LH HANDLE ASS'Y. Includes 150 to 150,04LH HANDLE ASS'Y. Includes 150 to 150,04
-
150.002250000721 TORX-TRUSS M/S BZN NYLON PATCHTORX-TRUSS M/S BZN NYLON PATCH
-
150.003293100003 NUT M6NUT M6
-
150.004510004449 GAINE POIGNEE *GRIP-HANDLEGAINE POIGNEE *GRIP-HANDLE
-
150.005510005010 LH AIR DEFLECTORLH AIR DEFLECTOR
-
150.007515176999 HEATED ELEMENTHEATED ELEMENT
-
150.0075515175506 GAINE EXP.TRES.*TUBING-EXP.BRAIDEDGAINE EXP.TRES.*TUBING-EXP.BRAIDED
-
150,010510005036 HOUSING SWITCHHOUSING SWITCH
-
150.011250000720 TORX SCREW K50 X 16TORX SCREW K50 X 16
-
150.0115250000725 SCREW M4 X 16SCREW M4 X 16
-
150.012510004413 ROCKER SWITCHROCKER SWITCH
-
150.013510004414 SWITCH PROTECTORSWITCH PROTECTOR
-
150.014515176697 HANDLE HARNESSHANDLE HARNESS
-
150,020510005814 RENFORT DE POIG*HANDLE REINFORRENFORT DE POIG*HANDLE REINFOR
-
150.021516003937 CONNECTOR DECALCONNECTOR DECAL
-
150.022516003816 HEATED HANDLE DECALHEATED HANDLE DECAL
-
150.04515176033 MALE CONNECTORMALE CONNECTOR
-
155510004405 MOULDINGMOULDING
-
160250000745 TORX TRUSS M/S M8 X 30TORX TRUSS M/S M8 X 30
