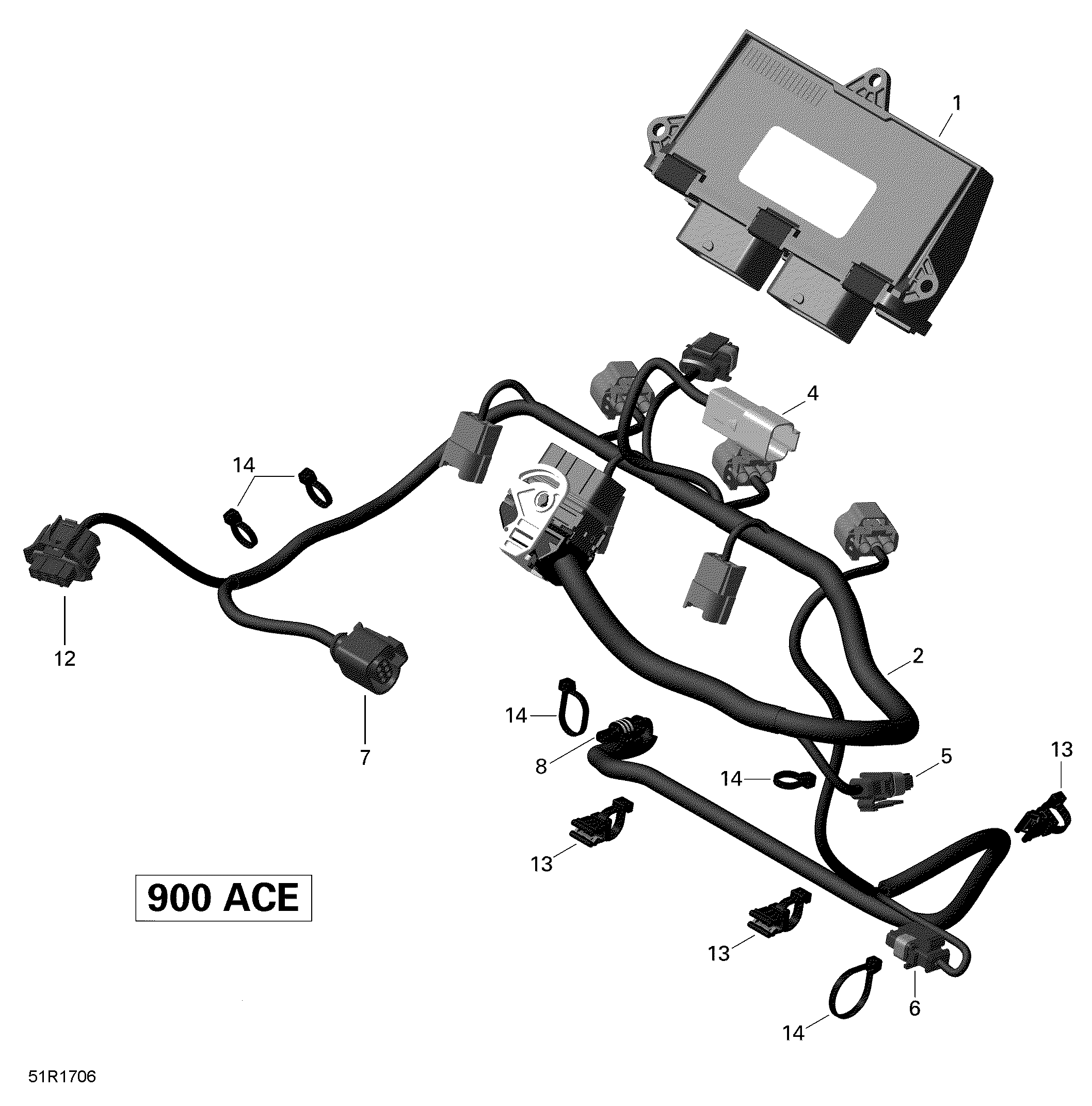

10- Engine Harness and Electronic Module - Package LE для BRP Ski-Doo 3- GRAND TOURING 900 ACE 2018 - 2018
-
№АртикулНазвание
-
1420666934 ECM, Engine Control Module. Package LEECM, Engine Control Module. Package LE
-
2420264420 Engine Wiring Harness Ass'y. Includes 2 to 12Engine Wiring Harness Ass'y. Includes 2 to 12
-
4278000635 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
5278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
6278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
7515177406 Female HousingFemale Housing
-
7A415130049 TerminalTerminal
-
7b710001186 SealSeal
-
8278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
12515176410 Male ConnectorMale Connector
-
12a710001137 TerminalTerminal
-
12b710001135 SealSeal
-
13420951650 Cable ClampCable Clamp
-
14420866714 Tie RapTie Rap
