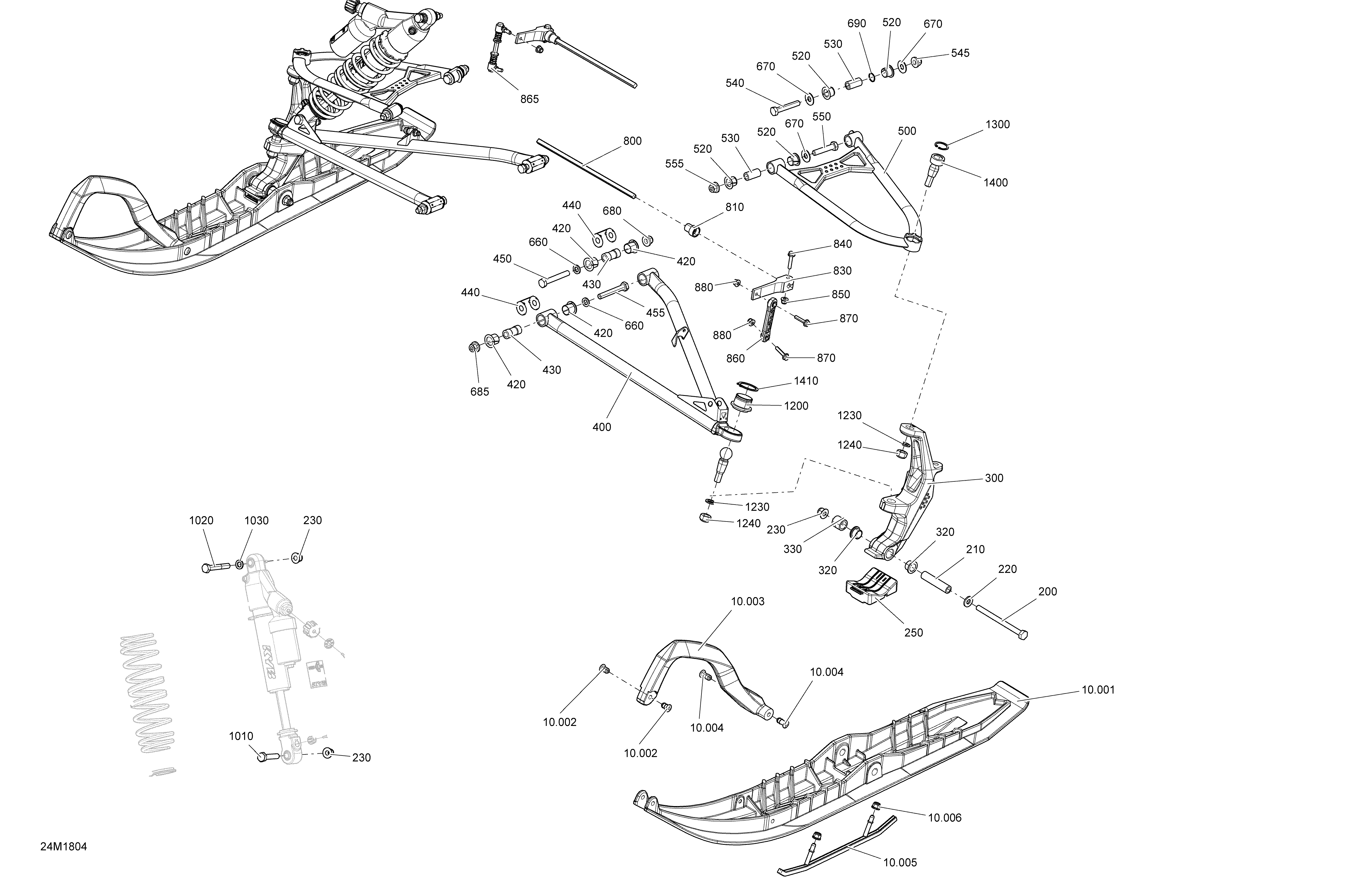

07- Front Suspension And Ski MXZ - 850 E-TEC - Package TNT для BRP Ski-Doo 4- MXZ 850 E-TEC - 2018
-
№АртикулНазвание
-
10.001505072855 Deep Black RH Pilot 5.7 SkiDeep Black RH Pilot 5.7 Ski
-
10.001505072854 Deep Black LH Pilot 5.7 SkiDeep Black LH Pilot 5.7 Ski
-
10.002505071812 RetainerRetainer
-
10.003505070963 Black HandleBlack Handle
-
10.004505072133 RetainerRetainer
-
10.005860201044 Carbide Runner KitCarbide Runner Kit
-
10.006233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210505073691 Ski AxleSki Axle
-
300505073708 Black - LH Ski Leg 10Black - LH Ski Leg 10
-
310505073711 Black - RH Ski Leg 10Black - RH Ski Leg 10
-
320505072690 Leg BushingLeg Bushing
-
330505073779 Ski StopperSki Stopper
-
400505074194 RH Lower Arm 42''RH Lower Arm 42''
-
410505074193 LH Lower Arm 42''LH Lower Arm 42''
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
450250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
470505073723 Wear PlateWear Plate
-
480505073844 PlatePlate
-
500505073724 LH Upper Arm 42''LH Upper Arm 42''
-
510505073728 RH Upper Arm 42''RH Upper Arm 42''
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073819 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505073731 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1020250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1200505074009 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
