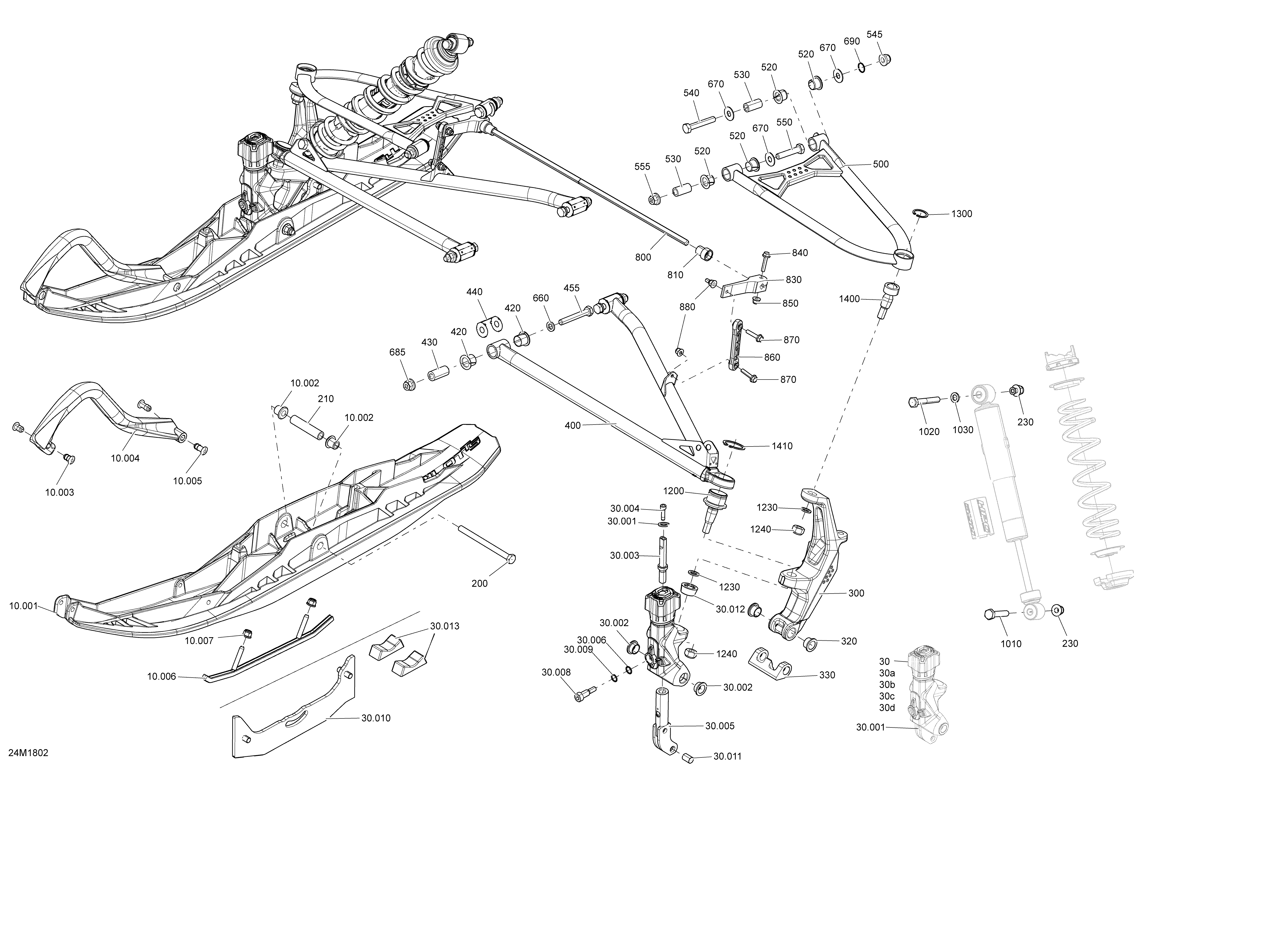

07- Front Suspension And Ski MXZ Engine 600HO E-TEC, 900 ACE, 1200 4-TEC - Package Blizzard для BRP Ski-Doo 5- MXZ 900 ACE - 2018
-
№АртикулНазвание
-
10.001505073796 Deep Black, RH Pilot TS Ski. Includes 10 to 10,005Deep Black, RH Pilot TS Ski. Includes 10 to 10,005
-
10.001505073786 Deep Black, LH Pilot TS SkiDeep Black, LH Pilot TS Ski
-
10.002505071781 Ski BushingSki Bushing
-
10.003505071812 Retainer 17mm longRetainer 17mm long
-
10.004505072102 White HandleWhite Handle
-
10.005505072133 Retainer 23mm LongRetainer 23mm Long
-
30415130043 Knob Adjuster Repair Kit. Includes 30 TO 30dKnob Adjuster Repair Kit. Includes 30 TO 30d
-
30.001505073789 Black LH Support. Includes 30.001 to 30.001aBlack LH Support. Includes 30.001 to 30.001a
-
30.001505073792 Black RH Support. Includes 30.001 to 30.001aBlack RH Support. Includes 30.001 to 30.001a
-
30,001a234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
30.002505073773 BushingBushing
-
30.003505073771 ShaftShaft
-
30.004250000925 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
30.005505073761 TipTip
-
30.006293370109 CirclipCirclip
-
30.007505073785 SpringSpring
-
30.008505073767 ScrewScrew
-
30.009293300013 O-RingO-Ring
-
30.01860201178 Carbide Runner Kit, Ajustable TS SkiCarbide Runner Kit, Ajustable TS Ski
-
30.011505073782 PinPin
-
30.012505073772 Black Rubber GrommetBlack Rubber Grommet
-
30.013505073788 Ski StopperSki Stopper
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
300505073867 White LH Ski LegWhite LH Ski Leg
-
310505073868 White RH Ski LegWhite RH Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
400505073426 RH Lower Arm 42'', Black EpoxyRH Lower Arm 42'', Black Epoxy
-
410505073420 LH Lower Arm 42'', Black EpoxyLH Lower Arm 42'', Black Epoxy
-
420505072208 BushingBushing
-
430505072209 SleeveSleeve
-
440505072634 Wear PlateWear Plate
-
450250000291 Screw Hex. M10 X 1.25 X 70Screw Hex. M10 X 1.25 X 70
-
455250000291 Screw Hex. M10 X 1.25 X 70Screw Hex. M10 X 1.25 X 70
-
500505073412 LH Upper Arm 42'', Black EpoxyLH Upper Arm 42'', Black Epoxy
-
510505073463 Black RH Upper Arm, 42''Black RH Upper Arm, 42''
-
520505072250 BushingBushing
-
530505072143 SleeveSleeve
-
540250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000289 Screw Hex. M10 X 1.25 X 50Screw Hex. M10 X 1.25 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505072602 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505072394 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Sway Bar Double Joint LinkSway Bar Double Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010207005554 Hex Screw M10 X 1.5 X 55Hex Screw M10 X 1.5 X 55
-
1020207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
