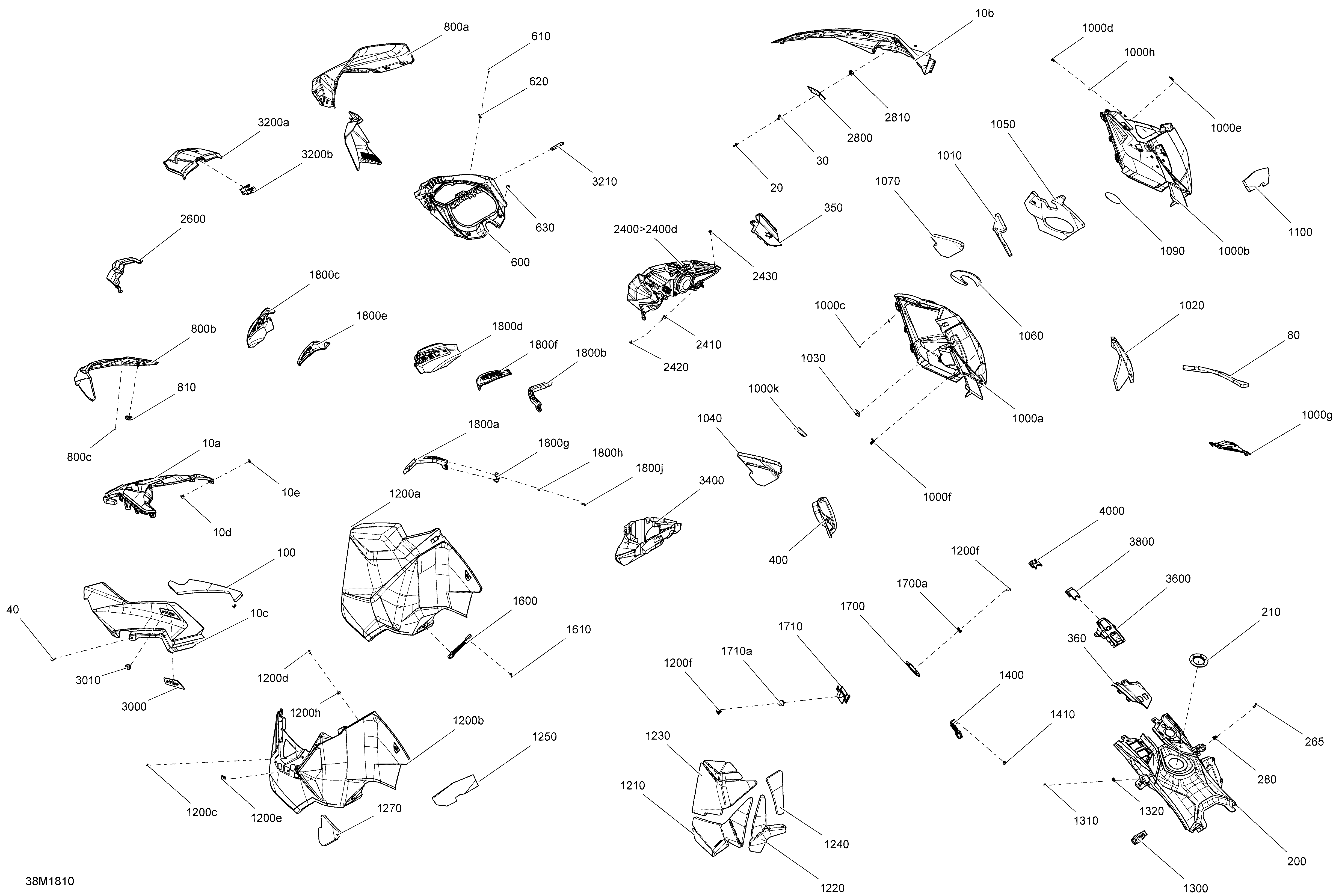

09- Hood Renegade 1200 4-TEC для BRP Ski-Doo 7- RENEGADE 1200 4-TEC - 2018
-
№АртикулНазвание
-
10a517304796 Black Center Hood. Package Enduro, Adrenaline & XBlack Center Hood. Package Enduro, Adrenaline & X
-
10a517305636 Green Center Hood. Package XGreen Center Hood. Package X
-
10b517305634 Red RH Hood. Package EnduroRed RH Hood. Package Enduro
-
10b517305239 Black Hood RH. Package Enduro, Adrenaline & XBlack Hood RH. Package Enduro, Adrenaline & X
-
10b517306411 RH Hood. Package XRH Hood. Package X
-
10c517305633 Red LH Hood. Package EnduroRed LH Hood. Package Enduro
-
10c517305240 Black Hood LH. Package Enduro, Adrenaline & XBlack Hood LH. Package Enduro, Adrenaline & X
-
10c517306412 LH Hood. Package XLH Hood. Package X
-
10d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e517124300 WasherWasher
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
80517305090 RH Rear Hood FoamRH Rear Hood Foam
-
100517305091 LH Rear Hood FoamLH Rear Hood Foam
-
200517305557 White Rear Console. Package AdrenalineWhite Rear Console. Package Adrenaline
-
200517305641 Black Rear Console. Package Enduro, Adrenaline & XBlack Rear Console. Package Enduro, Adrenaline & X
-
200517305643 Green Rear Console. Package XGreen Rear Console. Package X
-
200517305786 Rear Console. Package EnduroRear Console. Package Enduro
-
210517304518 Console NutConsole Nut
-
265250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
350517305549 RH Front Console. Package EnduroRH Front Console. Package Enduro
-
400517305061 Deep Black RH Console. Except EnduroDeep Black RH Console. Except Enduro
-
600517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
610250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
620250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
630250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
800a517304921 Windshield 235mm. Package XWindshield 235mm. Package X
-
800a517304927 Windshield 345mm. Package Enduro & AdrenalineWindshield 345mm. Package Enduro & Adrenaline
-
800b517304922 Short Windshield Support. Package XShort Windshield Support. Package X
-
800b860200944 Support. Package Enduro & AdrenalineSupport. Package Enduro & Adrenaline
-
800c732610072 Push NutPush Nut
-
800d517304928 RH Air Deflector. Package Enduro & AdrenalineRH Air Deflector. Package Enduro & Adrenaline
-
800e517304929 LH Air Deflector. Package Enduro & AdrenalineLH Air Deflector. Package Enduro & Adrenaline
-
800f250000720 Torx Screw K50 X 16. Package Enduro & AdrenalineTorx Screw K50 X 16. Package Enduro & Adrenaline
-
800g250200025 Washer M5. Package Enduro & AdrenalineWasher M5. Package Enduro & Adrenaline
-
800h250200024 Rubber Washer 5 mm. Package Enduro & AdrenalineRubber Washer 5 mm. Package Enduro & Adrenaline
-
810517303756 GrommetGrommet
-
1000a517305714 Black Panel RH. Package EnduroBlack Panel RH. Package Enduro
-
1000a517305714 Black Panel RH. Package Adrenaline & XBlack Panel RH. Package Adrenaline & X
-
1000a517305905 White Panel RH. Package AdrenalineWhite Panel RH. Package Adrenaline
-
1000a517306418 RH.Panel. Package EnduroRH.Panel. Package Enduro
-
1000b517304802 Black Panel Trim RH. Package EnduroBlack Panel Trim RH. Package Enduro
-
1000b517305058 Black Panel Trim RH. Package Adrenaline & XBlack Panel Trim RH. Package Adrenaline & X
-
1000b517305058 Black Panel Trim RH. Package AdrenalineBlack Panel Trim RH. Package Adrenaline
-
1000b517304802 Black Panel Trim RH. Package EnduroBlack Panel Trim RH. Package Enduro
-
1000c250100158 Push NutPush Nut
-
1000d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305504 Pin. Package EnduroPin. Package Enduro
-
1000f517305504 Pin. Package Adrenaline & XPin. Package Adrenaline & X
-
1000f517305734 Pin. Package AdrenalinePin. Package Adrenaline
-
1000f517305734 Pin. Package EnduroPin. Package Enduro
-
1000g517305715 Grill. Package EnduroGrill. Package Enduro
-
1000g517305715 Grill. Package Adrenaline & XGrill. Package Adrenaline & X
-
1000g517304935 RH Panel Vent Grid. Package AdrenalineRH Panel Vent Grid. Package Adrenaline
-
1000g517304935 RH Panel Vent Grid. Package EnduroRH Panel Vent Grid. Package Enduro
-
1000h517124300 WasherWasher
-
1000j517305731 Bumper. Package EnduroBumper. Package Enduro
-
1000j517305731 Bumper. Package Adrenaline & XBumper. Package Adrenaline & X
-
1010517305793 Foam Central RHFoam Central RH
-
1020517305801 Foam Rear RHFoam Rear RH
-
1030517305451 Heat ShieldHeat Shield
-
1040517305790 Foam Upper RHFoam Upper RH
-
1050517305792 Foam Lower RHFoam Lower RH
-
1060517305795 FoamFoam
-
1070517305791 FoamFoam
-
1090517305796 Rubber SheetRubber Sheet
-
1100517305794 FoamFoam
-
1200a517305717 Black LH Panel. Package Enduro, Adrenaline & XBlack LH Panel. Package Enduro, Adrenaline & X
-
1200a517305914 Orange LH Panel. Package AdrenalineOrange LH Panel. Package Adrenaline
-
1200a517306416 LH Panel. Package EnduroLH Panel. Package Enduro
-
1200b517304805 Black LH Flashing PanelBlack LH Flashing Panel
-
1200c250100158 Push NutPush Nut
-
1200d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200e517305109 Rivet PlateRivet Plate
-
1200f517305504 PinPin
-
1200g517124300 WasherWasher
-
1210517305802 FoamFoam
-
1220517305797 FoamFoam
-
1230517305798 FoamFoam
-
1240517305803 FoamFoam
-
1250517305800 FoamFoam
-
1270517305799 FoamFoam
-
1300517305279 Panel LatchPanel Latch
-
1310250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
1320250100156 Weld Nut M4Weld Nut M4
-
1400517304919 RH Panel LatchRH Panel Latch
-
1410293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1700517305724 RH Panel Clip Ass'y. Includes 1700 to 1700aRH Panel Clip Ass'y. Includes 1700 to 1700a
-
1700a517305723 RingRing
-
1710517305722 LH Panel Clip Ass'y. Includes 1710 to 1710aLH Panel Clip Ass'y. Includes 1710 to 1710a
-
1710a517305723 RingRing
-
1800a517305290 LH Arm. Package XLH Arm. Package X
-
1800b517305293 RH Arm. Package XRH Arm. Package X
-
1800c517305291 LH Deflector. Package XLH Deflector. Package X
-
1800d517305294 RH Deflector. Package XRH Deflector. Package X
-
1800e517305601 Black - LH Cap. Package XBlack - LH Cap. Package X
-
1800f517305602 Black - RH Cap. Package XBlack - RH Cap. Package X
-
1800e517306405 Manta Green, LH Cap. Package XManta Green, LH Cap. Package X
-
1800f517306406 Manta Green, RH Cap. Package XManta Green, RH Cap. Package X
-
1800g517305296 Bride. Package XBride. Package X
-
1800h250000760 Torx Screw Truss Head K50 X 20. Package XTorx Screw Truss Head K50 X 20. Package X
-
1800j250000724 Torx Screw M5 X 20. Package XTorx Screw M5 X 20. Package X
-
2400517306180 Headlamp. Includes 2400 to 2400fHeadlamp. Includes 2400 to 2400f
-
2400a219400070 CapCap
-
2400b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400c219800282 Holder BracketHolder Bracket
-
2400d219800281 SpringSpring
-
2400e415130194 HarnessHarness
-
2400f710002033 HolderHolder
-
2410250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
2420250100035 Jack Nut M5Jack Nut M5
-
2430250000725 Screw M4 X 16Screw M4 X 16
-
2600517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
2800517304923 RH Air Deflector Console. Package XRH Air Deflector Console. Package X
-
2810517302841 Grommet. Package Enduro & AdrenalineGrommet. Package Enduro & Adrenaline
-
3000517304924 LH Air Deflector Console. Package XLH Air Deflector Console. Package X
-
3010517302841 Grommet. Package Enduro & AdrenalineGrommet. Package Enduro & Adrenaline
-
3200a517304912 Upper Storage Access CoverUpper Storage Access Cover
-
3200b517304917 Cover LatchCover Latch
-
3210517305157 Seal JointSeal Joint
-
3400517305095 TrunkTrunk
-
3600517304970 Console SupportConsole Support
-
3800517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
4000517305148 Support Console CapSupport Console Cap
