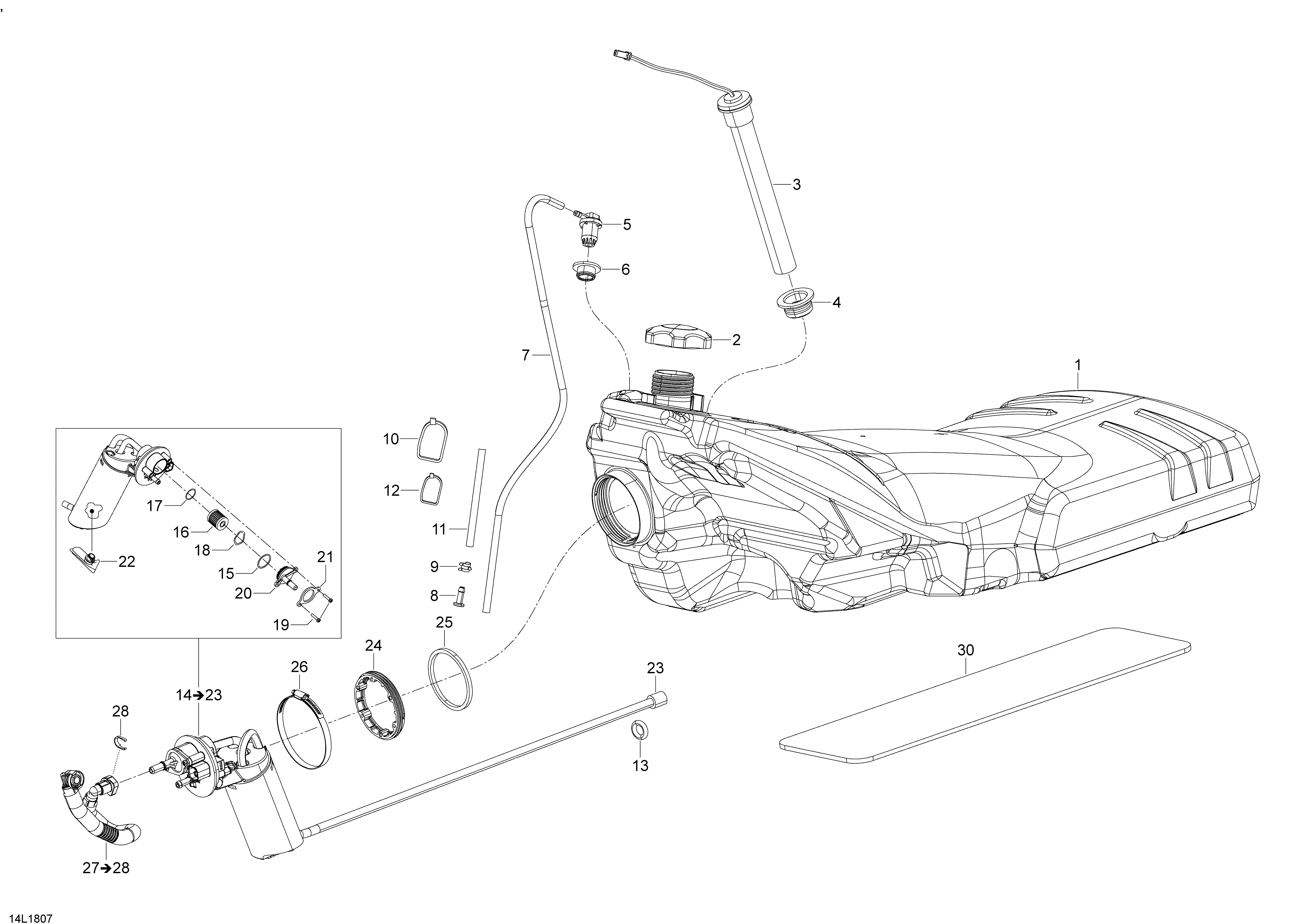

02- Fuel ACE & 4-TEC для BRP Ski-Doo 3- SKANDIC 600 ACE - 2018
-
№АртикулНазвание
-
1513033757 Fuel TankFuel Tank
-
2513033720 Fuel Tank Cap. North AmericaFuel Tank Cap. North America
-
2513033723 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
3513033538 Fuel SensorFuel Sensor
-
4293720113 GrommetGrommet
-
5513033842 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose, PolyurethaneHose, Polyurethane
-
9414554800 Spring ClampSpring Clamp
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40414227300 Clip. Not ShownClip. Not Shown
-
11504153468 Protector TubeProtector Tube
-
12293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13293300184 O RingO Ring
-
14513033694 Fuel Pump Ass'y. Includes 300 to 300,009Fuel Pump Ass'y. Includes 300 to 300,009
-
15415129509 O-RingO-Ring
-
16415129510 Fuel FilterFuel Filter
-
17415129511 O-RingO-Ring
-
18415129512 Wave WasherWave Washer
-
19415129513 ScrewScrew
-
20415129685 CoverCover
-
21415129569 Fuel Pump RingFuel Pump Ring
-
22415129451 Fuel FilterFuel Filter
-
23414872100 Fuel FilterFuel Filter
-
24513033180 RingRing
-
25513033334 GasketGasket
-
27513033582 Hose Ass'y. Engine 602. Includes 500 to 500,001Hose Ass'y. Engine 602. Includes 500 to 500,001
-
27513033582 Hose Ass'y. Engine 903. Includes 500 to 500,001Hose Ass'y. Engine 903. Includes 500 to 500,001
-
27513033583 Hose Ass'y. Engine 1203. Includes 500 to 500,001Hose Ass'y. Engine 1203. Includes 500 to 500,001
-
28513033135 Locking ClipLocking Clip
-
40293850125 Open Clamp. Engine 1203. Not ShownOpen Clamp. Engine 1203. Not Shown
-
30513033788 Insulate FoamInsulate Foam
