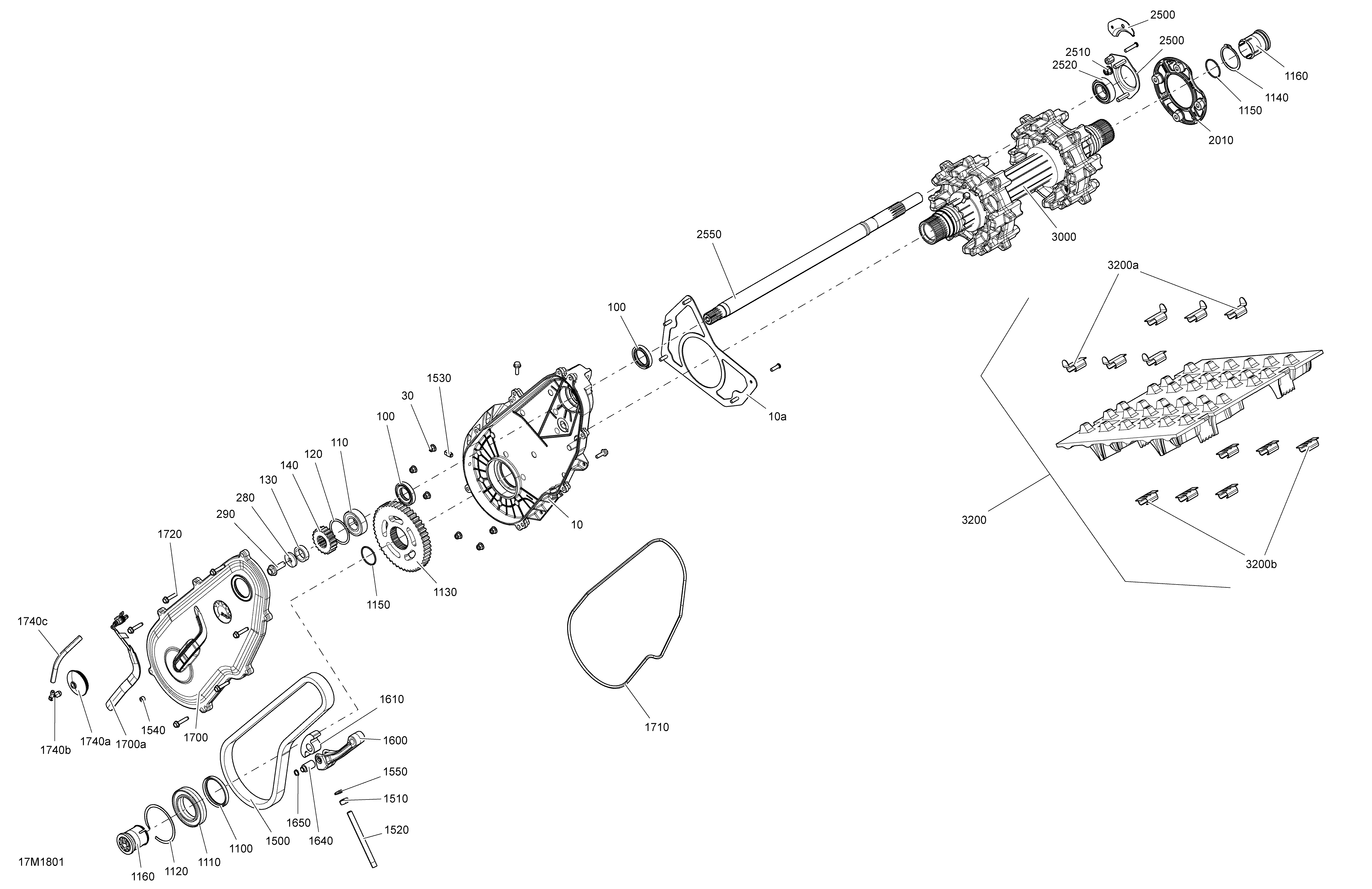

05- Drive Tundra - 550F для BRP Ski-Doo 1- TUNDRA 550F - 2018
-
№АртикулНазвание
-
10504153181 Chaincase. Includes 10 to 10aChaincase. Includes 10 to 10a
-
10a518325816 PlatePlate
-
100293250175 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504152031 Sprocket, 19 TeethSprocket, 19 Teeth
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
1140504152572 CirclipCirclip
-
1150293300122 O-RingO-Ring
-
1160504152619 Magnetic CapMagnetic Cap
-
1500504152579 Drive Chain, 102 LinksDrive Chain, 102 Links
-
1510232006414 Hex. Nut M10Hex. Nut M10
-
1520504152602 Adjustment ScrewAdjustment Screw
-
1530504152636 Magnetic PlugMagnetic Plug
-
1550250200100 Bonded WasherBonded Washer
-
1600504153429 Tensioner chainTensioner chain
-
1610504152739 Slider ChainSlider Chain
-
1640504152841 Tensioner AxleTensioner Axle
-
1650504152282 CirclipCirclip
-
1700504153147 Chaincase Cover Ass'y. Includes 1700 to 1700aChaincase Cover Ass'y. Includes 1700 to 1700a
-
1700a504152896 SensorSensor
-
1710293300130 O-RingO-Ring
-
1720250000934 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
1740a504152860 CapCap
-
1740b414580700 Male ConnectorMale Connector
-
1740c415080200 Hose, PolyurethaneHose, Polyurethane
-
2010504153426 Retaining RingRetaining Ring
-
2020293350059 Ball BearingBall Bearing
-
2030293300122 O-RingO-Ring
-
2040504152619 Magnetic CapMagnetic Cap
-
2040504152619 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153185 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2520293350074 Ball BearingBall Bearing
-
2550504153000 CountershaftCountershaft
-
3000504153083 Drive Axle Ass'yDrive Axle Ass'y
-
3200504152761 Track Ass'y, 16X154X1.5CH. Package LT. Includes 3200 to 3200bTrack Ass'y, 16X154X1.5CH. Package LT. Includes 3200 to 3200b
-
3200504152907 Track Ass'y, 16X137X1.2C. Package Sport. Includes 3200 to 3200bTrack Ass'y, 16X137X1.2C. Package Sport. Includes 3200 to 3200b
-
3200a415129222 Track Guide. Package LTTrack Guide. Package LT
-
3200a415129528 Track Guide. Package SportTrack Guide. Package Sport
-
3200b504152652 Cleat. Package LTCleat. Package LT
-
3200b504152651 Cleat. Package SportCleat. Package Sport
