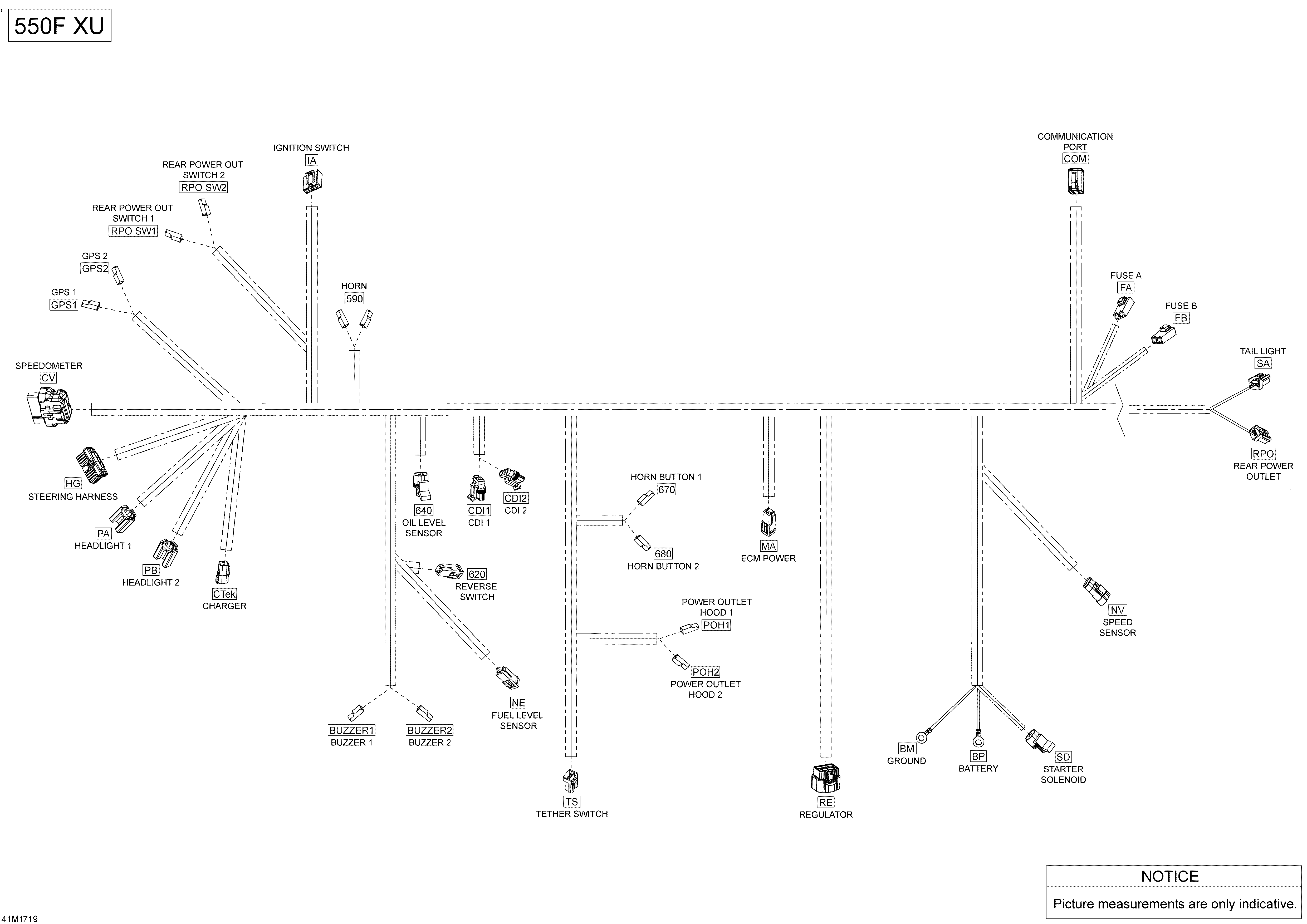

10- Electrical Harness 2018 для BRP Ski-Doo 4- TUNDRA WT 550F - 2018
-
№АртикулНазвание
-
1515177505 Main Harness. Includes 1 To TSMain Harness. Includes 1 To TS
-
2515175442 Tubing 6 mmTubing 6 mm
-
2409901700 Tubing 9 mmTubing 9 mm
-
2415079900 Tubing 10 mmTubing 10 mm
-
2409901800 Tubing 13 mmTubing 13 mm
-
2415080000 Tubing 16 mmTubing 16 mm
-
2409901600 Tubing 19 mmTubing 19 mm
-
2409902200 Tubing 25 mmTubing 25 mm
-
590515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
590515175231 Female TerminalFemale Terminal
-
620515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
620515175231 Female TerminalFemale Terminal
-
640278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
640278001114 Female TerminalFemale Terminal
-
670409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
670409010100 Female TerminalFemale Terminal
-
680409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
680409010100 Female TerminalFemale Terminal
-
BM278000992 Open BarrelOpen Barrel
-
BP278000992 Open BarrelOpen Barrel
-
BUZZER1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
BUZZER1409010100 Female TerminalFemale Terminal
-
BUZZER2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
BUZZER2409010100 Female TerminalFemale Terminal
-
CDI1409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
CDI1278001014 Female TerminalFemale Terminal
-
CDI1278001013 Wire SealWire Seal
-
CDI2409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CDI2278001014 Female TerminalFemale Terminal
-
CDI2278001013 Wire SealWire Seal
-
COM515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM278000632 Female TerminalFemale Terminal
-
COM293000052 Sealing CapSealing Cap
-
CTEK278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
CTEK278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CTEK515175568 Male TerminalMale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175803 Wire SealWire Seal
-
CV515175804 BlockBlock
-
CV515175805 LockLock
-
CV515175806 Female TerminalFemale Terminal
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
FA409004200 Female TerminalFemale Terminal
-
FA409004000 Fuse HolderFuse Holder
-
FA710000992 ClipClip
-
FB409004200 Female TerminalFemale Terminal
-
FB409004000 Fuse HolderFuse Holder
-
FB710000992 ClipClip
-
GPS1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
GPS1409010100 Female TerminalFemale Terminal
-
GPS2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
GPS2409010100 Female TerminalFemale Terminal
-
HG515175350 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
HG515175231 Female TerminalFemale Terminal
-
HG515175282 Female TerminalFemale Terminal
-
IA710000272 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
IA710000273 Lock, 4 CircuitsLock, 4 Circuits
-
IA710000274 Female TerminalFemale Terminal
-
MA515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
MA515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
MA278000632 Female TerminalFemale Terminal
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NV710000568 HousingHousing
-
NV515176164 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV515176621 Wire SealWire Seal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
POH1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
POH1409010100 Female TerminalFemale Terminal
-
POH2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
POH2409010100 Female TerminalFemale Terminal
-
RE515176530 ConnectorConnector
-
RE515176531 TerminalTerminal
-
RE515176594 SealSeal
-
RE515176681 LockLock
-
RPO515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
RPO515175232 Male TerminalMale Terminal
-
RPOSW1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
RPOSW1409010100 Female TerminalFemale Terminal
-
RPOSW2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
RPOSW2409010100 Female TerminalFemale Terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SD278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
SD278001114 Female TerminalFemale Terminal
-
TS515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
TS515175231 Female TerminalFemale Terminal
