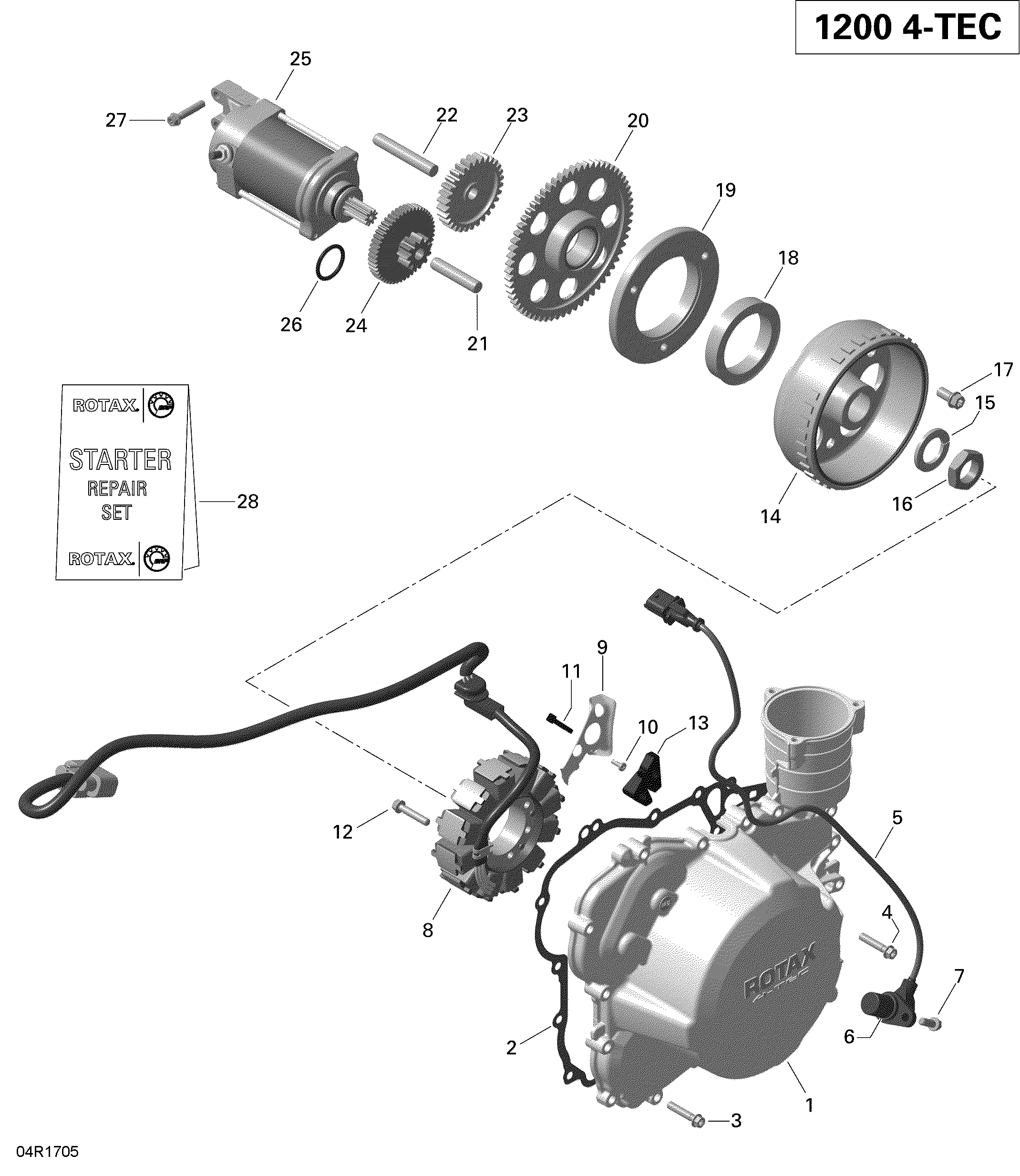

03- Magneto and Electric Starter - 1200iTC 4-TEC для BRP Ski-Doo 007 - EXPEDITION LE-SE 1200 4-TEC - 2019
-
№АртикулНазвание
-
1420611833 CoverCover
-
2420430750 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
5420966570 Crankshaft Position Sensor Ass'y. Includes 5 to 6Crankshaft Position Sensor Ass'y. Includes 5 to 6
-
6420431580 O-RingO-Ring
-
7420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
8420892378 Stator Ass'y. Includes 8 to 11Stator Ass'y. Includes 8 to 11
-
9420951192 Cable HolderCable Holder
-
11420651396 Tie RapTie Rap
-
12420440649 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
13420860052 SpacerSpacer
-
14420892361 Magneto FlywheelMagneto Flywheel
-
15420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
16420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
17420440854 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
18420659113 Sprag ClutchSprag Clutch
-
19420659266 Housing Sprag ClutchHousing Sprag Clutch
-
20420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
21420229302 Location PinLocation Pin
-
22420229475 Needle PinNeedle Pin
-
23420634606 Gear, 30 TeethGear, 30 Teeth
-
24420634741 Double GearDouble Gear
-
25420893531 Starter Ass'y. Includes 25 to 26Starter Ass'y. Includes 25 to 26
-
26420250145 O-RingO-Ring
-
27420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
28420881140 Carbon Brush SetCarbon Brush Set
