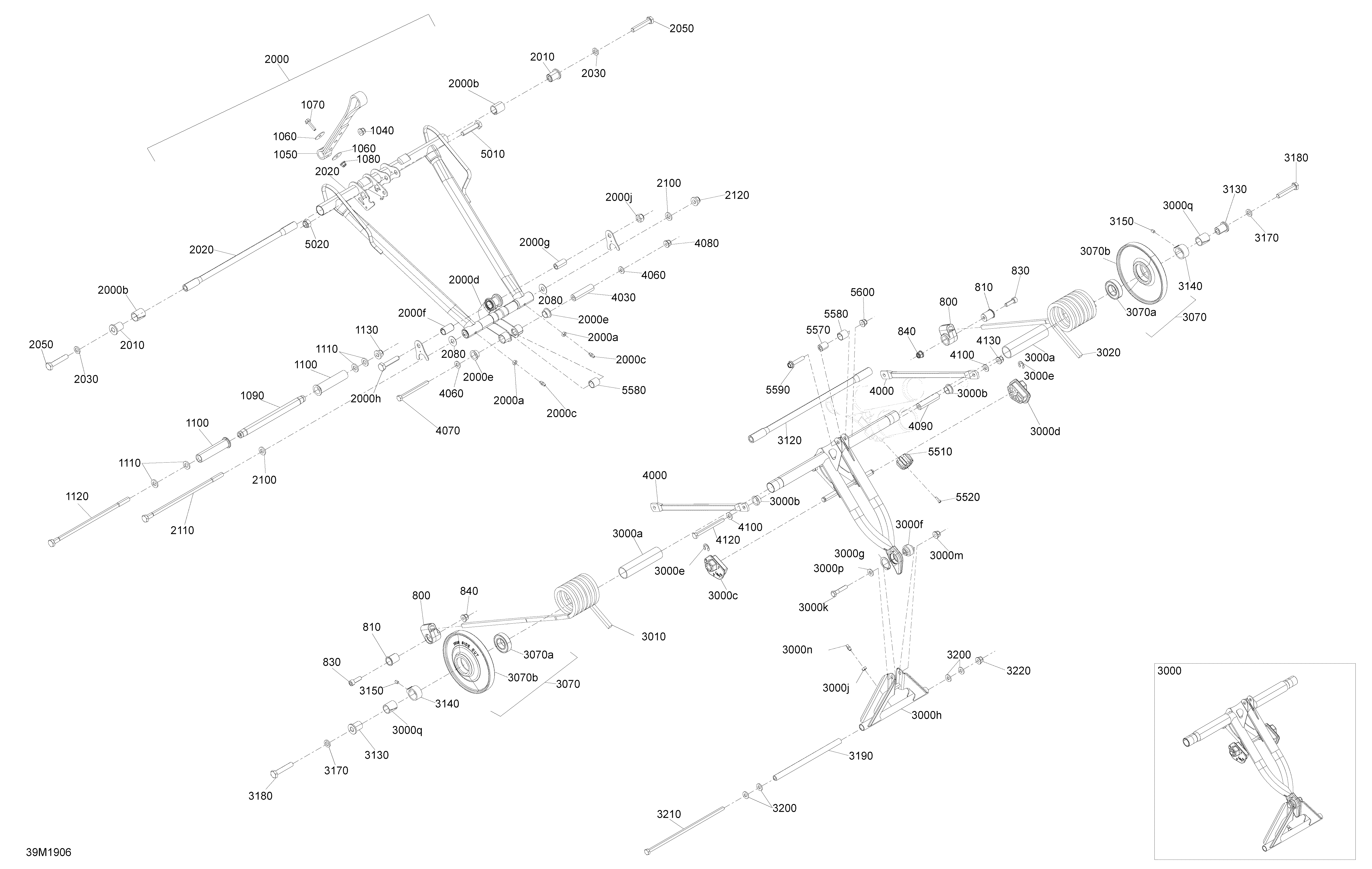

08- Rear Suspension - Package 146'' - Upper Section для BRP Ski-Doo 002 - FREERIDE 146 850 E-TEC - 2019
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1040233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1050503194679 Stopper StrapStopper Strap
-
1060503193995 WasherWasher
-
1070207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
1080233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1090503194937 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110503192494 WasherWasher
-
1120503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
1130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1100503191259 Center BushingCenter Bushing
-
1200503193853 Black Runner ReinforcementBlack Runner Reinforcement
-
1210503192494 WasherWasher
-
1220207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
1230233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
2000503195197 Front Arm Ass'y. Includes 2000 to 2000jFront Arm Ass'y. Includes 2000 to 2000j
-
2000a232061404 Hexagonal Nut M6Hexagonal Nut M6
-
2000b503191556 Extended BushingExtended Bushing
-
2000c408200700 Grease FittingGrease Fitting
-
2000d503193464 RockerRocker
-
2000e503191555 Swivel BushingSwivel Bushing
-
2000f503193037 BushingBushing
-
2000g503189282 BushingBushing
-
2000h207005044 Hex. Screw M10 X 1.5 X 50Hex. Screw M10 X 1.5 X 50
-
2000j233601416 Elastic Locking Nut M10 X 1.5Elastic Locking Nut M10 X 1.5
-
2010503194970 BushingBushing
-
2020503193441 Upper ShaftUpper Shaft
-
2030503192496 WasherWasher
-
2050250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
2080250200032 WasherWasher
-
2100250200143 Flat WasherFlat Washer
-
2110503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
2120233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3000503194296 Rear Arm Assembly. Includes 3000 to 3000qRear Arm Assembly. Includes 3000 to 3000q
-
3000a503193218 BushingBushing
-
3000b503191555 Swivel BushingSwivel Bushing
-
3000c503191565 LH Cam AdjusterLH Cam Adjuster
-
3000d503191566 RH Cam AdjusterRH Cam Adjuster
-
3000e293370013 E-CirclipE-Circlip
-
3000f503194035 Radial JointRadial Joint
-
3000g293370114 Inner CirclipInner Circlip
-
3000h503193699 Pivot Arm. Includes 3000h to 3000jPivot Arm. Includes 3000h to 3000j
-
3000j232061404 Hexagonal Nut M6Hexagonal Nut M6
-
3000k207084056 Hexagonal Screw M8 X 1.25 X 40Hexagonal Screw M8 X 1.25 X 40
-
3000m233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3000n408200700 Grease FittingGrease Fitting
-
3000p503192494 WasherWasher
-
3000q503191556 Extended BushingExtended Bushing
-
3010503192136 Black, LH Spring SquareBlack, LH Spring Square
-
3020503192137 Black, RH Spring SquareBlack, RH Spring Square
-
3070503191150 Wheel 155. Includes 3070 to 3070aWheel 155. Includes 3070 to 3070a
-
3070a503193548 Ball BearingBall Bearing
-
3070b415129780 Retaining RingRetaining Ring
-
3120503193441 Upper ShaftUpper Shaft
-
3130503194970 BushingBushing
-
3140503193439 Retaining RingRetaining Ring
-
3150206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
3180250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
3170503192496 WasherWasher
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503192900 Acceleration Link RodAcceleration Link Rod
-
4030503193993 AxleAxle
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503193993 AxleAxle
-
4100503192494 WasherWasher
-
4120503193372 Screw M8 X 90Screw M8 X 90
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
