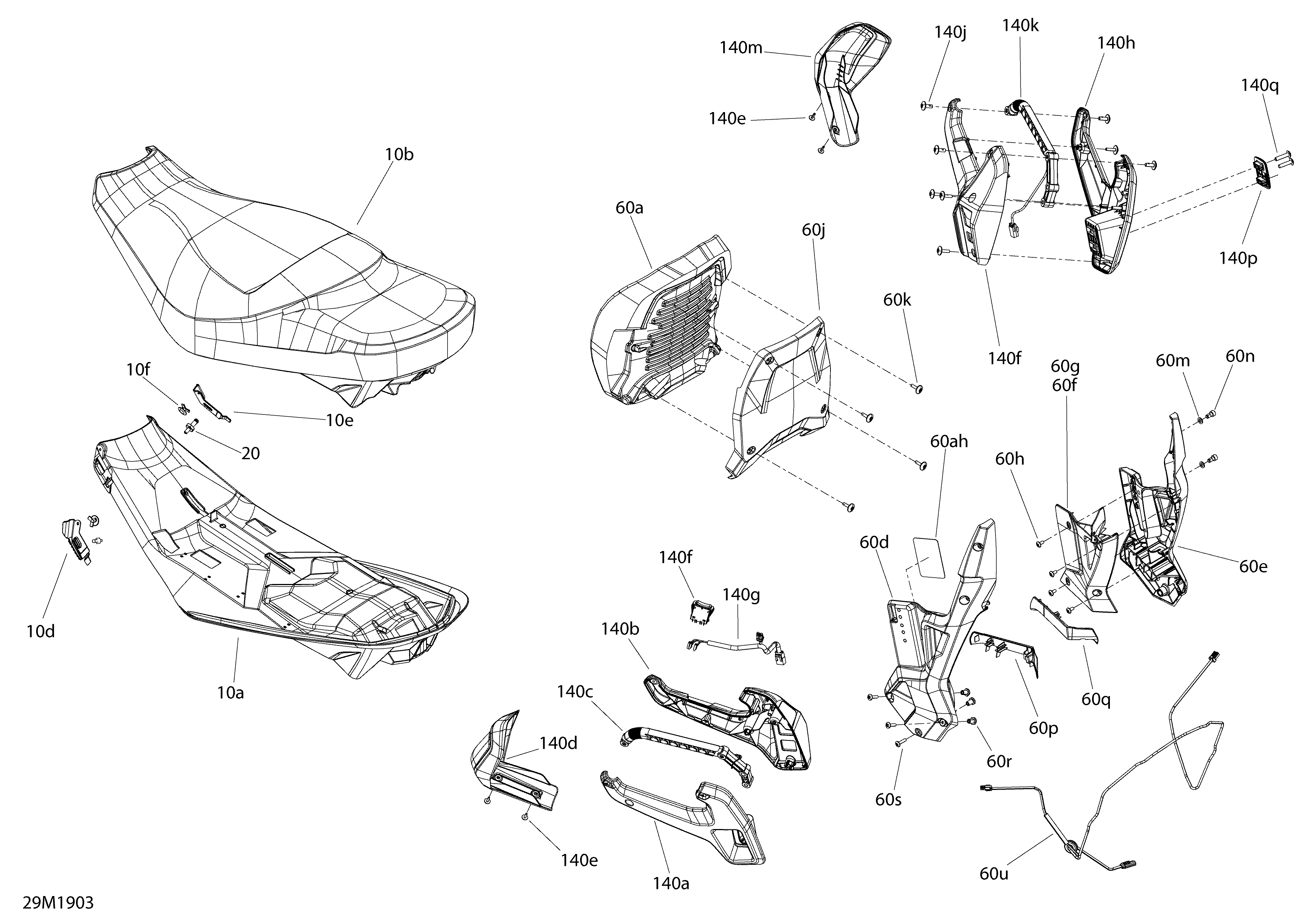

09- Seat - REV GEN4 для BRP Ski-Doo 003 - GRAND TOURING 900 ACE - 2019
-
№АртикулНазвание
-
10a510006556 1+1 Seat Base1+1 Seat Base
-
10b510006336 Seat FoamSeat Foam
-
10c510006337 Seat Cover. Not ShownSeat Cover. Not Shown
-
10d510006530 LH Seat LatchLH Seat Latch
-
10e510006531 RH Seat LatchRH Seat Latch
-
10f293150222 Pop Rivet 3/16''Pop Rivet 3/16''
-
20510006514 PinPin
-
60a510006363 Backrest FoamBackrest Foam
-
60b510006364 Backrest Cover. Not ShownBackrest Cover. Not Shown
-
60c510006777 Backrest Support. Not ShownBackrest Support. Not Shown
-
60d510006479 LH ArmLH Arm
-
60e510006480 RH ArmRH Arm
-
60f510006706 LH TrimLH Trim
-
60g510006705 RH TrimRH Trim
-
60h250000789 Torx Truss M6X14Torx Truss M6X14
-
60j510006366 Backrest TrimBackrest Trim
-
60k250000889 Screw M4 X 16Screw M4 X 16
-
60m234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
60n205081654 Screw-Socket HD.DIN.912Screw-Socket HD.DIN.912
-
60p510006169 LH Base CoverLH Base Cover
-
60q510006170 RH Base CoverRH Base Cover
-
60r511000822 InsertInsert
-
60s250001000 Torx-Truss M/S M6 X 25Torx-Truss M/S M6 X 25
-
60t517303756 Grommet. Not ShownGrommet. Not Shown
-
60u515178490 Seat Wiring HarnessSeat Wiring Harness
-
140a510006492 LH Ext. Passenger Hand HoldLH Ext. Passenger Hand Hold
-
140b510006527 LH Int. Passenger Hand HoldLH Int. Passenger Hand Hold
-
140c510006488 Passenger Heated HandholdPassenger Heated Handhold
-
140d510006495 LH Passenger Handle DeflectorLH Passenger Handle Deflector
-
140e250000889 Screw M4 X 16Screw M4 X 16
-
140f515178505 Rocker SwitchRocker Switch
-
140g515178464 Heated Grip Wiring HarnessHeated Grip Wiring Harness
-
140h510006486 RH Ext. Passenger Hand HoldRH Ext. Passenger Hand Hold
-
140j510006487 RH Int. Passenger Hand HoldRH Int. Passenger Hand Hold
-
140k510006488 Passenger Heated HandholdPassenger Heated Handhold
-
140m510006489 RH Passenger Handle DeflectorRH Passenger Handle Deflector
-
140p510006602 Passenger Handle TrimPassenger Handle Trim
-
140q250000256 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
500224061201 Flat Washer. Not ShownFlat Washer. Not Shown
-
510207361644 Hex. Screw M6 X 16, Scotch Grip. Not ShownHex. Screw M6 X 16, Scotch Grip. Not Shown
-
520207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. Not ShownHex. Flanged Screw M6 X 30, Scotch Grip. Not Shown
