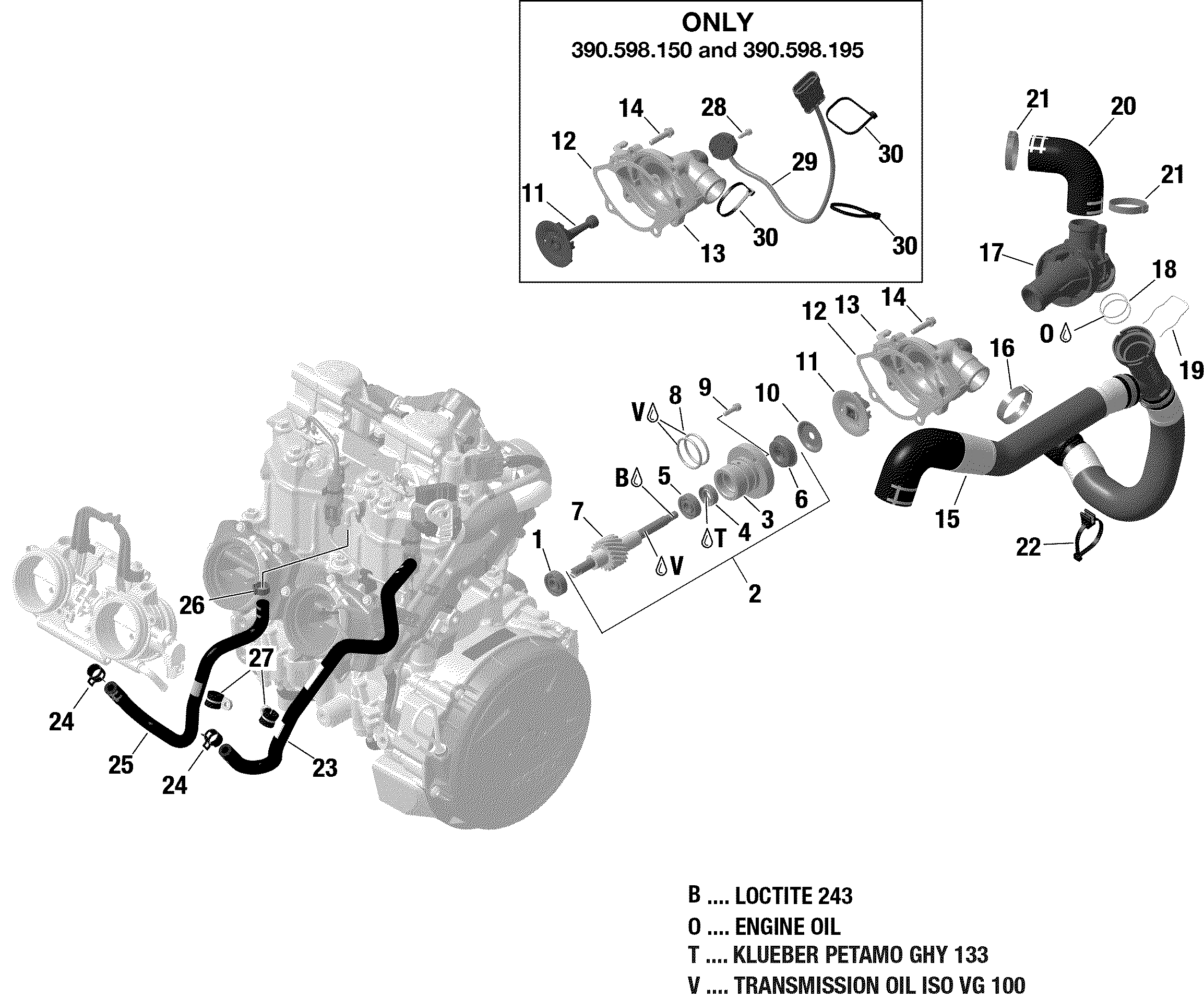

01- Engine Cooling для BRP Ski-Doo 003 - RENEGADE 600R E-TEC - Enduro - 2019
-
№АртикулНазвание
-
1420232100 Ball BearingBall Bearing
-
2>8420891479 Water Pump Shaft. Except SHOT VersionWater Pump Shaft. Except SHOT Version
-
2>8420891478 Water Pump Shaft. SHOT VersionWater Pump Shaft. SHOT Version
-
3420847933 Step CollarStep Collar
-
4420230198 Oil SealOil Seal
-
5420232100 Ball BearingBall Bearing
-
6420650370 Rotary SealRotary Seal
-
8420950890 O-RingO-Ring
-
9420840514 Allen Screw M5 x 16Allen Screw M5 x 16
-
10420944035 Cover WasherCover Washer
-
11420222507 Impeller. Except SHOT VersionImpeller. Except SHOT Version
-
11420222508 Impeller. SHOT VersionImpeller. SHOT Version
-
12420931812 GasketGasket
-
13420933633 Water Pump Housing. Except SHOT VersionWater Pump Housing. Except SHOT Version
-
13420933636 Water Pump Housing. SHOT VersionWater Pump Housing. SHOT Version
-
14420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420822803 Molded HoseMolded Hose
-
16420951293 Gear ClampGear Clamp
-
17420822835 Thermostat HousingThermostat Housing
-
18420430062 O-RingO-Ring
-
19420939344 Spring ClipSpring Clip
-
20420822820 Hose ReturnHose Return
-
21420951123 Clamp 34.9-38.1MMClamp 34.9-38.1MM
-
22420951652 Tie Rap 200 X 4.6Tie Rap 200 X 4.6
-
23420201775 Formed HoseFormed Hose
-
24420853511 ClampClamp
-
25420201771 Formed HoseFormed Hose
-
26420851458 ClampClamp
-
27420851250 ClampClamp
-
28420440292 Allen Screw M4 X12. SHOT VersionAllen Screw M4 X12. SHOT Version
-
29420864400 Angle Sensor. SHOT VersionAngle Sensor. SHOT Version
-
30293750002 Tie-Rap 142 mm. SHOT VersionTie-Rap 142 mm. SHOT Version
