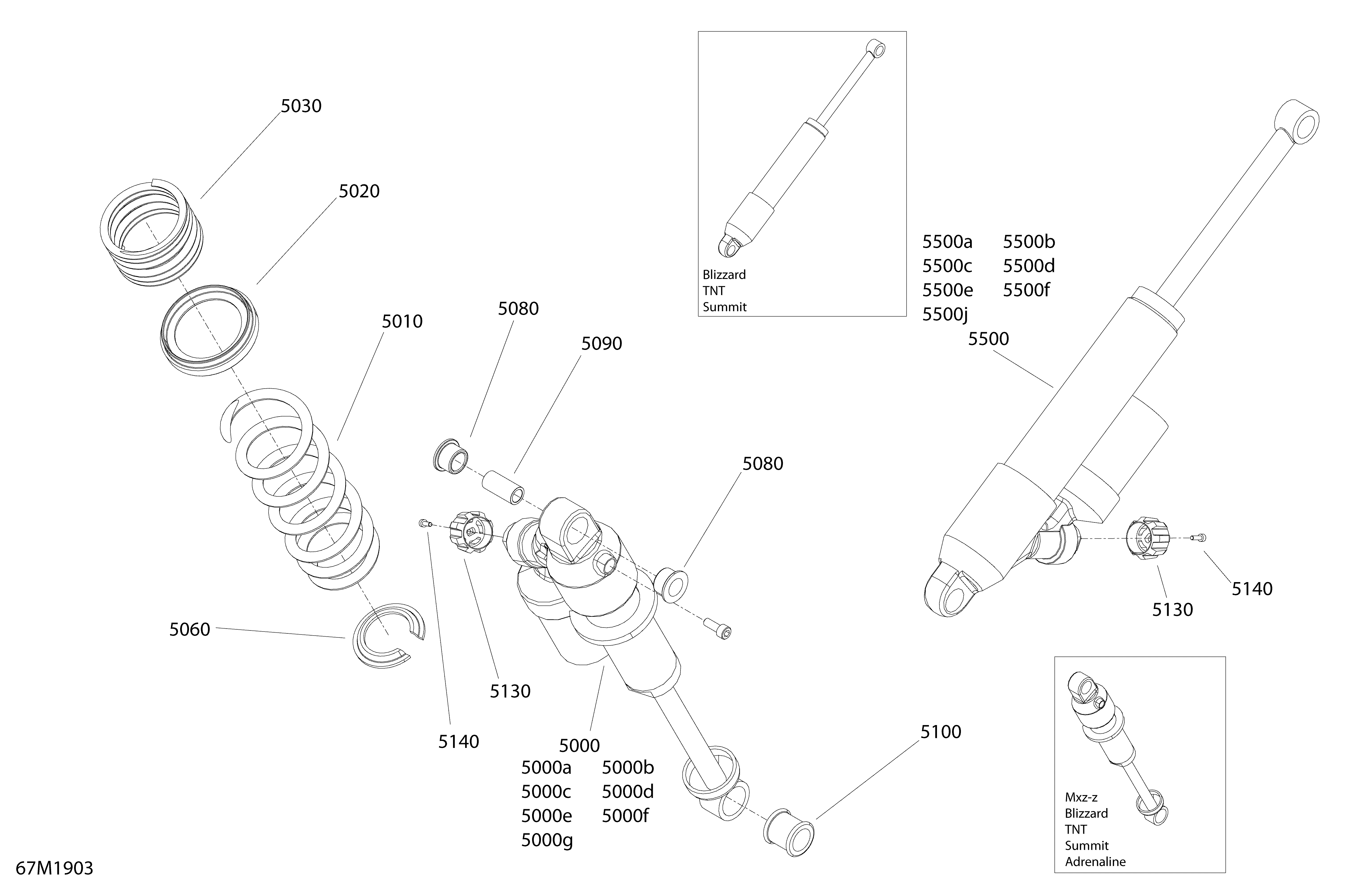

08- Rear Shocks - XRS для BRP Ski-Doo 005 - RENEGADE 850 E-TEC - Adrenaline_X_XRS - 2019
-
№АртикулНазвание
-
5000503194071 Center Shock. Includes 5000 to 5000gCenter Shock. Includes 5000 to 5000g
-
5000a415093807 O-Ring. not shownO-Ring. not shown
-
5000b415093806 Piston Ring. not shownPiston Ring. not shown
-
5000c505070398 Air Valve. not shownAir Valve. not shown
-
5000d505070399 Screw. not shownScrew. not shown
-
5000e505070400 O-Ring. not shownO-Ring. not shown
-
5000f415093804 O-Ring. not shownO-Ring. not shown
-
5000g415130165 Base Valve. not shownBase Valve. not shown
-
5010503193479 Black, Spring (Short)Black, Spring (Short)
-
5020503192743 Spring SpacerSpring Spacer
-
5030503193065 Black, Spring (Short)Black, Spring (Short)
-
5060503194270 Spring StopperSpring Stopper
-
5080503189117 Bushing UrethaneBushing Urethane
-
5090503189282 BushingBushing
-
5100503189271 BushingBushing
-
5130503193033 Shock Adjuster KnobShock Adjuster Knob
-
5140250000644 Allen Screw M3 X 0.5 X 10Allen Screw M3 X 0.5 X 10
-
5150207005044 Hex. Screw M10 X 1.5 X 50. not shownHex. Screw M10 X 1.5 X 50. not shown
-
5160233601466 Elastic Locking Nut M10. not shownElastic Locking Nut M10. not shown
-
5500503193854 Rear Shock. Package XRS without Rear shock adjuster knob. Includes 5500 to 5500jRear Shock. Package XRS without Rear shock adjuster knob. Includes 5500 to 5500j
-
5500503194072 Rear Shock. Package XRS With Rear shock adjuster knob. Includes 5500 to 5500jRear Shock. Package XRS With Rear shock adjuster knob. Includes 5500 to 5500j
-
5500a415093807 O-Ring. not shownO-Ring. not shown
-
5500b415093806 Piston Ring. not shownPiston Ring. not shown
-
5500c505070398 Air Valve. not shownAir Valve. not shown
-
5500d505070399 Screw. not shownScrew. not shown
-
5500e505070400 O-Ring. not shownO-Ring. not shown
-
5500f415093804 O-Ring. not shownO-Ring. not shown
-
5500g415093810 Bolt. Without Rear shock adjuster knob. not shownBolt. Without Rear shock adjuster knob. not shown
-
5500h415038700 O-Ring. Without Rear shock adjuster knob. not shownO-Ring. Without Rear shock adjuster knob. not shown
-
5500j415130165 Base Valve. not shownBase Valve. not shown
