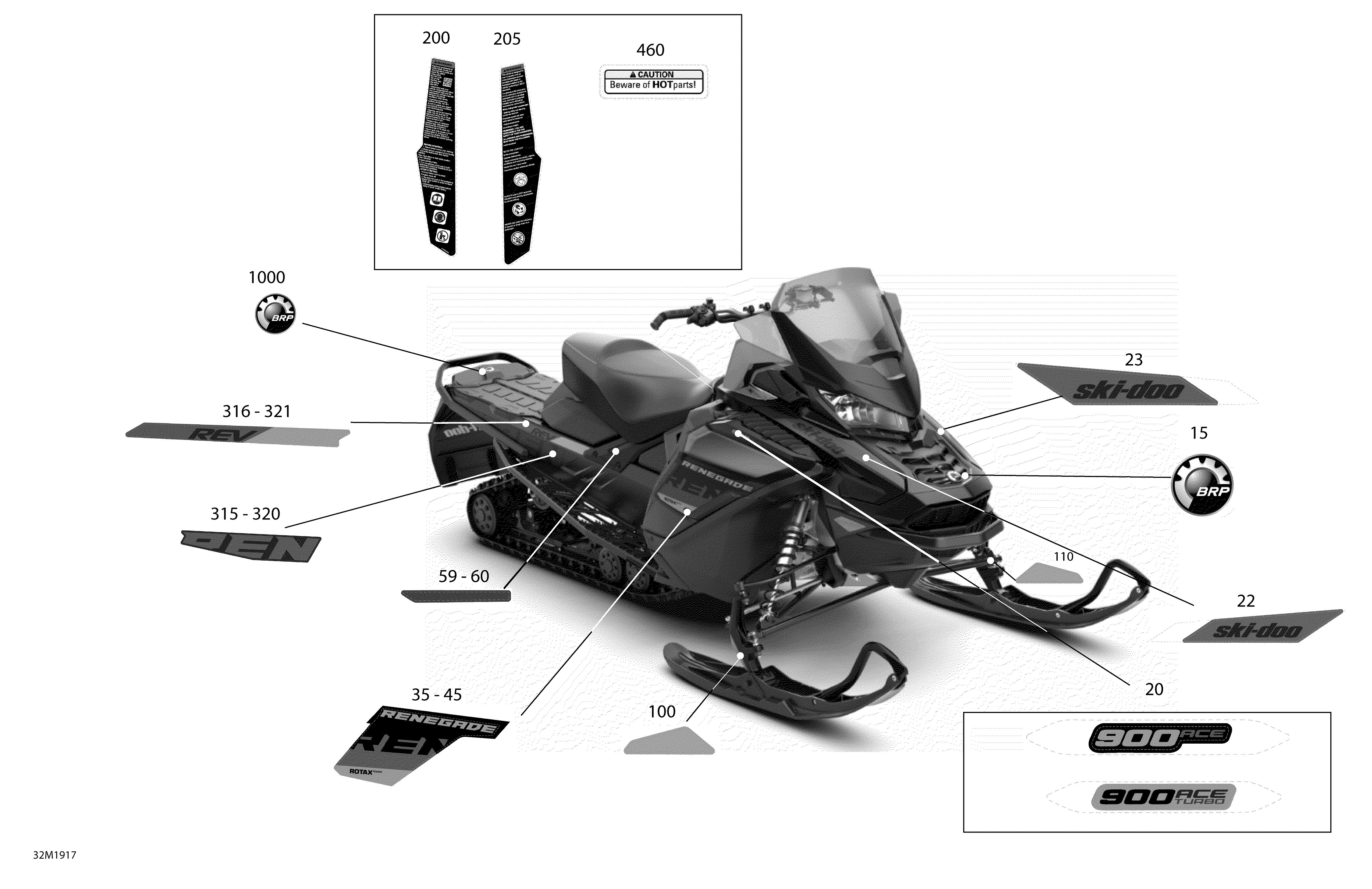

09- Decals - 900 ACE - Package Adrenaline для BRP Ski-Doo 007 - RENEGADE 900 ACE - 2019
-
№АртикулНазвание
-
15516008739 BRP Logo, 68mmBRP Logo, 68mm
-
20516008676 Decal '' 900 Ace ''. Deep BlackDecal '' 900 Ace ''. Deep Black
-
20516009151 Decal '' 900 Ace ''. Bright WhiteDecal '' 900 Ace ''. Bright White
-
22516009199 RH Decal '' Ski-Doo ''. Deep BlackRH Decal '' Ski-Doo ''. Deep Black
-
22516009201 RH Decal '' Ski-Doo ''. Bright WhiteRH Decal '' Ski-Doo ''. Bright White
-
23516009198 LH Decal '' Ski-Doo ''. Deep BlackLH Decal '' Ski-Doo ''. Deep Black
-
23516009200 LH Decal '' Ski-Doo ''. Bright WhiteLH Decal '' Ski-Doo ''. Bright White
-
35516008620 RH Panel Decal '' Renegade REN ''. Deep BlackRH Panel Decal '' Renegade REN ''. Deep Black
-
35516009150 RH Panel Decal '' Renegade REN ''. Bright WhiteRH Panel Decal '' Renegade REN ''. Bright White
-
45516008619 LH Panel Decal '' Renegade REN ''. Deep BlackLH Panel Decal '' Renegade REN ''. Deep Black
-
45516009149 LH Panel Decal '' Renegade REN ''. Bright WhiteLH Panel Decal '' Renegade REN ''. Bright White
-
59516009130 RH Frame Member Decal. Deep BlackRH Frame Member Decal. Deep Black
-
59516009195 RH Frame Member Decal. Bright WhiteRH Frame Member Decal. Bright White
-
60516009129 LH Frame Member Decal. Deep BlackLH Frame Member Decal. Deep Black
-
60516009194 LH Frame Member Decal. Bright WhiteLH Frame Member Decal. Bright White
-
100516008948 RH Ski Leg DecalRH Ski Leg Decal
-
110516008947 LH Ski Leg DecalLH Ski Leg Decal
-
200516008582 Warning Decal SecurityWarning Decal Security
-
205516008583 Warning Decal SecurityWarning Decal Security
-
315516009247 RH Rear Tunnel Decal '' REN ''RH Rear Tunnel Decal '' REN ''
-
316516008952 RH Rear Tunnel Decal '' REV ''. Bright WhiteRH Rear Tunnel Decal '' REV ''. Bright White
-
316516009105 RH Rear Tunnel Decal '' REV ''. Deep BlackRH Rear Tunnel Decal '' REV ''. Deep Black
-
320516009246 LH Rear Tunnel Decal '' REN ''LH Rear Tunnel Decal '' REN ''
-
321516008951 LH Rear Tunnel Decal '' REV ''. Bright WhiteLH Rear Tunnel Decal '' REV ''. Bright White
-
321516009104 LH Rear Tunnel Decal '' REV ''. Deep BlackLH Rear Tunnel Decal '' REV ''. Deep Black
-
460516005280 Caution Decal Hot PartsCaution Decal Hot Parts
-
1000516006224 BRP Logo, 20 mmBRP Logo, 20 mm
