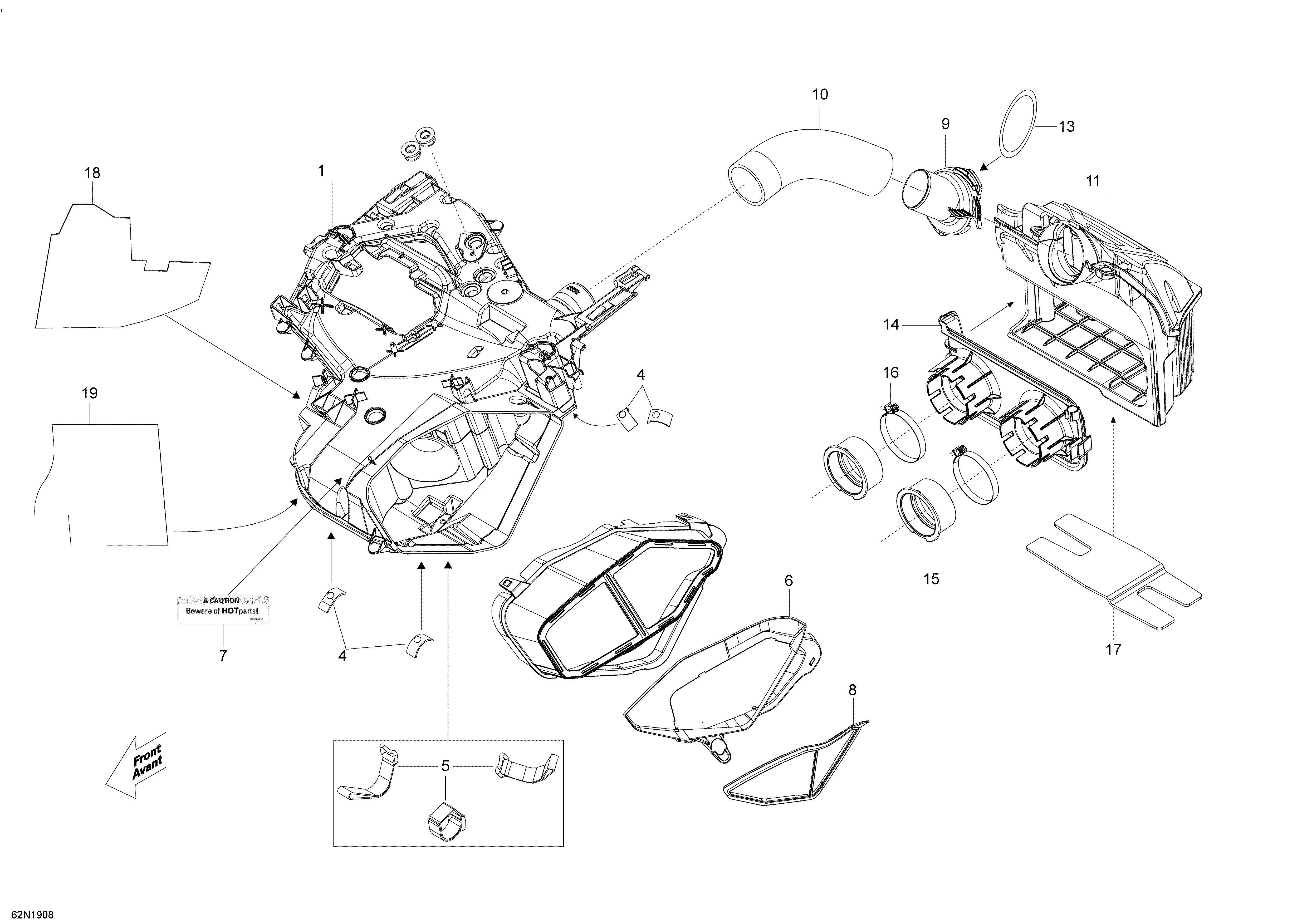

02- Air Intake Manifold - 550F для BRP Ski-Doo 001 - Skandic WT 550F - 2019
-
№АртикулНазвание
-
1508000715 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
4508000537 StopperStopper
-
5508000820 Velcro-StripVelcro-Strip
-
6508001021 AdapterAdapter
-
7516006903 Hot Parts DecalHot Parts Decal
-
8508000609 Air FilterAir Filter
-
9508000562 LinkLink
-
10508000406 TubeTube
-
11508000680 Primary Chamber Ass'yPrimary Chamber Ass'y
-
13293300115 O-RingO-Ring
-
14508000564 Adapter PlateAdapter Plate
-
15508000594 Air Intake AdapterAir Intake Adapter
-
16508000369 Gemi ClampGemi Clamp
-
17508000674 Insulated FoamInsulated Foam
-
18508000684 Heat ShieldHeat Shield
-
19508000685 Heat ShieldHeat Shield
Все узлы модели:
- 00- Model Numbers
- 01- Cooling - 550F
- 01- Crankcase - 550F
- 01- Crankshaft and Pistons - 550F
- 01- Cylinder, Exhaust Manifold and Reed Valve - 550F
- 01- Engine - 550F
- 01- Engine - 550F - Carburator
- 01- Exhaust WT - 550F
- 01- Fan and Cylinder Cowls - 550F
- • 02- Air Intake Manifold - 550F
- 02- Carburetor - 550F
- 02- Fuel
- 02- Oil - 550F
- 02- Oil Pump - 550F
- 03- Magneto - 550F
- 04- Rewind Starter - 550F
- 05- Drive Train - 550F
- 05- Pulley - 550F - Package WT
- 05- Transmission Slow Ratio - 550F
- 06- Brakes
- 07- Front Suspension And Ski
- 07- Steering - 550F
- 08- Rear Shocks - Packages WT & SWT
- 08- Rear Suspension - Lower Section - LE - WT
- 09- Bottom Pan - 550F - Package WT
- 09- Decals - 550F - Package WT
- 09- Frame - Package WT
- 09- Hood
- 09- Luggage Rack
- 09- Seat - 550F
- 09- Utilities - 550F - Europe
- 09- Utilities - 550F - North America
- 10- Electrical - 550F
