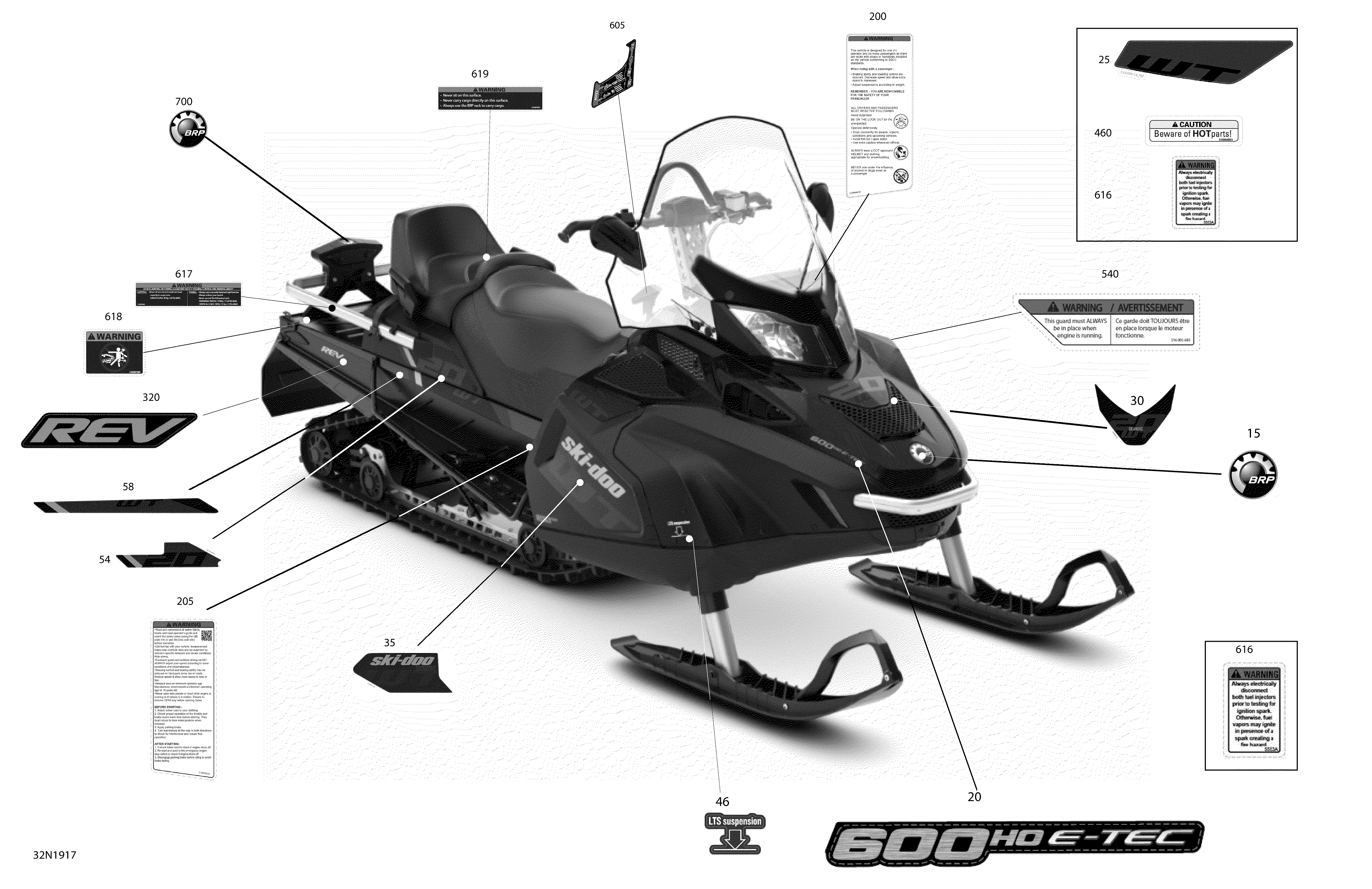

09- Decals - 600HO E-TEC - Package WT для BRP Ski-Doo 002 - Skandic WT 600HO E-TEC - 2019
-
№АртикулНазвание
-
15516008739 BRP Logo, 68mmBRP Logo, 68mm
-
20516006152 Hood Decal Black/Grey, 600 HO E-TECHood Decal Black/Grey, 600 HO E-TEC
-
25516009114 Access Panel Decal ''WT''Access Panel Decal ''WT''
-
30516009115 Front Hood DecalFront Hood Decal
-
35516009119 LH/RH Side Panel DecalLH/RH Side Panel Decal
-
46516007160 Decal '' LTS Suspension ''Decal '' LTS Suspension ''
-
54516009123 LH/RH Storage Box DecalLH/RH Storage Box Decal
-
58516009126 LH RH Decal, FrameLH RH Decal, Frame
-
200516004652 Warning DecalWarning Decal
-
205516009224 Warning DecalWarning Decal
-
320516008835 Decal '' Rev ''Decal '' Rev ''
-
460516006903 Hot Parts DecalHot Parts Decal
-
540516005683 Security label, drive pulley coverSecurity label, drive pulley cover
-
605516004305 Instruction Label, TransmissionInstruction Label, Transmission
-
616516005583 Warning Decal, InjectorsWarning Decal, Injectors
-
617516004960 Rear Security Decal, EnglishRear Security Decal, English
-
618516007583 Rotating Track Warning DecalRotating Track Warning Decal
-
619516004961 Security DecalSecurity Decal
-
700516008738 Logo BRP, 48mmLogo BRP, 48mm
