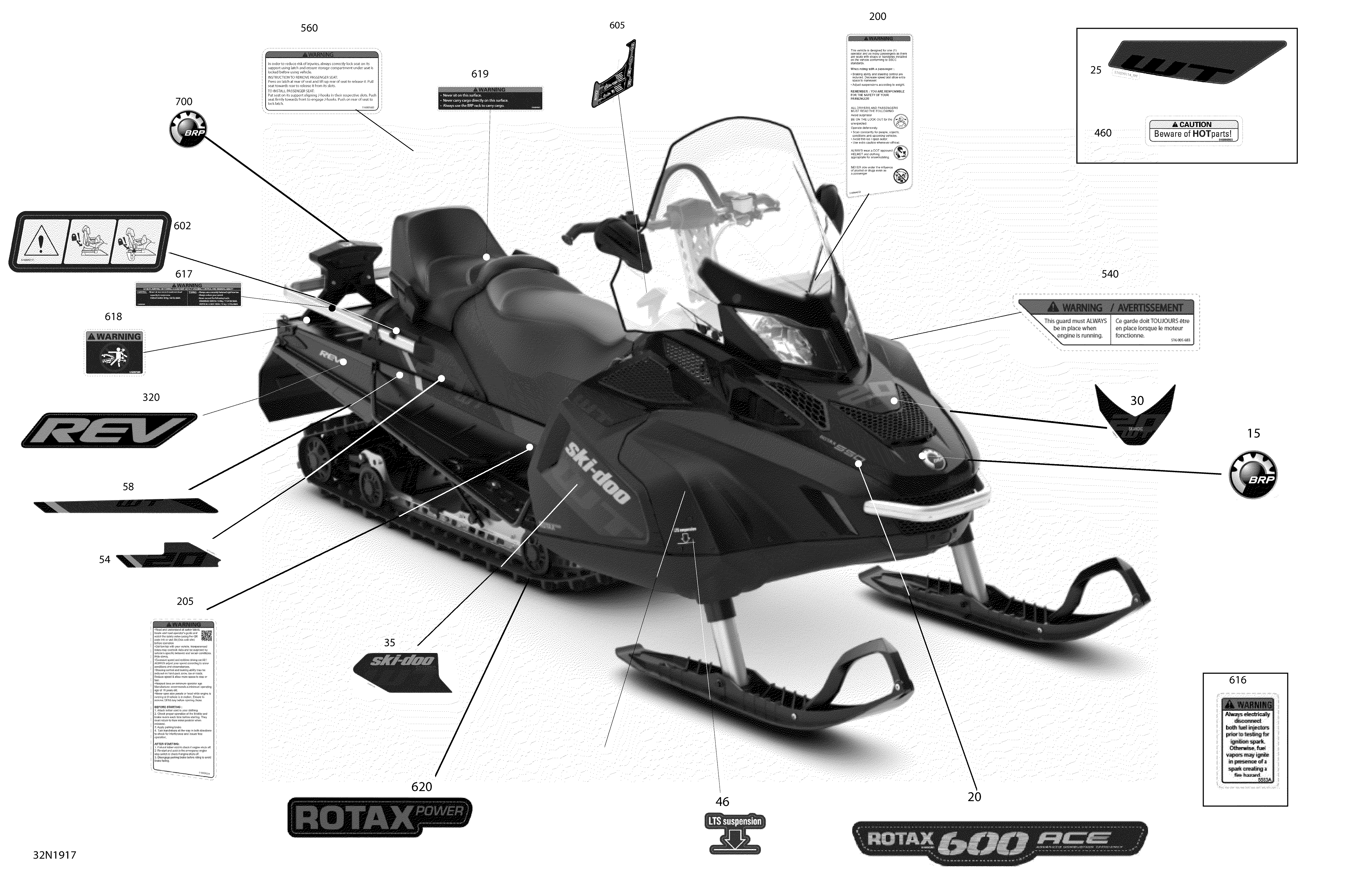

09- Decals - 600 ACE - Package WT для BRP Ski-Doo 003 - Skandic WT 600 ACE - 2019
-
№АртикулНазвание
-
15516008739 BRP Logo, 68mmBRP Logo, 68mm
-
20516004360 Hood Decal ''Rotax 600 Ace''Hood Decal ''Rotax 600 Ace''
-
25516009114 Access Panel Decal ''WT''Access Panel Decal ''WT''
-
30516009115 Front Hood DecalFront Hood Decal
-
35516009119 LH/RH Side Panel DecalLH/RH Side Panel Decal
-
46516007160 Decal '' LTS Suspension ''Decal '' LTS Suspension ''
-
54516009123 LH/RH Storage Box DecalLH/RH Storage Box Decal
-
58516009126 LH RH Decal, FrameLH RH Decal, Frame
-
200516004652 Warning DecalWarning Decal
-
205516009224 Warning DecalWarning Decal
-
320516008835 Decal '' Rev ''Decal '' Rev ''
-
460516006903 Hot Parts DecalHot Parts Decal
-
540516005683 Security label, drive pulley coverSecurity label, drive pulley cover
-
560516005682 Decal warningDecal warning
-
602516005111 Instruction Decal, Back Seat LockingInstruction Decal, Back Seat Locking
-
605516004305 Instruction Label, TransmissionInstruction Label, Transmission
-
617516004960 Rear Security Decal, EnglishRear Security Decal, English
-
618516007583 Rotating Track Warning DecalRotating Track Warning Decal
-
619516004961 Security DecalSecurity Decal
-
650516008760 Rotax Power DecalRotax Power Decal
-
700516008738 Logo BRP, 48mmLogo BRP, 48mm
