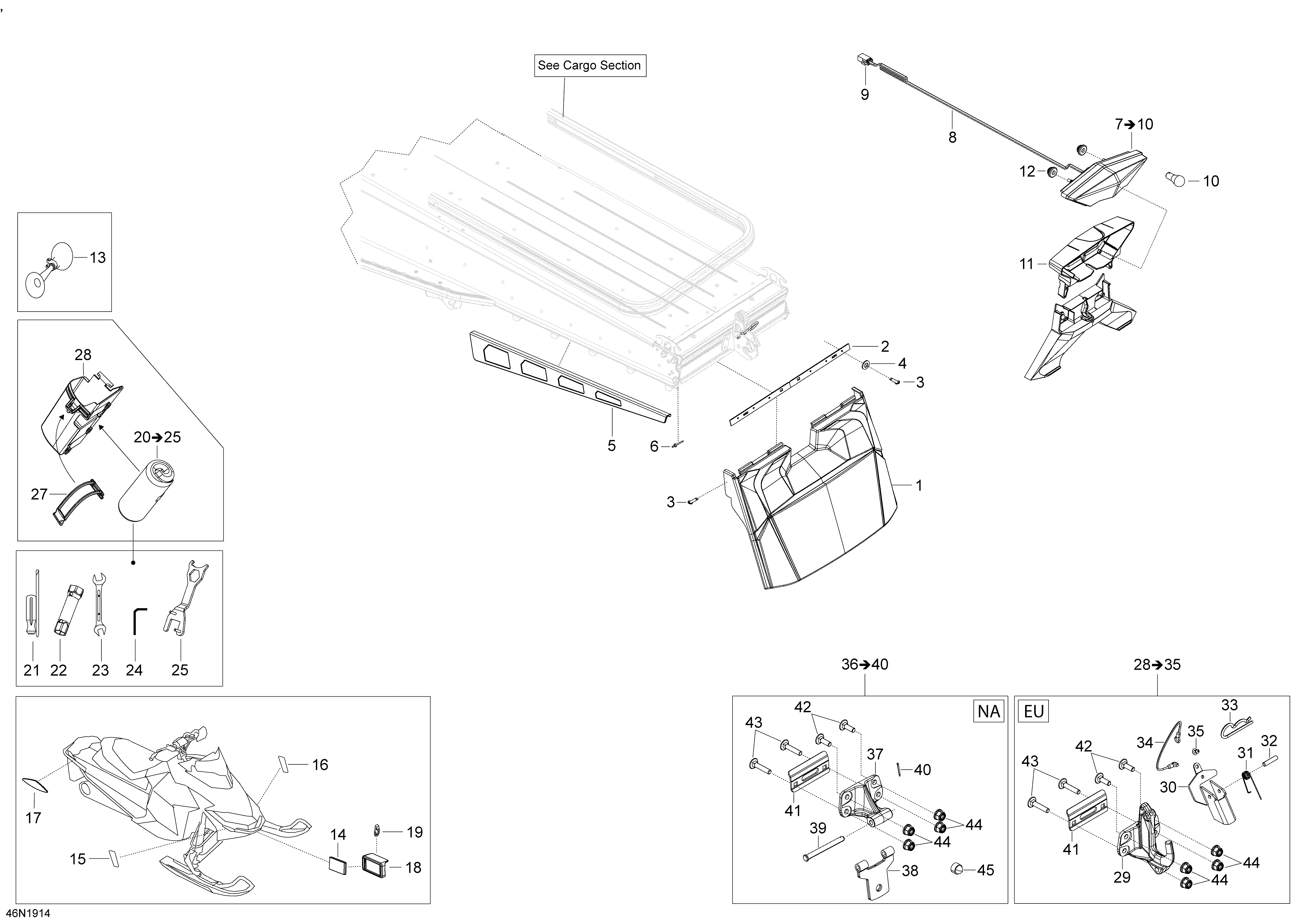

09- Utilities - 900 ACE - Europe для BRP Ski-Doo 004 - Skandic WT 900 ACE - 2019
-
№АртикулНазвание
-
1520001411 Snow Guard. Package SWTSnow Guard. Package SWT
-
2520001021 Plate. Package WTPlate. Package WT
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet HucklokRivet Hucklok
-
7520000848 Rear Light. Includes 200 to 200bRear Light. Includes 200 to 200b
-
8520000677 Wiring Harness Ass'yWiring Harness Ass'y
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
13549011291 HornHorn
-
1421118 Reflector (Bright)Reflector (Bright)
-
15520001600 Yellow RH ReflectorYellow RH Reflector
-
16520001601 Yellow LH ReflectorYellow LH Reflector
-
17705002423 Lateral Reflector, AmberLateral Reflector, Amber
-
18520000871 Deep Black, Reflector SupportDeep Black, Reflector Support
-
1927120 Tie RapTie Rap
-
20529000078 Tool KitTool Kit
-
26520000894 Tool Kit RackTool Kit Rack
-
27520000528 LatchLatch
-
28520001774 Hitch Ass'y. Includes 28 to 35,2Hitch Ass'y. Includes 28 to 35,2
-
30520001775 Locking PlateLocking Plate
-
32520001810 Clevis PinClevis Pin
-
3341029 Hair pinHair pin
-
35390909100 Avex RivetAvex Rivet
-
35.1520001811 Washer. Not ShownWasher. Not Shown
-
35.2520001812 Cotter Pin. Not ShownCotter Pin. Not Shown
-
41520000727 PlatePlate
-
42207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
43207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
44233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60520001766 Support Tape. Not ShownSupport Tape. Not Shown
-
64619900949 Guide Skandic WT/SWT EN. Not ShownGuide Skandic WT/SWT EN. Not Shown
