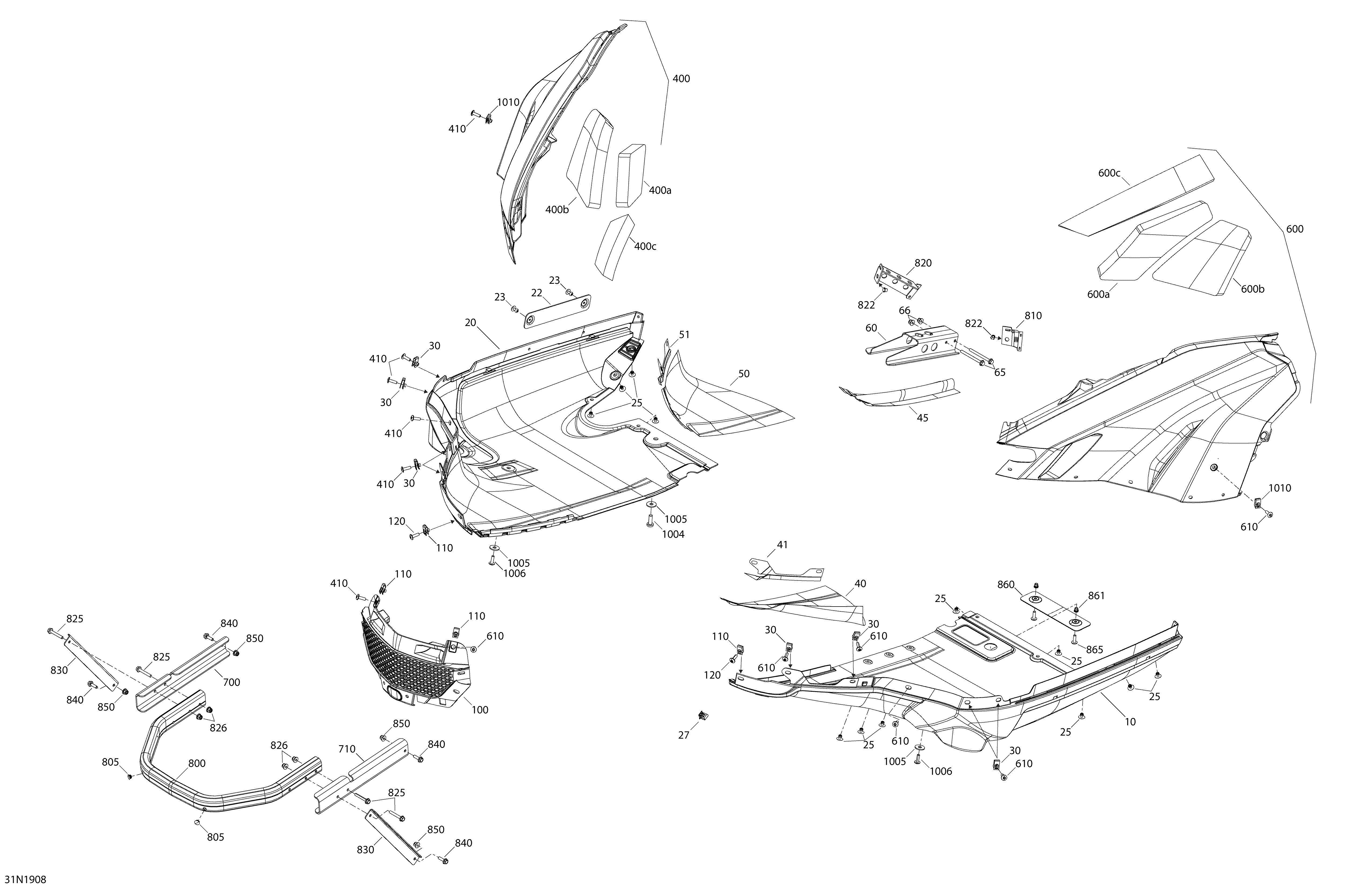

09- Bottom Pan skandic - 900 ACE - Package SWT для BRP Ski-Doo 007 - Skandic SWT 900 ACE - 2019
-
№АртикулНазвание
-
10502007836 LH Lower Bottom PanLH Lower Bottom Pan
-
20502007837 RH Lower Bottom PanRH Lower Bottom Pan
-
22502007255 Heat Isolation PlateHeat Isolation Plate
-
23293150211 RivetRivet
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
27517302785 Edge ClipEdge Clip
-
30250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
60502007688 SupportSupport
-
65207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
66233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
100502007140 Front GrillFront Grill
-
110250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
120250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
400502008015 Deep Black, Bottom Pan RHDeep Black, Bottom Pan RH
-
400a502007133 InsulatorInsulator
-
400b502007132 InsulatorInsulator
-
400c502007009 InsulatorInsulator
-
410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
600502008017 Deep Black, Bottom Pan LHDeep Black, Bottom Pan LH
-
600a502007088 InsulatorInsulator
-
600b502007131 InsulatorInsulator
-
600c502007185 InsulatorInsulator
-
610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
800502007684 Clear Anod. BumperClear Anod. Bumper
-
805293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
810502007535 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
820502007536 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
822605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
825207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
826233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
830502006927 Bumper SupportBumper Support
-
840207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
850233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
860518328879 Oil PlateOil Plate
-
861605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
865250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1004250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
1005234082410 Flat Washer 8 mmFlat Washer 8 mm
-
1006250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1010250000957 Extruded Panel Nut M6Extruded Panel Nut M6
