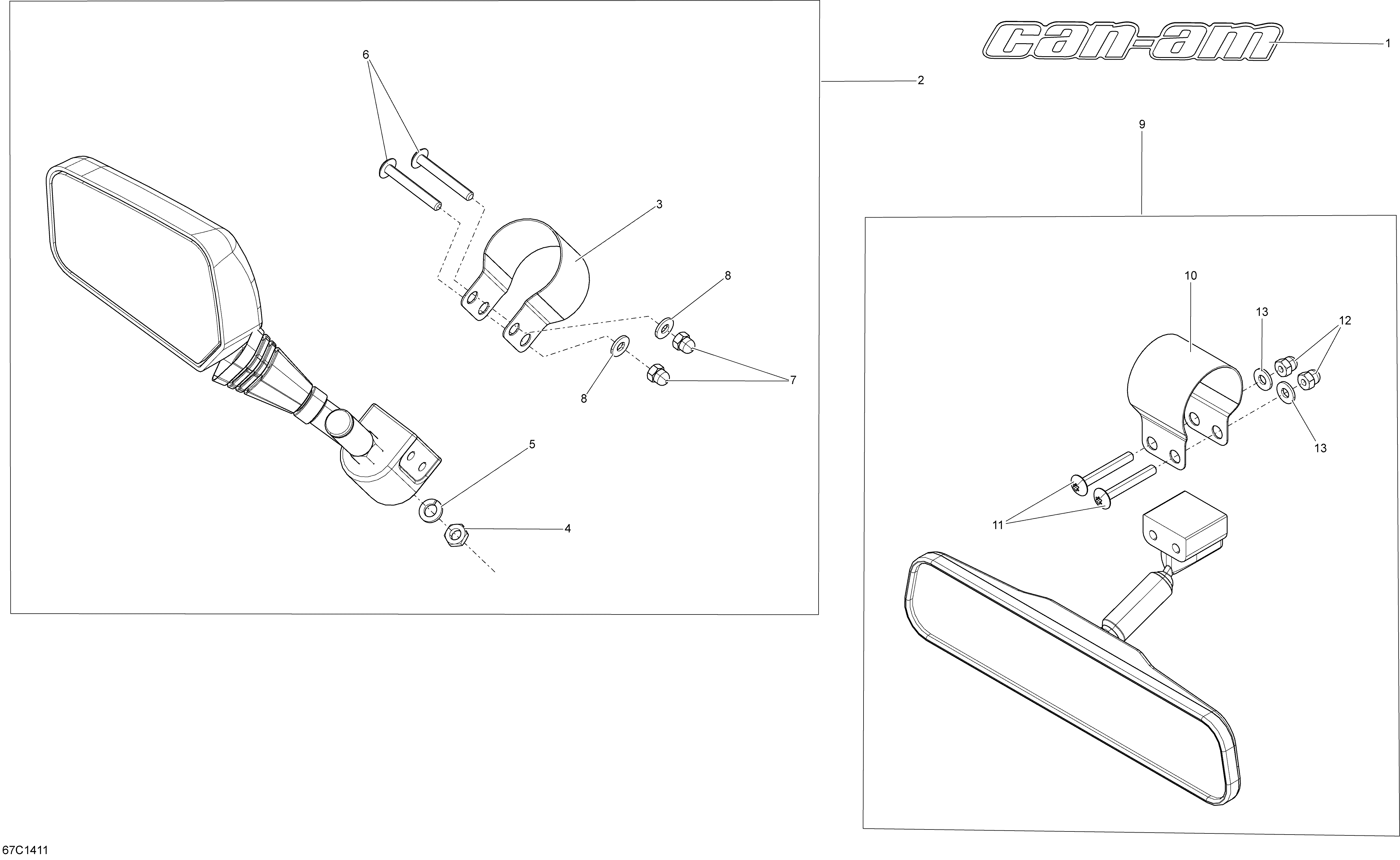

09- Mirrors _67C1411 для BRP Commander (Electric 9Kw) STD, XT, LSV - 2014
-
№АртикулНазвание
-
1704902319 Cage DecalCage Decal
-
2715001192 Left Mirror Kit. P-LSV_P-LSVSE. Ensemble LSV, LSVSELeft Mirror Kit. P-LSV_P-LSVSE. Ensemble LSV, LSVSE
-
2715001192 Left Mirror Kit. B-190&EUR. Modele Jaune EuropeLeft Mirror Kit. B-190&EUR. Modele Jaune Europe
-
2715001192 Left Mirror Kit. B-341&EUR. Modele Blanc EuropeLeft Mirror Kit. B-341&EUR. Modele Blanc Europe
-
3708200185 Mirror ClampMirror Clamp
-
4232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
5234181401 Lock Washer 8 mmLock Washer 8 mm
-
6250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
7232361493 Domed Nut M6Domed Nut M6
-
8250200039 Flat WasherFlat Washer
-
9715001191 Central Mirror Kit. P-LSV_P-LSVSE. Ensemble LSV, LSVSECentral Mirror Kit. P-LSV_P-LSVSE. Ensemble LSV, LSVSE
-
9715001191 Central Mirror Kit. B-190&EUR. Modele Jaune EuropeCentral Mirror Kit. B-190&EUR. Modele Jaune Europe
-
9715001191 Central Mirror Kit. B-341&EUR. Modele Blanc EuropeCentral Mirror Kit. B-341&EUR. Modele Blanc Europe
-
10708200185 Mirror ClampMirror Clamp
-
11250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
12232361493 Domed Nut M6Domed Nut M6
-
13250200039 Flat WasherFlat Washer
