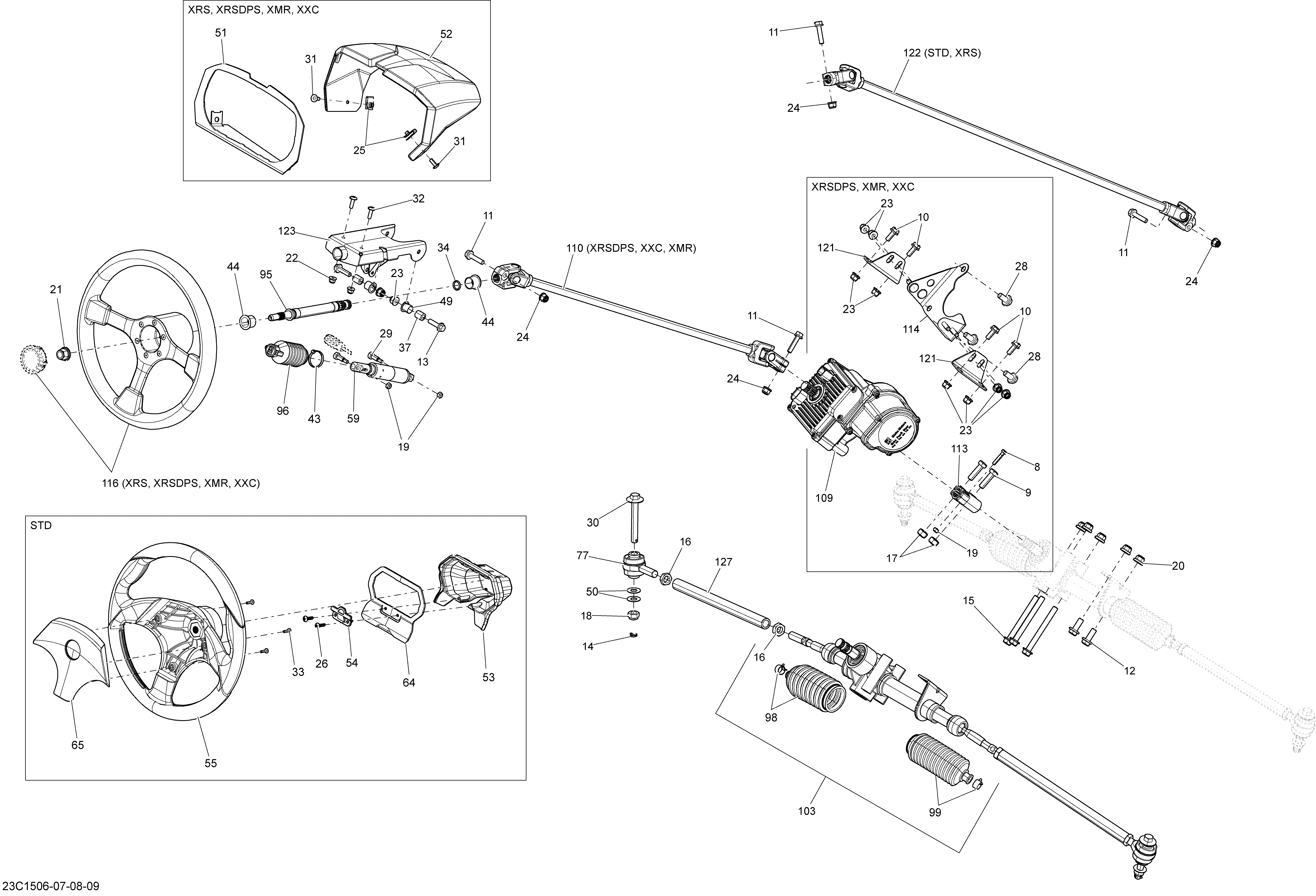

07- Steering _23C1506 для BRP Maverick 1000_STD_XRS_XRS-DPS - 2015
-
№АртикулНазвание
-
8207063044 Hex. Screw M6 X 30. Package-XDSDPS, XMR, XRSDPS, XXCHex. Screw M6 X 30. Package-XDSDPS, XMR, XRSDPS, XXC
-
9207103586 Hex. Screw M10 X 35. Package-XDSDPS, XMR, XRSDPS, XXCHex. Screw M10 X 35. Package-XDSDPS, XMR, XRSDPS, XXC
-
10207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package-XDSDPS, XMR, XRSDPS, XXCHex. Flanged Screw M8 X 20, Scotch Grip. Package-XDSDPS, XMR, XRSDPS, XXC
-
11207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
12207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
13207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
14211400017 Cotter PinCotter Pin
-
15230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
16715900238 Steering Rode Nut. Package-XRSDPSSteering Rode Nut. Package-XRSDPS
-
16715900238 Steering Rode Nut. Package-STD, XRSSteering Rode Nut. Package-STD, XRS
-
17232500416 Elastic Stop Nut M10. Package-XDSDPS, XMR, XRSDPS, XXCElastic Stop Nut M10. Package-XDSDPS, XMR, XRSDPS, XXC
-
18232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
19232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
20233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
21233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
25250100113 Panel Nut, M6 X 1.0. Package-XD, XDSDPS, XMR, XRS, XRSDPS, XXCPanel Nut, M6 X 1.0. Package-XD, XDSDPS, XMR, XRS, XRSDPS, XXC
-
26250000297 Truss Head Torx Screw K50 X 20. Package-STDTruss Head Torx Screw K50 X 20. Package-STD
-
28250000601 Hex. Flanged Screw M10 X 20, Scotch Grip. Package-XDSDPS, XMR, XRSDPS, XXCHex. Flanged Screw M10 X 20, Scotch Grip. Package-XDSDPS, XMR, XRSDPS, XXC
-
30250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
31250000721 Torx Screw. Package-XD, XDSDPS, XMR, XRS, XRSDPS, XXCTorx Screw. Package-XD, XDSDPS, XMR, XRS, XRSDPS, XXC
-
32250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
33250000723 Phillips Screw K40 X 16. Package-STDPhillips Screw K40 X 16. Package-STD
-
34293300144 O-RingO-Ring
-
35250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
37293900106 BushingBushing
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44415108000 CushionCushion
-
49705600799 BushingBushing
-
50250200086 Flat WasherFlat Washer
-
51707900013 Cluster Support. Package-XD, XDSDPS, XMR, XRS, XRSDPS, XXCCluster Support. Package-XD, XDSDPS, XMR, XRS, XRSDPS, XXC
-
52707900124 Upper Cluster Cover. Package-XD, XDSDPS, XMR, XRS, XRSDPS, XXCUpper Cluster Cover. Package-XD, XDSDPS, XMR, XRS, XRSDPS, XXC
-
53709400514 Speedometer Cover. Package-STDSpeedometer Cover. Package-STD
-
54709400573 Latch Indicator Cover. Package-STDLatch Indicator Cover. Package-STD
-
55709400650 Steering Wheel. Package-STDSteering Wheel. Package-STD
-
59709400656 Adjustment CylinderAdjustment Cylinder
-
64709400760 Cluster Support. Package-STDCluster Support. Package-STD
-
65709400780 Steering Center. Package-STDSteering Center. Package-STD
-
77709401125 Ball JointBall Joint
-
95709401167 Steering ShaftSteering Shaft
-
96709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
98715900235 Boot Kit, Pinion Side. Package-XRSDPSBoot Kit, Pinion Side. Package-XRSDPS
-
98715900235 Boot Kit, Pinion Side. Package-STD, XRSBoot Kit, Pinion Side. Package-STD, XRS
-
99715900236 Boot Kit, Tube Side. Package-XRSDPSBoot Kit, Tube Side. Package-XRSDPS
-
99715900236 Boot Kit, Tube Side. Package-STD, XRSBoot Kit, Tube Side. Package-STD, XRS
-
103709401325 Rack And Pinion Steering. Package-STD, XRS, XDS EuropeRack And Pinion Steering. Package-STD, XRS, XDS Europe
-
103709401236 Rack And Pinion Steering. Package-XRSDPSRack And Pinion Steering. Package-XRSDPS
-
109709401406 Power Steering. Package-XDSDPS, XMR, XRSDPS, XXCPower Steering. Package-XDSDPS, XMR, XRSDPS, XXC
-
110709401293 Steering Shaft Ass'y. Package-XDSDPS, XMR, XRSDPS, XXCSteering Shaft Ass'y. Package-XDSDPS, XMR, XRSDPS, XXC
-
113709401294 Coupling. Package-XDSDPS, XMR, XRSDPS, XXCCoupling. Package-XDSDPS, XMR, XRSDPS, XXC
-
114709401296 Support. Package-XDSDPS, XMR, XRSDPS, XXCSupport. Package-XDSDPS, XMR, XRSDPS, XXC
-
116715001134 Steering Wheel KitSteering Wheel Kit
-
121709401339 Support. Package-XDSDPS, XMR, XRSDPS, XXCSupport. Package-XDSDPS, XMR, XRSDPS, XXC
-
122709401388 Steering Shaft Ass'y. Package-STD, XRS, XDSSteering Shaft Ass'y. Package-STD, XRS, XDS
-
123709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
-
127709401427 Tie RodTie Rod
