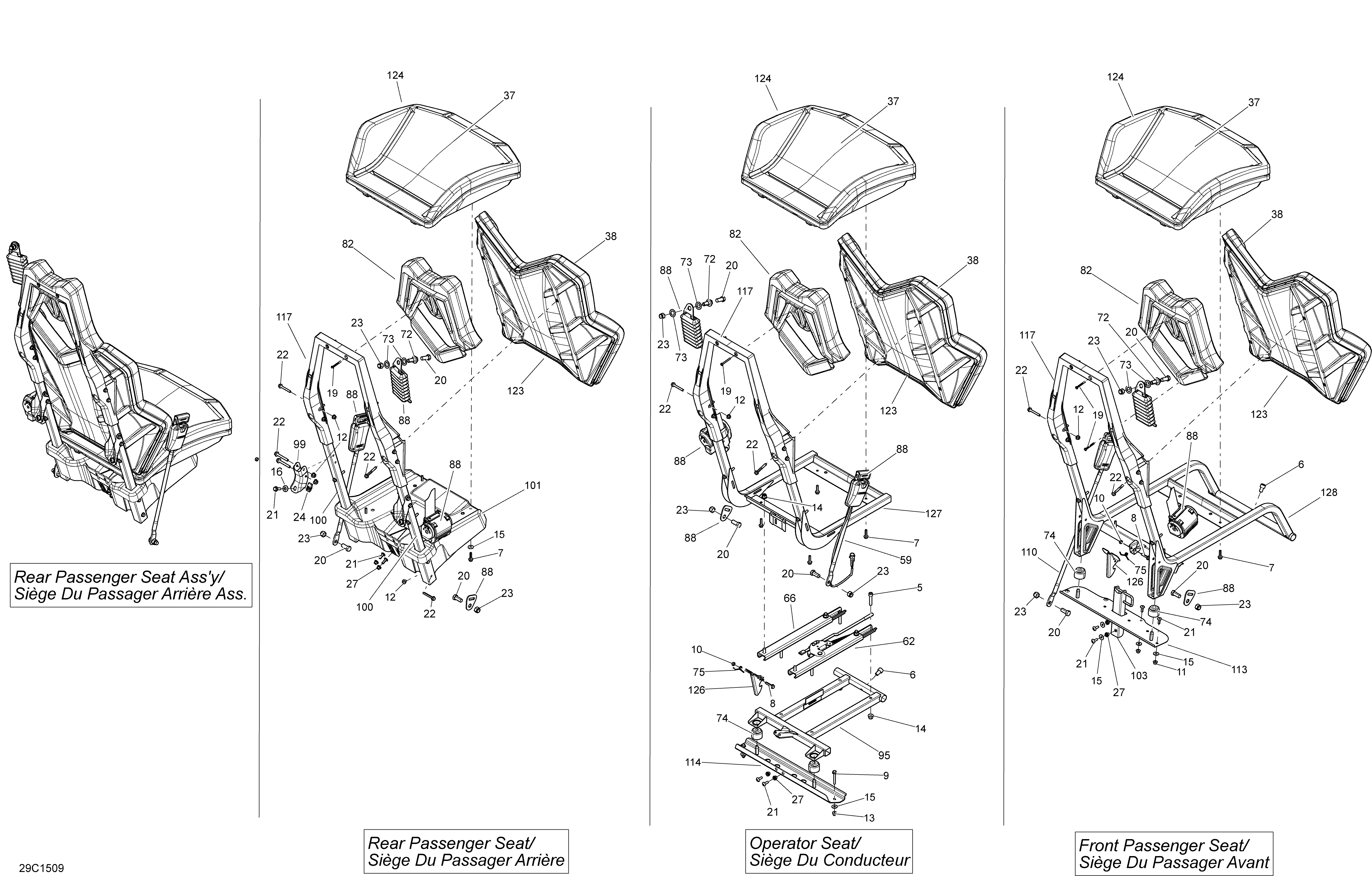

09- Seat _29C1509 для BRP Maverick MAX 1000_STD_XRS-DPS - 2015
-
№АртикулНазвание
-
5205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
6205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
7207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
8207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
9207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
10232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
11233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
12233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15234062670 Flat Washer, StainlessFlat Washer, Stainless
-
16234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19250000490 Hex. Washer Head Screw PT K50 X 40Hex. Washer Head Screw PT K50 X 40
-
20250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
21207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
22250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
23250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
24250100160 Panel Nut M6Panel Nut M6
-
27293450274 InsertInsert
-
37708001333 Seat Cover. Model-RedSeat Cover. Model-Red
-
37708001084 Seat Cover. Model-Black-YellowSeat Cover. Model-Black-Yellow
-
37708001333 Seat Cover. Model-White-Red Black CageSeat Cover. Model-White-Red Black Cage
-
37708001103 Seat Cover. Model-YellowSeat Cover. Model-Yellow
-
38708001331 Backrest Cover. Model-RedBackrest Cover. Model-Red
-
38708001080 Backrest Cover. Model-Black-YellowBackrest Cover. Model-Black-Yellow
-
38708001331 Backrest Cover. Model-White-Red Black CageBackrest Cover. Model-White-Red Black Cage
-
38708000675 Backrest Cover. Model-YellowBackrest Cover. Model-Yellow
-
59708000987 Driver Buckle SideDriver Buckle Side
-
62708001739 RH RailRH Rail
-
66708000848 LH RailLH Rail
-
72708000890 Safety Belt ScrewSafety Belt Screw
-
73708000891 Position WasherPosition Washer
-
74708001671 Rubber BumperRubber Bumper
-
75708000921 SpringSpring
-
82708001074 Head RestHead Rest
-
88708001302 Safety BeltSafety Belt
-
95708001174 Seat MemberSeat Member
-
99708001474 Rear AnchorRear Anchor
-
100708001196 Lateral TubeLateral Tube
-
101708001198 Seat SupportSeat Support
-
103708001213 AnchorAnchor
-
110708001206 Passenger Buckle SidePassenger Buckle Side
-
113708001804 SupportSupport
-
114708001214 Seat SupportSeat Support
-
117708001245 Seat SupportSeat Support
-
123708001316 Backrest Ass'y. Model-YellowBackrest Ass'y. Model-Yellow
-
123708001338 Backrest Assembly. Model-White-Red Black CageBackrest Assembly. Model-White-Red Black Cage
-
123708001317 Backrest Assembly. Model-Black-YellowBackrest Assembly. Model-Black-Yellow
-
123708001338 Backrest Assembly. Model-RedBackrest Assembly. Model-Red
-
124708001318 Cushion Ass'y. Model-YellowCushion Ass'y. Model-Yellow
-
124708001339 Cushion Assembly. Model-White-Red Black CageCushion Assembly. Model-White-Red Black Cage
-
124708001319 Cushion Assembly. Model-Black-YellowCushion Assembly. Model-Black-Yellow
-
124708001339 Cushion Assembly. Model-RedCushion Assembly. Model-Red
-
126708001355 Seat LatchSeat Latch
-
127708001356 Operator Seat FrameOperator Seat Frame
-
128708001357 Passenger Seat FramePassenger Seat Frame
