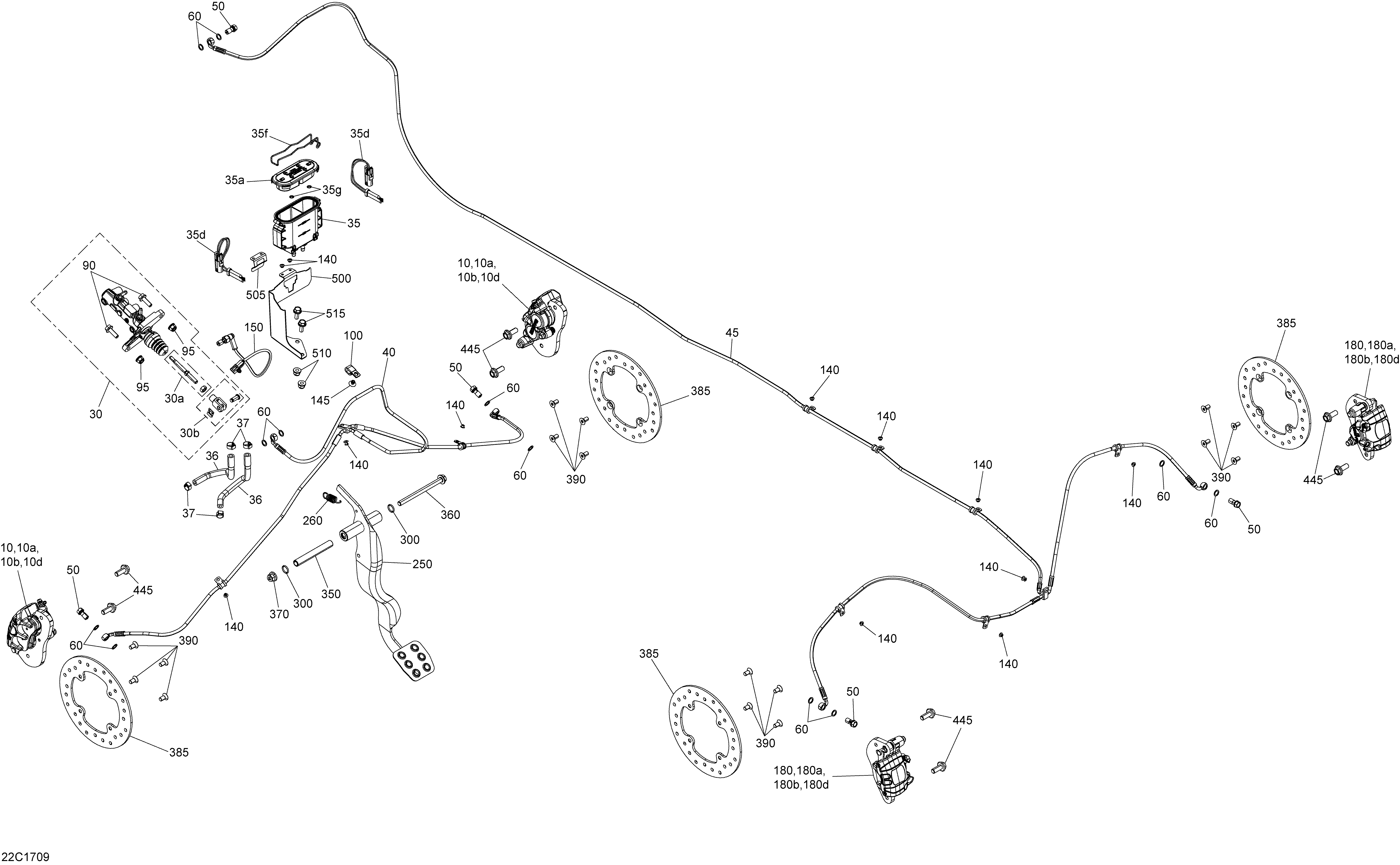

06- Brakes - All Models для BRP Traxter T - 2017
-
№АртикулНазвание
-
10>10d705601462 Front Caliper LH. Includes 10 to 10dFront Caliper LH. Includes 10 to 10d
-
10>10d705601463 Front Caliper RH. Includes 10 to 10dFront Caliper RH. Includes 10 to 10d
-
10a>10a1715900379 Brake Pads LH. Includes 10a to 10a1Brake Pads LH. Includes 10a to 10a1
-
10a>10a1715900380 Brake Pads RH. Includes 10a to 10a1Brake Pads RH. Includes 10a to 10a1
-
10a1715900384 Pin KitPin Kit
-
10b705601017 Bleeding ScrewBleeding Screw
-
10d715900385 Cap Spring KitCap Spring Kit
-
30>30b705601568 Master Cylinder. Includes 30 to 30bMaster Cylinder. Includes 30 to 30b
-
30a715900373 Boot Rod KitBoot Rod Kit
-
30b715900374 Fork KitFork Kit
-
35>35g705601596 Brake Fluid Reservoir Ass'y. Includes 35 to 35gBrake Fluid Reservoir Ass'y. Includes 35 to 35g
-
35a219800350 Diaphragm Cover AssemblyDiaphragm Cover Assembly
-
35d515176508 Oil Level SensorOil Level Sensor
-
35f705601294 Spindle LockSpindle Lock
-
35g211100002 Push NutPush Nut
-
36705601603 HoseHose
-
37293650047 Crimp ClampCrimp Clamp
-
40705601594 Brake HoseBrake Hose
-
45705601595 Brake HoseBrake Hose
-
50705600609 Banjo BoltBanjo Bolt
-
60705600310 Copper WasherCopper Washer
-
90207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
95233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100293650220 ClampClamp
-
140390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
145293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601250 Brake SwitchBrake Switch
-
180>180d705601464 Rear Caliper LH. Includes 180 to 180dRear Caliper LH. Includes 180 to 180d
-
180>180d705601465 Rear Caliper RH. Includes 180 to 180dRear Caliper RH. Includes 180 to 180d
-
180a>180a1715900381 Brake Pads LH. Includes 180a to 180a1Brake Pads LH. Includes 180a to 180a1
-
180a>180a1715900382 Brake Pads RHBrake Pads RH
-
180a1715900384 Pin KitPin Kit
-
180b705601017 Bleeding ScrewBleeding Screw
-
180d715900385 Cap Spring KitCap Spring Kit
-
250705601306 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
300293300144 O-RingO-Ring
-
350705601373 Inside SleeveInside Sleeve
-
360230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
370233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
385705601511 Brake DiscBrake Disc
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
445207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
500705601567 SupportSupport
-
505705601608 Stopper BracketStopper Bracket
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
515207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
