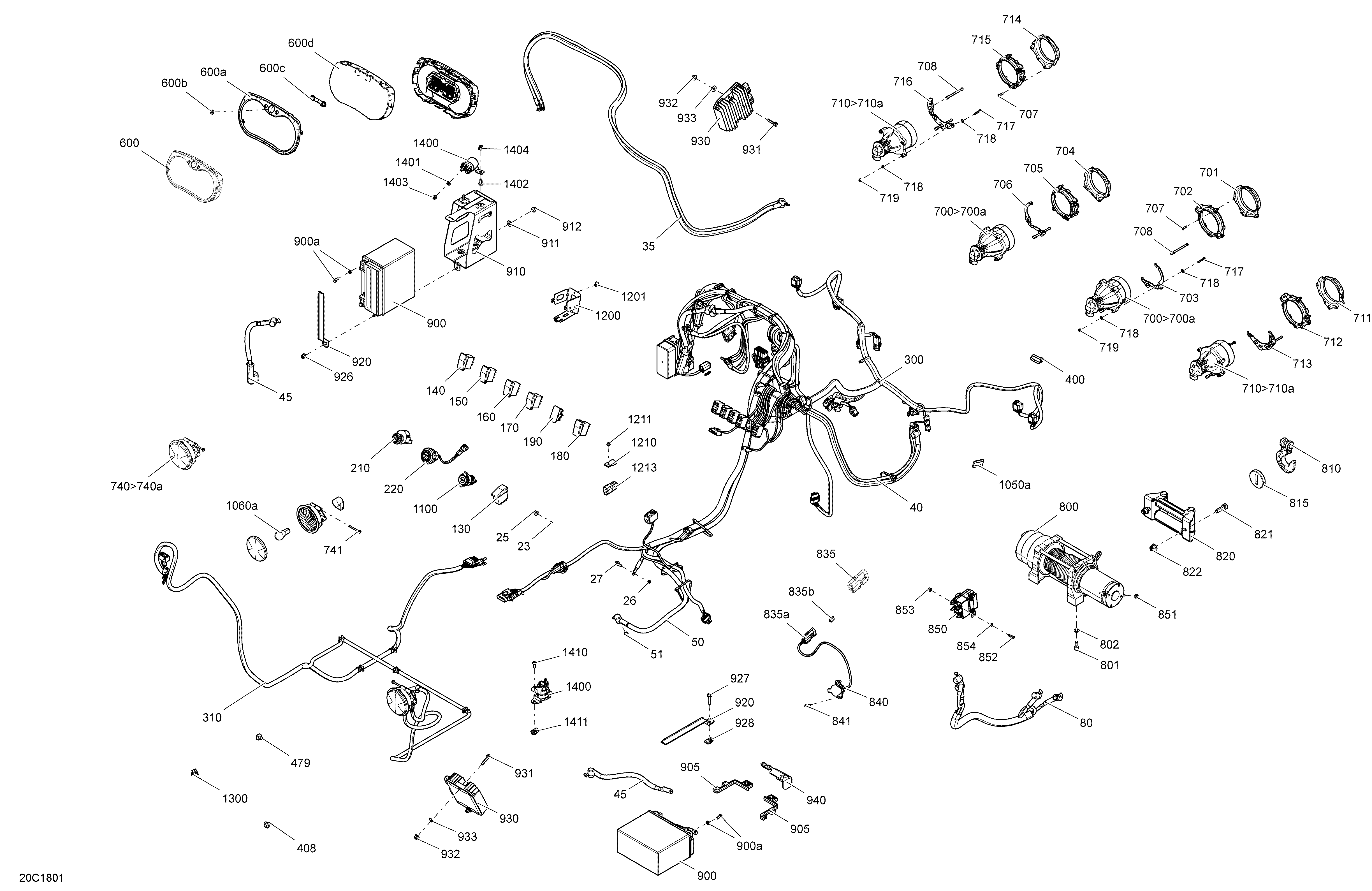

10- Electrical System Commander - All Models Except LTD для BRP 3- Commander MAX 800R EFI - 2018

№

Артикул

Название
22

207662044 Hex. Flanged Screw M6 X 20. Commander

Hex. Flanged Screw M6 X 20. Commander

1 470 ₽
23

234461608 External Serrated Lock Washer 6 mm

External Serrated Lock Washer 6 mm

390 ₽
25

233061414 Hex. Flanged Nut M6

Hex. Flanged Nut M6

600 ₽
26

234461608 External Serrated Lock Washer 6 mm

External Serrated Lock Washer 6 mm

390 ₽
27

207561644 Hex. Flanged Screw M6 X 16, Scotch Grip

Hex. Flanged Screw M6 X 16, Scotch Grip

670 ₽
35

710004575 Winch Cable (-/+). Commander Package DPS

Winch Cable (-/+). Commander Package DPS

6 740 ₽
35

710004919 Winch Cable (-/+). Commander Max Package DPS

Winch Cable (-/+). Commander Max Package DPS

7 470 ₽
40

710005123 Winch Cable (-/+). Package Hunter, XT, XTP

Winch Cable (-/+). Package Hunter, XT, XTP

7 470 ₽
40

710005239 Winch Cable (-/+). Commander Max Package XT

Winch Cable (-/+). Commander Max Package XT

10 250 ₽
45

710004384 Positive Cable. Commander Package DPS

Positive Cable. Commander Package DPS

3 100 ₽
45

710004384 Positive Cable. Commander Package STD

Positive Cable. Commander Package STD

3 100 ₽
45

710004393 Positive Cable. Commander Max Package DPS

Positive Cable. Commander Max Package DPS

3 100 ₽
50

710004383 Positive Cable. Commander

Positive Cable. Commander

3 730 ₽
50

710004390 Positive Cable. Commander MAX

Positive Cable. Commander MAX

3 190 ₽
51

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6

50 ₽
80

710004387 Electrical Winch Cable. Package Hunter & XT

Electrical Winch Cable. Package Hunter & XT

4 370 ₽
130

710002053 Switch, Over ride

Switch, Over ride

8 370 ₽
140

710001725 Hi/Low Switch

Hi/Low Switch

9 730 ₽
150

710001737 Switch

Switch

12 390 ₽
160

710003541 Switch PPS Sport

Switch PPS Sport

2 010 ₽
170

710001781 Switch DPS. Except Package STD

Switch DPS. Except Package STD

10 050 ₽
180

710002052 Switch. Package Hunter & XT

Switch. Package Hunter & XT

10 710 ₽
190

710001999 Plug Carling

Plug Carling

850 ₽
210

710003847 Ignition Switch

Ignition Switch

27 480 ₽
220

710002594 Engine START Button

Engine START Button

6 200 ₽
300>300a

710005661 Harness-Assy.. Commander. Includes 300 to 300a

Harness-Assy.. Commander. Includes 300 to 300a

84 640 ₽
300>300a

710005662 Harness-Assy.. Commander MAX. Includes 300 to 300a

Harness-Assy.. Commander MAX. Includes 300 to 300a

84 640 ₽
300a

710005760 DPS Connector Cap. Not Shown

DPS Connector Cap. Not Shown

1 600 ₽
310

710004681 Rear Harness

Rear Harness

8 740 ₽
408

293730040 Mount Dart

Mount Dart

100 ₽
479

293730018 Mount Dart. Commander MAX

Mount Dart. Commander MAX

140 ₽
600>600d

710005553 Speedometer. Package DPS, STD. Includes 600 to 600d

Speedometer. Package DPS, STD. Includes 600 to 600d

133 000 ₽
600>600d

710005653 Speedometer. Package Hunter, XT, XTP. Includes 600 to 600d

Speedometer. Package Hunter, XT, XTP. Includes 600 to 600d

39 450 ₽
600a

710001183 Trim Ring Ass'y. Package DPS, STD

Trim Ring Ass'y. Package DPS, STD

1 700 ₽
600a

415129348 Gauge Ring. Package Hunter, XT, XTP

Gauge Ring. Package Hunter, XT, XTP

4 310 ₽
600b

704904615 BRP Logo, 13 mm. Package DPS, STD

BRP Logo, 13 mm. Package DPS, STD

1 070 ₽
600c

715900265 Button. Package DPS, STD

Button. Package DPS, STD

4 970 ₽
600c

415129355 Speedometer Button. Package Hunter, XT, XTP

Speedometer Button. Package Hunter, XT, XTP

5 010 ₽
600d

415129349 Lens. Package Hunter, XT, XTP

Lens. Package Hunter, XT, XTP

12 080 ₽
700>700a

710002524 Low Beam Ass'y. Includes 700 to 700a

Low Beam Ass'y. Includes 700 to 700a

10 390 ₽
700a

415129249 Halogen Bulb

Halogen Bulb

22 160 ₽
701

710001081 RH Low Front Housing

RH Low Front Housing

5 670 ₽
702

710001082 RH Low Rear Housing

RH Low Rear Housing

3 890 ₽
703

710001094 RH Low Light Support

RH Low Light Support

3 010 ₽
704

710001083 LH Low Front Housing

LH Low Front Housing

5 670 ₽
705

710001084 LH Low Rear Housing

LH Low Rear Housing

3 890 ₽
706

710001037 LH Low Light Support

LH Low Light Support

3 010 ₽
707

250000723 Phillips Screw K40 X 16

Phillips Screw K40 X 16

350 ₽
708

710001147 Setting Screw

Setting Screw

4 970 ₽
710>710a

710002525 High Beam Ass'y. Includes 710 to 710a

High Beam Ass'y. Includes 710 to 710a

37 910 ₽
710a

415129249 Halogen Bulb

Halogen Bulb

22 160 ₽
711

710001085 RH High Front Housing

RH High Front Housing

1 830 ₽
712

710001086 RH High Rear Housing

RH High Rear Housing

3 890 ₽
713

710001115 RH High Light Support

RH High Light Support

1 770 ₽
714

710001087 LH High Front Housing

LH High Front Housing

5 670 ₽
715

710001088 LH High Rear Housing

LH High Rear Housing

3 890 ₽
716

710001036 LH High Light Support

LH High Light Support

1 770 ₽
717

207142544 Hex. Screw M4 X 25

Hex. Screw M4 X 25

710 ₽
718

234051410 Flat Washer M5

Flat Washer M5

190 ₽
719

232541414 Elastic Stop Nut M4

Elastic Stop Nut M4

210 ₽
740>740a

710001645 Tail Light. Includes 740 to 740a

Tail Light. Includes 740 to 740a

36 700 ₽
740a

520000758 Bulb

Bulb

7 670 ₽
741

241154540 Hex. Screw K50 X 45

Hex. Screw K50 X 45

190 ₽
800

710005732 Winch. Package Hunter & XT

Winch. Package Hunter & XT

57 270 ₽
801

205082044 Socket Head Screw M8 X 20. Package Hunter & XT

Socket Head Screw M8 X 20. Package Hunter & XT

390 ₽
802

234181401 Lock Washer 8 mm. Package Hunter & XT

Lock Washer 8 mm. Package Hunter & XT

340 ₽
810

715003523 Hook and Strap kit. Package Hunter & XT

Hook and Strap kit. Package Hunter & XT

3 170 ₽
815

710005142 Winch Cable Stopper. Package Hunter & XT

Winch Cable Stopper. Package Hunter & XT

700 ₽
820

710004822 Winch Cable Guide. Package Hunter & XT

Winch Cable Guide. Package Hunter & XT

4 330 ₽
821

205003044 Socket Screw M10 x 30. Package Hunter & XT

Socket Screw M10 x 30. Package Hunter & XT

1 120 ₽
822

233201414 Hex. Flanged Elastic Nut M10. Package Hunter & XT

Hex. Flanged Elastic Nut M10. Package Hunter & XT

810 ₽
835>835b

710001059 Connector Ass'y. Package Hunter & XT. Includes 835 to 835b

Connector Ass'y. Package Hunter & XT. Includes 835 to 835b

940 ₽
835a

278000281 Female Terminal Housing, 3 Circuits. Package Hunter & XT

Female Terminal Housing, 3 Circuits. Package Hunter & XT

910 ₽
835b

710000992 Clip. Package Hunter & XT

Clip. Package Hunter & XT

1 540 ₽
840

710005258 Winch Connector. Package Hunter & XT

Winch Connector. Package Hunter & XT

5 280 ₽
841

250000720 Torx Screw K50 X 16. Package Hunter & XT

Torx Screw K50 X 16. Package Hunter & XT

600 ₽
850

703500947 Solenoid. Package Hunter & XT

Solenoid. Package Hunter & XT

9 110 ₽
851

232561434 Elastic Stop Nut M6. Package Hunter & XT

Elastic Stop Nut M6. Package Hunter & XT

740 ₽
852

207151644 Hex. Screw M5 X 16. Package Hunter & XT

Hex. Screw M5 X 16. Package Hunter & XT

90 ₽
853

233251494 Elastic Flanged Nut M5. Package Hunter & XT

Elastic Flanged Nut M5. Package Hunter & XT

740 ₽
854

234051410 Flat Washer M5. Package Hunter & XT

Flat Washer M5. Package Hunter & XT

190 ₽
900>900a

410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900a

Battery Ass'y, 18 Amperes. Includes 900 to 900a

61 850 ₽
900a

250000282 Battery Bolt Kit

Battery Bolt Kit

2 650 ₽
905

710003602 Battery Rubber Pad. Commander MAX

Battery Rubber Pad. Commander MAX

1 130 ₽
910

710003129 Battery Support. Commander

Battery Support. Commander

4 370 ₽
911

234062410 Flat Washer 6 mm. Commander

Flat Washer 6 mm. Commander

210 ₽
912

233261414 Hex. Flanged Elastic Nut M6. Commander

Hex. Flanged Elastic Nut M6. Commander

490 ₽
920

710001916 Battery Holder

Battery Holder

2 480 ₽
926

233261414 Hex. Flanged Elastic Nut M6. Commander

Hex. Flanged Elastic Nut M6. Commander

490 ₽
927

207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Commander MAX

Hex. Flanged Screw M6 X 30, Scotch Grip. Commander MAX

740 ₽
928

250000957 Extruded Panel Nut M6 X 1.0. Commander MAX

Extruded Panel Nut M6 X 1.0. Commander MAX

170 ₽
930

710005568 Voltage Regulator

Voltage Regulator

12 630 ₽
931

207563034 Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip

740 ₽
932

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
933

234062670 Flat Washer, Stainless

Flat Washer, Stainless

740 ₽
940

710003582 Cap. Commander MAX

Cap. Commander MAX

940 ₽
1050a

710003269 Cap Protector

Cap Protector

1 130 ₽
1060a

219800128 Bulb

Bulb

280 ₽
1100

710001248 Outlet DC

Outlet DC

6 130 ₽
1200

710003335 Fuse Holder

Fuse Holder

850 ₽
1201

293150103 Black Pop Rivet 3/16''

Black Pop Rivet 3/16''

210 ₽
1210

270000141 Clip

Clip

990 ₽
1211

390402400 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
1213

710003006 Housing

Housing

810 ₽
1300

414227300 Clip

Clip

530 ₽
1400

278003012 Starter Relay. Commander MAX

Starter Relay. Commander MAX

36 190 ₽
1400

710001364 Starter Relay. Commander

Starter Relay. Commander

16 240 ₽
1401

234161601 Lock Washer Helical M6

Lock Washer Helical M6

390 ₽
1402

250000717 Torx Head Screw M6 X 16. Commander

Torx Head Screw M6 X 16. Commander

740 ₽
1403

232061600 Hex. Nut M6

Hex. Nut M6

110 ₽
1404

233261414 Hex. Flanged Elastic Nut M6. Commander

Hex. Flanged Elastic Nut M6. Commander

490 ₽
1410

250000717 Torx Head Screw M6 X 16. Commander MAX

Torx Head Screw M6 X 16. Commander MAX

740 ₽
1411

250000957 Extruded Panel Nut M6 X 1.0. Commander MAX

Extruded Panel Nut M6 X 1.0. Commander MAX

170 ₽
2000

293750008 Tie-Rap 350 mm. Not shown

Tie-Rap 350 mm. Not shown

370 ₽
2000

414115200 Tie-Rap 180 mm. Not shown

Tie-Rap 180 mm. Not shown

60 ₽
2000

293750009 Tie-Rap 173 mm. Not shown

Tie-Rap 173 mm. Not shown

100 ₽
