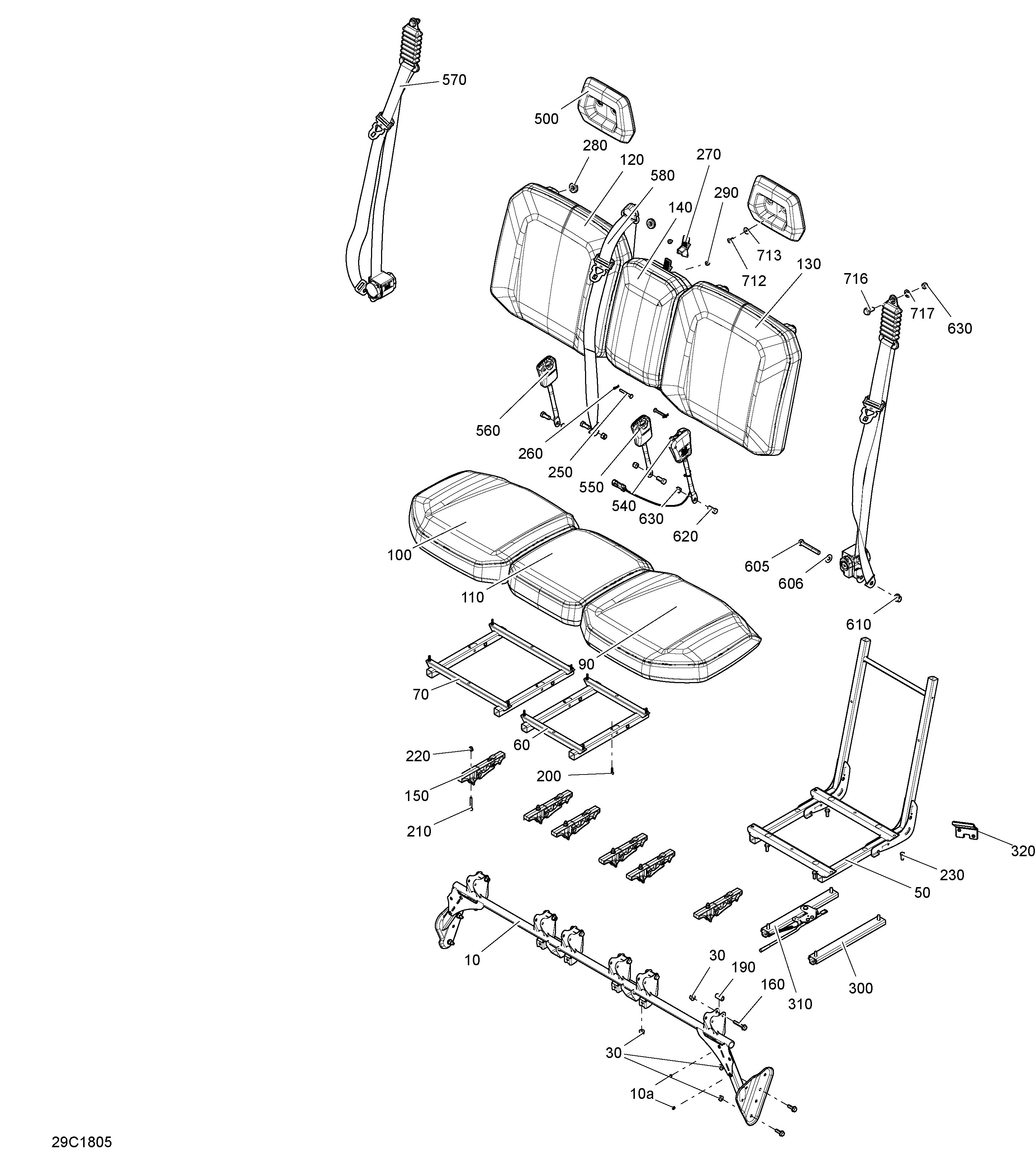

09- Seat Defender - Package XMR для BRP 5- Defender HD10 - XMR - 2018
-
№АртикулНазвание
-
10708002636 Seat Member. Includes 10 to 10aSeat Member. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50708001723 Operator Seat Member. Includes 50 to 50aOperator Seat Member. Includes 50 to 50a
-
50a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60708002527 Middle Seat FrameMiddle Seat Frame
-
70708002524 Seat FrameSeat Frame
-
90708002604 Seat Base Ass'y. Sunburst Yellow ModelsSeat Base Ass'y. Sunburst Yellow Models
-
90708002661 Seat Base Ass'y. Break Up Country Camo ModelsSeat Base Ass'y. Break Up Country Camo Models
-
100708002606 Seat Base Ass'y. Sunburst Yellow ModelsSeat Base Ass'y. Sunburst Yellow Models
-
100708002663 Seat Base Ass'y. Break Up Country Camo ModelsSeat Base Ass'y. Break Up Country Camo Models
-
110708002598 Seat Base Ass'y. Sunburst Yellow ModelsSeat Base Ass'y. Sunburst Yellow Models
-
110708002659 Seat Base Ass'y. Break Up Country Camo ModelsSeat Base Ass'y. Break Up Country Camo Models
-
120708002610 Backrest Ass'y. Sunburst Yellow ModelsBackrest Ass'y. Sunburst Yellow Models
-
120708002665 Backrest Ass'y. Break Up Country Camo ModelsBackrest Ass'y. Break Up Country Camo Models
-
130708002609 Backrest Ass'y. Sunburst Yellow Models. Includes 130 to 130aBackrest Ass'y. Sunburst Yellow Models. Includes 130 to 130a
-
130708002667 Backrest Ass'y. Break Up Country Camo Models. Includes 130 to 130aBackrest Ass'y. Break Up Country Camo Models. Includes 130 to 130a
-
130a293830005 Rubber BumperRubber Bumper
-
140708002602 Backrest Ass'y. Sunburst Yellow ModelsBackrest Ass'y. Sunburst Yellow Models
-
140708002668 Backrest Ass'y. Break Up Country Camo ModelsBackrest Ass'y. Break Up Country Camo Models
-
150708002581 Seat Base PivotSeat Base Pivot
-
160207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
190708001903 BushingBushing
-
200250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
210207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
220233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
250250400069 PinPin
-
260269800431 HairpinHairpin
-
270269501487 LatchLatch
-
280517303756 GrommetGrommet
-
290293830005 Rubber BumperRubber Bumper
-
300708000848 LH RailLH Rail
-
310708002001 RH RailRH Rail
-
320708002640 Seat StopperSeat Stopper
-
500708001721 Head RestHead Rest
-
540708002331 Driver BuckleDriver Buckle
-
550708002330 Middle BuckleMiddle Buckle
-
560708002329 Passenger BucklePassenger Buckle
-
570708002642 Safety BeltSafety Belt
-
580708002643 Safety BeltSafety Belt
-
605207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
606250200102 Flat Washer M12Flat Washer M12
-
610233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
620250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
630250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
712250000721 Torx ScrewTorx Screw
-
713250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
716708000890 Safety Belt ScrewSafety Belt Screw
-
717708000891 Position WasherPosition Washer
