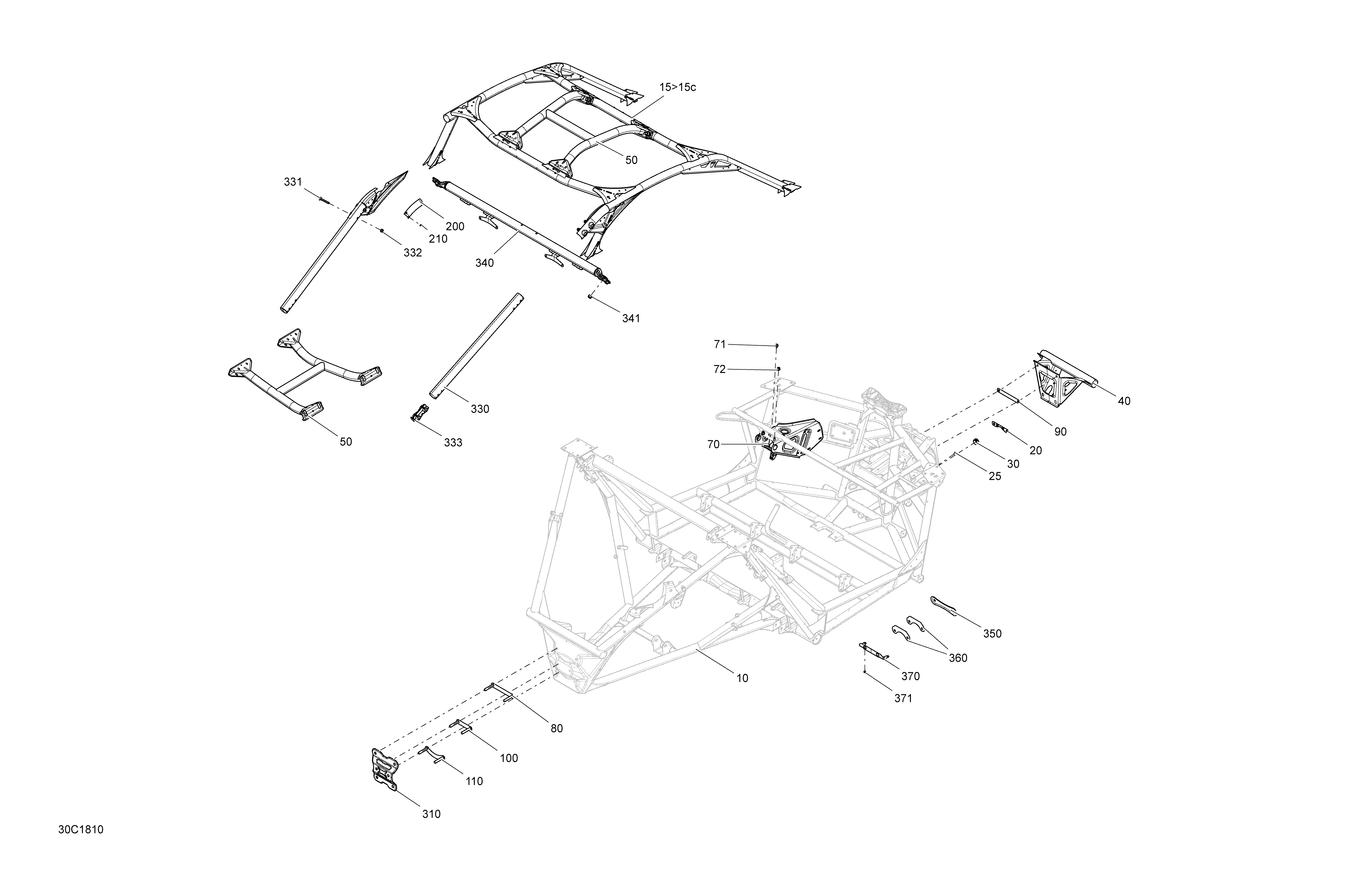

09- Frame Maverick X3 Non MAX для BRP 2- Maverick X3 Turbo - STD - 2018
-
№АртикулНазвание
-
10>15c715004465 Black Frame Kit. Black Frame ModelBlack Frame Kit. Black Frame Model
-
10>15c715004466 Red Frame Kit. Red Frame ModelRed Frame Kit. Red Frame Model
-
10>15c715005027 Blue Frame. Blue Frame ModelBlue Frame. Blue Frame Model
-
10>15c715005029 Yellow Frame Kit. Yellow Frame ModelYellow Frame Kit. Yellow Frame Model
-
15>15c715004463 Front Black Cage Kit. With Deep Black Cab. Includes 10 to 10cFront Black Cage Kit. With Deep Black Cab. Includes 10 to 10c
-
15>15c715004464 Front Red Cage Kit. With Can-Am Red Cab. Includes 10 to 10cFront Red Cage Kit. With Can-Am Red Cab. Includes 10 to 10c
-
15>15c715005034 Front Blue Cage Kit. With Blue Cab. Includes 10 to 10cFront Blue Cage Kit. With Blue Cab. Includes 10 to 10c
-
15>15c715005036 Front Yellow Cage Kit. With Yellow Cab. Includes 10 to 10cFront Yellow Cage Kit. With Yellow Cab. Includes 10 to 10c
-
15a250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
15b207523036 Hex. Flanged Screw S.Grip M12 X 30Hex. Flanged Screw S.Grip M12 X 30
-
15c233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
20705207424 E-Coat Front PlateE-Coat Front Plate
-
25207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
30250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
40705205746 Black Front Bumper. With Deep Black CabBlack Front Bumper. With Deep Black Cab
-
40705205747 Red Front Bumper. With Can-Am Red CabRed Front Bumper. With Can-Am Red Cab
-
50705206771 Painted Added Cage. With Can-Am Red CabPainted Added Cage. With Can-Am Red Cab
-
50705206774 Painted Added Cage. With Deep Black CabPainted Added Cage. With Deep Black Cab
-
70705206924 Painted DPS SupportPainted DPS Support
-
71207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
72233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
80705206852 E-Coat Front PlateE-Coat Front Plate
-
90705205564 Stifner PlateStifner Plate
-
100705206853 E-Coat Front PlateE-Coat Front Plate
-
110705206854 E-Coat Rear PlateE-Coat Rear Plate
-
200705205926 Black LH Link Plate. With Deep Black CabBlack LH Link Plate. With Deep Black Cab
-
200705205929 Red LH Link Plate. With Can-Am Red CabRed LH Link Plate. With Can-Am Red Cab
-
210293730076 Black DartBlack Dart
-
310705205750 Rear PlateRear Plate
-
330705205751 Black- Rear Mount. With Deep Black CabBlack- Rear Mount. With Deep Black Cab
-
330705205752 Red- Rear Mount. With Can-Am Red CabRed- Rear Mount. With Can-Am Red Cab
-
331250000901 Torx Truss M8 X 65Torx Truss M8 X 65
-
332250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
333705205634 SleeveSleeve
-
340705205268 Belt BarBelt Bar
-
341232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
350705205294 Upper Link ArmUpper Link Arm
-
360705205295 Lower Link ArmLower Link Arm
-
370706203122 SupportSupport
-
371390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
380705206069 Front Upper Plate. Not ShownFront Upper Plate. Not Shown
-
390705206511 Upper Plate Painted. Package STD, XDSDPS. Not ShownUpper Plate Painted. Package STD, XDSDPS. Not Shown
-
390705206511 Upper Plate Painted. Package XRSDPS. Not ShownUpper Plate Painted. Package XRSDPS. Not Shown
