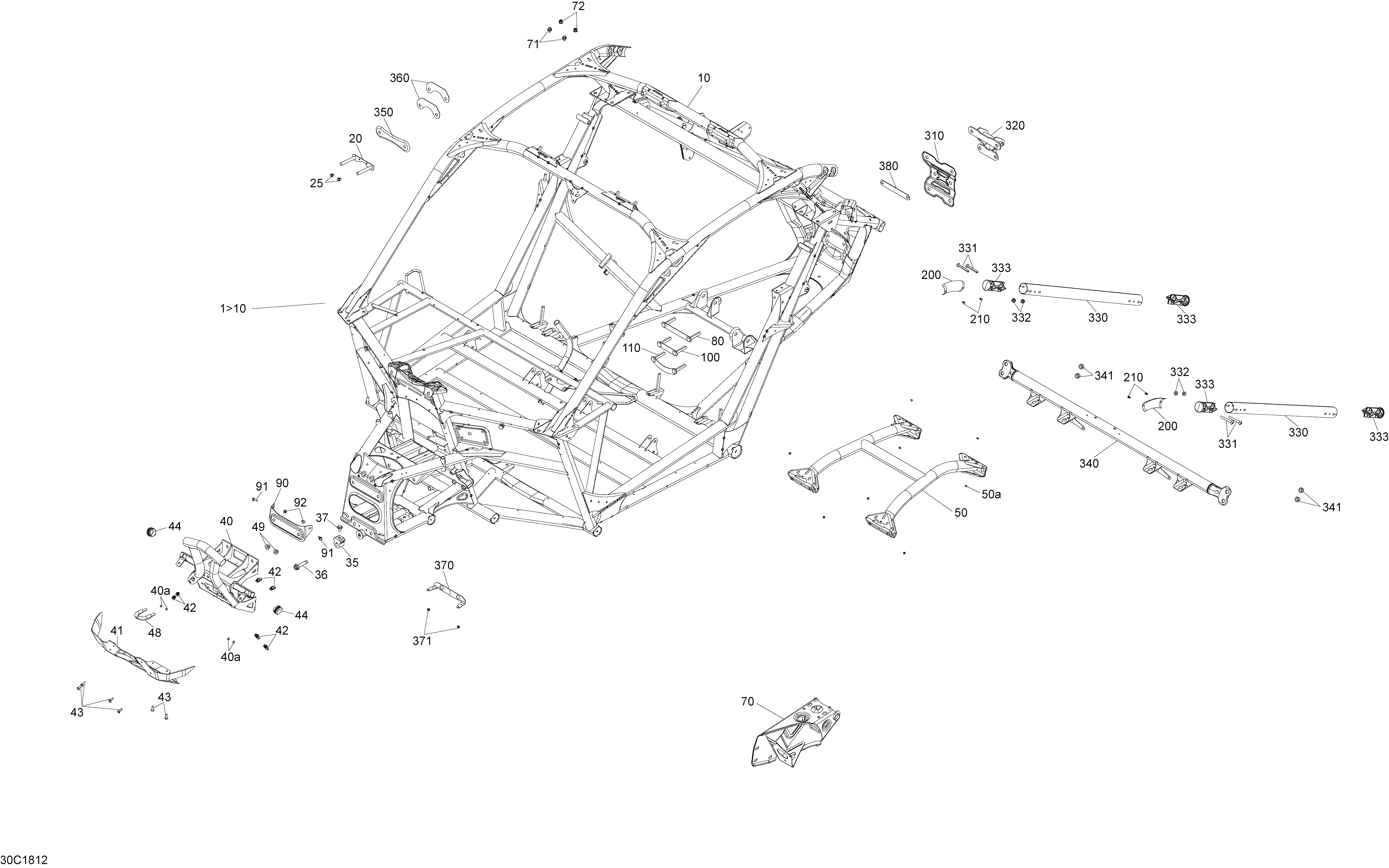

09- Frame XMR для BRP 3- Maverick X3 Turbo - XMR - 2018
-
№АртикулНазвание
-
1715004465 Black Frame KitBlack Frame Kit
-
10715004463 Front Black Cage Kit. Includes 10 to 10cFront Black Cage Kit. Includes 10 to 10c
-
10a250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
10b207523036 Hex. Flanged Screw S.Grip M12 X 30Hex. Flanged Screw S.Grip M12 X 30
-
10c233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
20705206851 E-Coat Front PlateE-Coat Front Plate
-
25207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
35705206992 Bumper LinkBumper Link
-
36250000987 Screw-Hex.Flange DIN.6921 M12X1.75Screw-Hex.Flange DIN.6921 M12X1.75
-
37250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
40705206869 Painted Yellow Sunburst Front Bumper. Includes 40 to 40aPainted Yellow Sunburst Front Bumper. Includes 40 to 40a
-
40a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41705206871 Front Master PlateFront Master Plate
-
42250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
43250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
44705202455 CapCap
-
48705206983 Painted U-ClampPainted U-Clamp
-
49233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
50705206721 Painted Added Cage. Includes 50 to 50aPainted Added Cage. Includes 50 to 50a
-
50a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
70705206924 Painted DPS SupportPainted DPS Support
-
71207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
80705206852 E-Coat Front PlateE-Coat Front Plate
-
90705205564 Stifner PlateStifner Plate
-
91207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
92233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
100705206853 E-Coat Front PlateE-Coat Front Plate
-
110705206854 E-Coat Rear PlateE-Coat Rear Plate
-
200705205926 Black LH Link PlateBlack LH Link Plate
-
210293730076 Black DartBlack Dart
-
310705205750 Rear PlateRear Plate
-
320705206865 Painted Rear Attachment HookPainted Rear Attachment Hook
-
330705205751 Black- Rear MountBlack- Rear Mount
-
331250000901 Torx Truss M8 X 65Torx Truss M8 X 65
-
332250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
333705205634 SleeveSleeve
-
340705205268 Belt BarBelt Bar
-
341232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
350705205294 Upper Link ArmUpper Link Arm
-
360705205295 Lower Link ArmLower Link Arm
-
370706203122 SupportSupport
-
371390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
380705206069 Front Upper PlateFront Upper Plate
