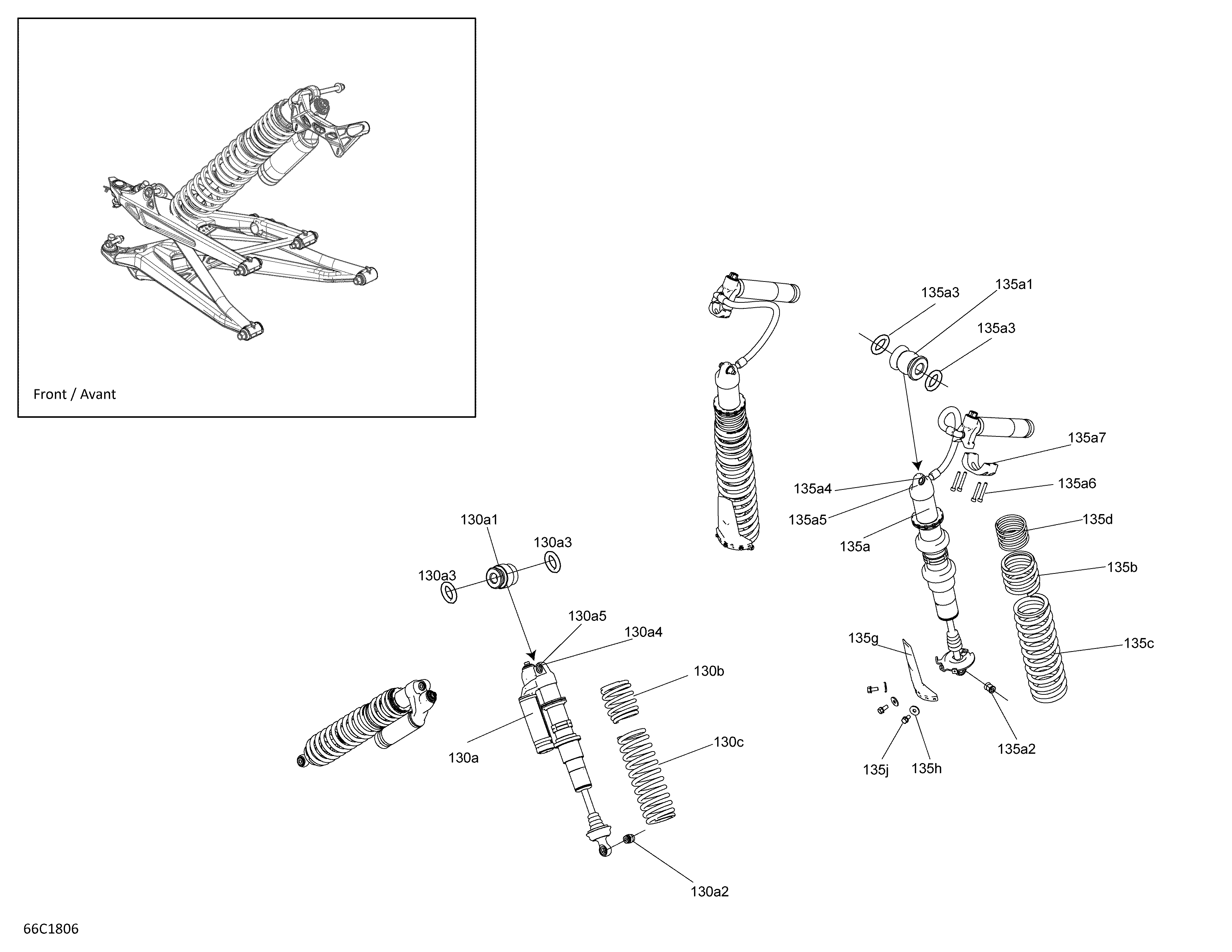

07- Shocks Maverick X3 - Turbo - XRC для BRP 4- Maverick X3 Turbo - XRC - 2018
-
№АртикулНазвание
-
130a706203318 RH Front Shock. Includes 130a to 130a5RH Front Shock. Includes 130a to 130a5
-
130a706203319 LH Front Shock. Includes 130a to 130a5LH Front Shock. Includes 130a to 130a5
-
130a1715900337 Spherical BearingSpherical Bearing
-
130a2715900482 BearingBearing
-
130a3715900338 O-Ring BushingO-Ring Bushing
-
130a4715900480 CirclipCirclip
-
130a5715900481 ReducerReducer
-
130b706203322 Gulfstream Blue Front SpringGulfstream Blue Front Spring
-
130c706203323 Gulfstream Blue Front SpringGulfstream Blue Front Spring
-
135a706003143 LH Rear Shock. Includes 135a to 135a5LH Rear Shock. Includes 135a to 135a5
-
135a706003144 RH Rear Shock. Includes 135a to 135a5RH Rear Shock. Includes 135a to 135a5
-
135a1715900337 Spherical BearingSpherical Bearing
-
135a2715900482 BearingBearing
-
135a3715900338 O-Ring BushingO-Ring Bushing
-
135a4715900480 CirclipCirclip
-
135a5715900481 ReducerReducer
-
135b706003147 Gulfstream Blue Rear SpringGulfstream Blue Rear Spring
-
135c706003148 Gulfstream Blue Rear SpringGulfstream Blue Rear Spring
-
135d706002560 Gulfstream Blue, Rear SpringGulfstream Blue, Rear Spring
-
135g706202215 ProtectorProtector
-
135h250200025 Washer M5Washer M5
-
135j210251150 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
