07- Wheels and Tires - Front and Rear - Package XMR для BRP 7- Maverick X3 Turbo R - XMR - 2018
-

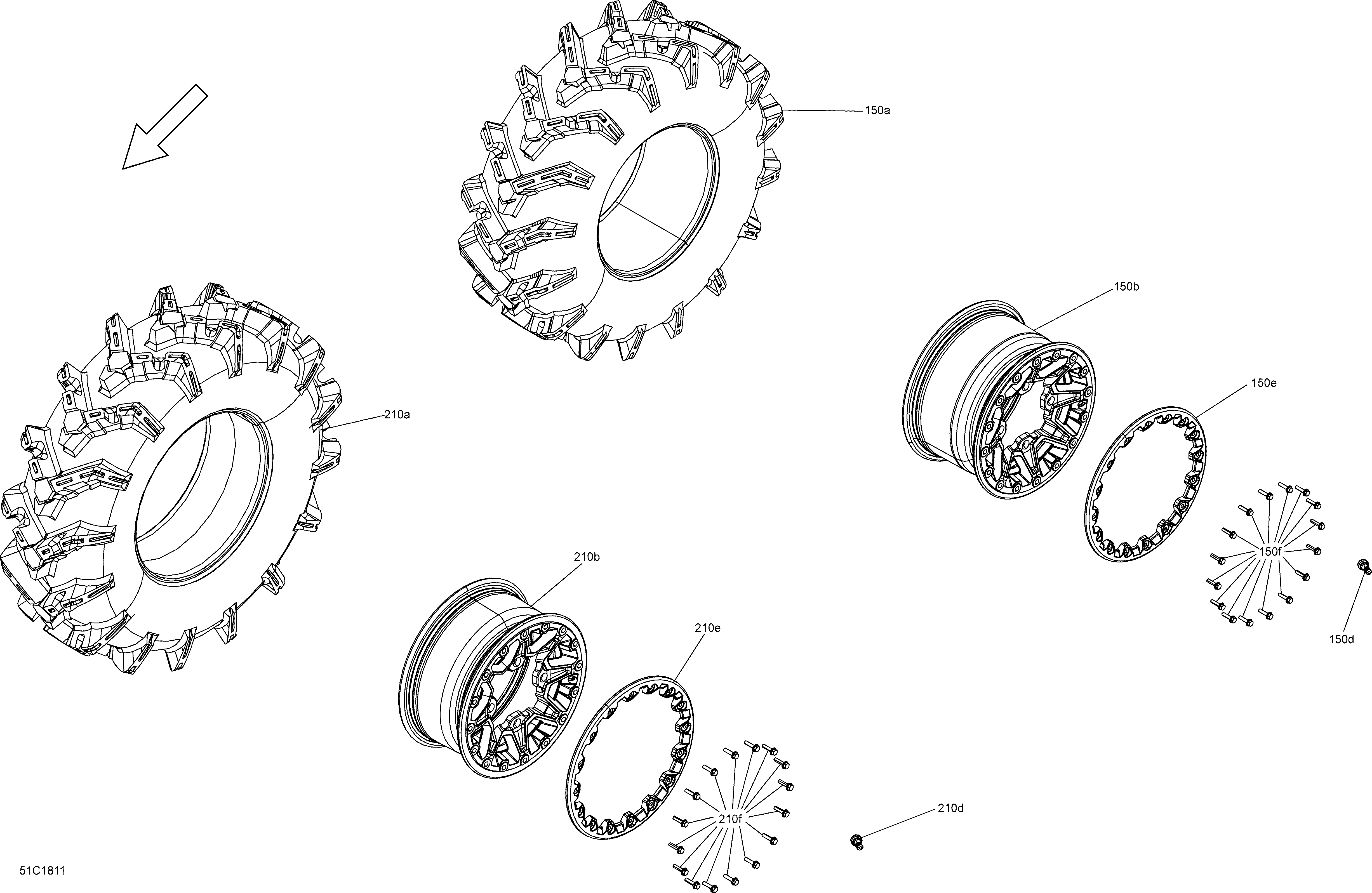

№АртикулНазвание
-
210a705402096 Front Tire Carlstar 30X9X14Front Tire Carlstar 30X9X14
-
210b705402207 Front Rim. Turbo R ModelFront Rim. Turbo R Model
-
210b705402256 Front Rim. Turbo ModelFront Rim. Turbo Model
-
210d705400193 Rim Valve With CapRim Valve With Cap
-
210e705401709 Black Reinforcement DiskBlack Reinforcement Disk
-
210f250000893 Screw Flanger M8 X 25Screw Flanger M8 X 25
-
150a705502621 Rear Tire Carlstar 30X11x14Rear Tire Carlstar 30X11x14
-
150b705402207 Rear Rim. Turbo R ModelRear Rim. Turbo R Model
-
150b705402256 Rear Rim. Turbo ModelRear Rim. Turbo Model
-
150d705400193 Rim Valve With CapRim Valve With Cap
-
150e705401709 Black Reinforcement DiskBlack Reinforcement Disk
-
150f250000893 Screw Flanger M8 X 25Screw Flanger M8 X 25
